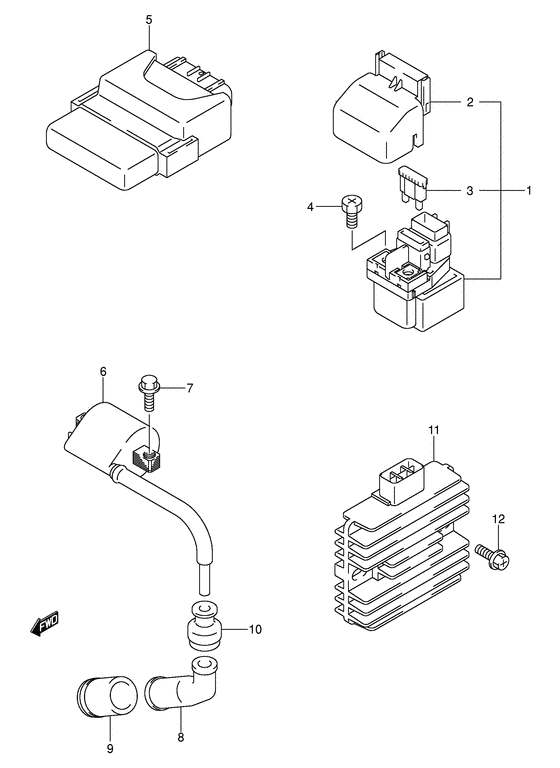

Electrical Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-03G00-000 RELAY ASSY,STARTING MOTOR |
31800-03G00-000 |
from US $130.40 |
||
|
2
|
2
31861-26E00-000 COVER,STARTER RELAYCover, starter relay; |
31861-26E00-000 |
from US $1.92 |
||
|
3
|
3
09481-30101-000 FUSE(30A)Fuse, 30a; |
09481-30101-000 |
from US $1.22 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Bolt, starting motor term; |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32900-09FA0-000 CDI UNIT |
32900-09FA0-000 |
from US $601.92 |
||
|
6
|
6
33410-09F00-000 COIL ASSY,IGNITIONCoil assy, ignition |
33410-09F00-000 |
from US $60.04 |
||
|
7
|
7
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
33510-43010-000 Cap,spark plugCap, spark plug Cap, spark plug; |
33510-43010-000 |
from US $19.73 |
||
|
9
|
9
33541-44D00-000 SEAL,SPARK PLUG |
33541-44D00-000 |
from US $4.93 |
||
|
10
|
10
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
11
|
11
32800-42F00-000 Rectifier Assy |
32800-42F00-000 |
from US $203.83 |
||
|
12
|
12
02162-06253-000
Bolt
|
02162-06253-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
