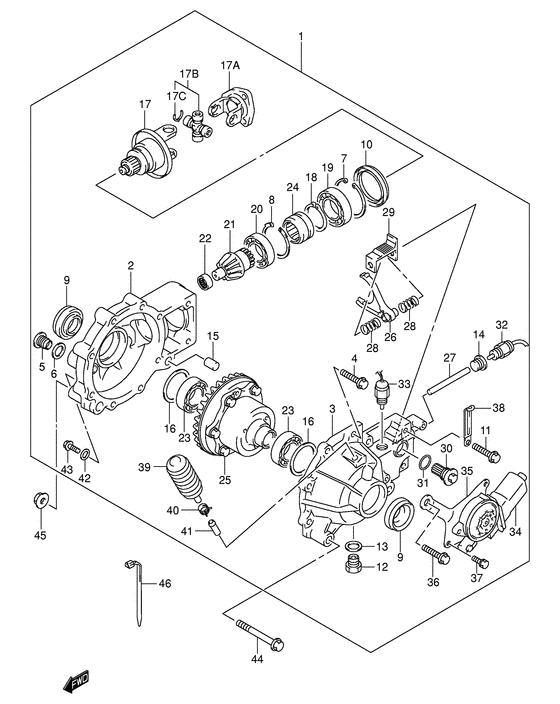

Final bevel gear (Front) Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27400-03G10-000
CASE ASSY,FR DIFFERENTIAL
|
27400-03G10-000 |
— | ||
| replacement | |||||
|
1
|
1
27400-03G13-000 CASE ASSY,FR DIFFERENTIAL |
27400-03G13-000 |
from US $1,693.46 |
||
|
2
|
2
27451-38FA0-000
Housing final drive, front
Housing final drive, front; |
27451-38FA0-000 |
— | ||
|
3
|
3
27461-03GA0-000 COVER,FINAL DRIVE FRCover final drive, front; |
27461-03GA0-000 |
US $202.40 |
||
|
4
|
4
27401-38FA0-000
Bolt (8x30)
Bolt (8x30); |
27401-38FA0-000 |
— | ||
| replacement | |||||
|
4
|
4
27401-38FA1-000 BOLT(8X25)Bolt (8x30); |
27401-38FA1-000 |
from US $2.31 |
||
|
5
|
5
27409-38FA0-000 PLUG |
27409-38FA0-000 |
from US $3.24 |
||
|
6
|
6
27407-38FA0-000
Washer
|
27407-38FA0-000 |
— | ||
| replacement | |||||
|
6
|
6
27407-31GA0-000 WASHER |
27407-31GA0-000 |
from US $1.69 |
||
|
7
|
7
27403-38FA0-000 RING SNAP |
27403-38FA0-000 |
from US $5.59 |
||
|
8
|
8
27403-38FB0-000 RING SNAP |
27403-38FB0-000 |
from US $5 |
||
|
9
|
9
27406-38FD0-000 SEAL,OIL |
27406-38FD0-000 |
from US $10.34 |
||
|
10
|
10
27406-38FB0-000 SEAL,OIL |
27406-38FB0-000 |
from US $13.24 |
||
|
11
|
11
27401-03GC0-000 BOLT(6X12)Bolt (6x12); |
27401-03GC0-000 |
from US $1.47 |
||
|
12
|
12
27409-38FB0-000 PLUG |
27409-38FB0-000 |
from US $4.55 |
||
|
13
|
13
27407-38FB0-000 WASHER |
27407-38FB0-000 |
from US $1.91 |
||
|
14
|
14
27409-03GA0-000
PLUG
|
27409-03GA0-000 |
— | ||
| replacement | |||||
|
14
|
14
27409-03GA1-000
Plug
|
27409-03GA1-000 |
— | ||
|
15
|
15
27404-38FA0-000
COLLAR
|
27404-38FA0-000 |
— | ||
|
16
|
16
27445-38FA0-000 SHIM SETT:0.70/0.75/0.80/0.85/0.90/0.95/, 1.00/1.05/1.10/1.15/1.20/1.25/, 1.30/1.35/1.40/1.45 |
27445-38FA0-000 |
from US $125.49 |
||
|
17
|
17
27130-03GA0-000 YOKE ASSY |
27130-03GA0-000 |
from US $129.95 |
||
|
17A
|
17A
27161-03G50-000 YOKE,PROP SHAFT JOINT FR |
27161-03G50-000 |
from US $142.78 |
||
|
17B
|
17B
27200-19810-000
JOINT SET,UNIVERSAL
Joint set, universal; |
27200-19810-000 |
— | ||
| replacement | |||||
|
17B
|
17B
27200-19811-000 JOINT SET,UNIVEJoint set, universal; |
27200-19811-000 |
US $80.36 |
||
|
17C
|
17C
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
18
|
18
27403-38FC0-000 RING,SNAPSnal ring Snap ring; |
27403-38FC0-000 |
from US $3.24 |
||
|
19
|
19
27405-38FA0-000 BEARING |
27405-38FA0-000 |
from US $39.10 |
||
|
20
|
20
27405-38FB0-000 BEARING |
27405-38FB0-000 |
from US $41.12 |
||
|
21
|
21
27311-03GA0-000
PINION,DRIVE
|
27311-03GA0-000 |
— | ||
|
22
|
22
27405-38FC0-000 BEARING |
27405-38FC0-000 |
US $11.51 |
||
|
23
|
23
27405-38FD0-000 BEARING |
27405-38FD0-000 |
from US $21.42 |
||
|
24
|
24
27371-38FA0-000
Sleeve
|
27371-38FA0-000 |
— | ||
| replacement | |||||
|
24
|
24
27371-31GA0-000 SLEEVE |
27371-31GA0-000 |
from US $49.68 |
||
|
25
|
25
27320-03GA0-000
GEAR ASSY
|
27320-03GA0-000 |
— | ||
|
26
|
26
27941-03GA0-000 FORK,SHIFT |
27941-03GA0-000 |
from US $55.94 |
||
|
27
|
27
27921-03GA0-000 ROD,SHIFT |
27921-03GA0-000 |
from US $8.35 |
||
|
28
|
28
27402-03GA0-000 SPRING,SHIFT |
27402-03GA0-000 |
from US $2.83 |
||
|
29
|
29
27911-03GA0-000 BRACKET,ROD |
27911-03GA0-000 |
US $47.57 |
||
|
30
|
30
27931-03GA0-000 GEAR,SHIFT |
27931-03GA0-000 |
from US $37.90 |
||
|
31
|
31
27406-03GA0-000
SEAL
|
27406-03GA0-000 |
— | ||
| replacement | |||||
|
31
|
31
27406-03GA1-000 Seal |
27406-03GA1-000 |
from US $1.91 |
||
|
32
|
32
27425-03GA0-000 SWITCH ASSY,2WD |
27425-03GA0-000 |
from US $73.97 |
||
|
33
|
33
27425-03GB0-000 SWITCH ASSY,4WD |
27425-03GB0-000 |
from US $73.97 |
||
|
34
|
34
27421-03GA0-000 DVC ASSY |
27421-03GA0-000 |
from US $408.32 |
||
|
35
|
35
27422-03GA0-000
Bracket, actuator
|
27422-03GA0-000 |
— | ||
| replacement | |||||
|
35
|
35
27420-03GA0-000
BRACKET SET,ACTUATOR
|
27420-03GA0-000 |
— | ||
|
36
|
36
27401-03GA0-000
BOLT(8X45)
Bolt (6x12); |
27401-03GA0-000 |
— | ||
|
37
|
37
27401-03GB0-000
Screw (5x12)
Screw (5x12); |
27401-03GB0-000 |
— | ||
|
38
|
38
27403-03GA0-000
CLIP
|
27403-03GA0-000 |
— | ||
|
39
|
39
27491-38F00-000 CASE,BREATHERBoots Case, breather; |
27491-38F00-000 |
US $25.71 |
||
| replacement | |||||
|
39
|
39
27491-38F10-000 Case,BreatherCase, breather; |
27491-38F10-000 |
US $24.97 |
||
|
40
|
40
09401-08411-000 CLIP |
09401-08411-000 |
from US $0.91 |
||
|
41
|
41
09364-08003-000 UNIONUnion, breather |
09364-08003-000 |
from US $4.28 |
||
|
42
|
42
27407-38FD0-000 WASHERWasher, level plug; |
27407-38FD0-000 |
from US $2.32 |
||
|
43
|
43
27409-38FC0-000 PLUG,LEVELPlug, level; |
27409-38FC0-000 |
from US $5.59 |
||
|
44
|
44
09103-10148-000 BOLT(10X110)Bolt (l:110) Bolt, front differential; |
09103-10148-000 |
from US $8.36 |
||
|
45
|
45
08319-31107-000 NUTNut, front differential; |
08319-31107-000 |
from US $1.98 |
||
|
46
|
46
09407-19401-000 CLAMP(L:190)Clamp (l:190); |
09407-19401-000 |
from US $4.17 |
||
