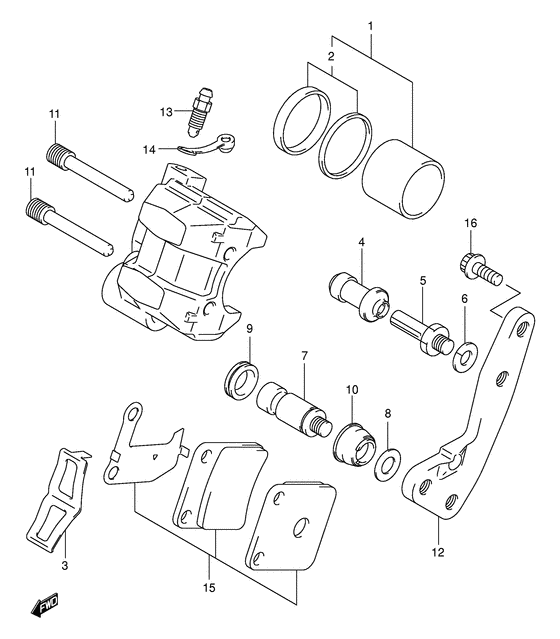

Front caliper Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
59100-38F30-999 CALIPER ASSY,FR |
59100-38F30-999 |
from US $271.85 |
||
|
|
59300-38F30-999 CALIPER ASSY,FR |
59300-38F30-999 |
from US $271.85 |
||
|
1
|
1
59100-38850-000 PISTON SET |
59100-38850-000 |
from US $34.96 |
||
|
2
|
2
59100-38860-000 SEAL SET,PISTON |
59100-38860-000 |
from US $11.04 |
||
|
3
|
3
59315-13A00-000 SPRING,PADSpring, pad Spring, pad; |
59315-13A00-000 |
from US $5.28 |
||
|
4
|
4
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $3.65 |
||
|
5
|
5
59382-13A00-000 BOLT,PINPin; |
59382-13A00-000 |
from US $2.66 |
||
|
6
|
6
59314-13A00-000 WASHER,WAVE |
59314-13A00-000 |
from US $0.99 |
||
|
7
|
7
59105-38F00-000 PIN,SLIDE |
59105-38F00-000 |
from US $10.67 |
||
|
8
|
8
59306-13A00-000 SPRING,FRICTION |
59306-13A00-000 |
from US $1.62 |
||
|
9
|
9
59384-13A00-000 DUST SEALSeal, dust Seal, dust; |
59384-13A00-000 |
from US $2.98 |
||
|
10
|
10
59303-13A00-000 BOOT,PIN |
59303-13A00-000 |
from US $3.04 |
||
|
11
|
11
59345-00B20-000 PIN,HOLDER |
59345-00B20-000 |
from US $8.46 |
||
|
12
|
12
59151-38F00-000 BRACKET,R |
59151-38F00-000 |
from US $27.78 |
||
|
12
|
12
59351-38F00-000 BRACKET,L |
59351-38F00-000 |
from US $27.78 |
||
|
13
|
13
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $11.76 |
||
|
14
|
14
59122-01A00-000 CAP,BLEEDER |
59122-01A00-000 |
from US $1.76 |
||
|
15
|
15
59101-38810-000 PAD & SHIM SETPad & shim set, rh; |
59101-38810-000 |
from US $63.77 |
||
|
15
|
15
59101-38820-000 PAD & SHIM SETPad & shim set, lh; |
59101-38820-000 |
from US $65.01 |
||
|
16
|
16
07120-08163-000
Bolt
Bolt (8x16); |
07120-08163-000 |
— | ||
| replacement | |||||
|
16
|
16
07120-0816A-000 BoltBolt (8x16); |
07120-0816A-000 |
from US $1.12 |
||
