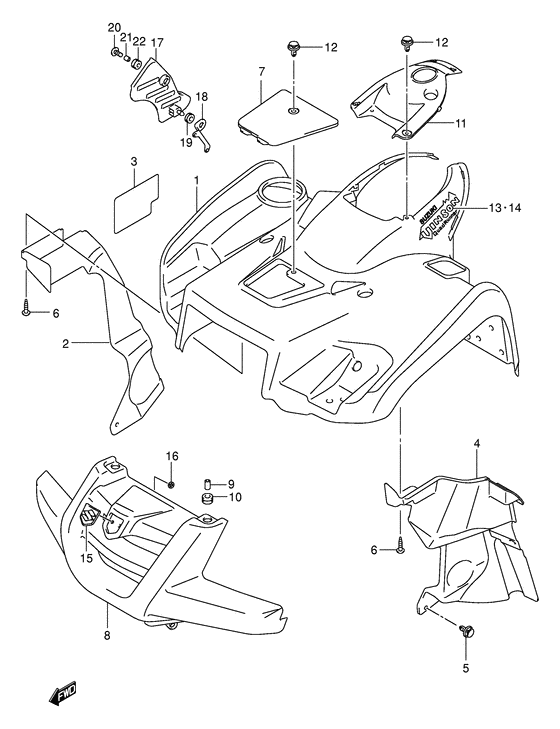

Front fender Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-03G20-YU1
Fender, front (yellow)
Fender, front (yellow); |
53111-03G20-YU1 |
— | ||
| replacements | |||||
|
1
|
1
02142-0520B-000 SCREWScrew, rear Fender, front (yellow); |
02142-0520B-000 |
from US $0.76 |
||
|
1
|
1
09159-05019-000 NUTFender, front (yellow); |
09159-05019-000 |
from US $2.28 |
||
|
1
|
1
09160-05046-000 WASHER(5.5X20X1.4)Fender, front (yellow); |
09160-05046-000 |
from US $3.20 |
||
|
1
|
1
53111-03G21-YU1
FENDER,FR
Fender, front (yellow); |
53111-03G21-YU1 |
— | ||
|
1
|
1
53111-03G20-YT8
Fender, front (green)
Fender, front (green); |
53111-03G20-YT8 |
— | ||
| replacement | |||||
|
1
|
1
53111-03G21-YT8 (ca) fender, frFender, front (green); |
53111-03G21-YT8 |
US $236.60 |
||
|
1
|
1
53111-03G20-YT9
Fender, front (red)
Fender, front (red); |
53111-03G20-YT9 |
— | ||
| replacements | |||||
|
1
|
1
02142-0520B-000 SCREWScrew, rear Fender, front (red); |
02142-0520B-000 |
from US $0.76 |
||
|
1
|
1
09159-05019-000 NUTFender, front (red); |
09159-05019-000 |
from US $2.28 |
||
|
1
|
1
09160-05046-000 WASHER(5.5X20X1.4)Fender, front (red); |
09160-05046-000 |
from US $3.20 |
||
|
1
|
1
53111-03G21-YT9
FENDER,FR
Fender, front (red); |
53111-03G21-YT9 |
— | ||
|
2
|
2
53410-03G01-000
Mudflap, inner rh
|
53410-03G01-000 |
— | ||
| replacement | |||||
|
2
|
2
53410-03G02-000
MUDFLAP,FENDER INNER,R
|
53410-03G02-000 |
— | ||
|
3
|
3
63268-09F00-000 SHIELD,RR FENDER NO.6 |
63268-09F00-000 |
from US $7.73 |
||
|
4
|
4
53421-03G00-000
Mudflap, inner lh
|
53421-03G00-000 |
— | ||
| replacements | |||||
|
4
|
4
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
4
|
4
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
4
|
4
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
5
|
5
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
6
|
6
03241-15163-000
Screw, side panel
Screw, inner; |
03241-15163-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-1516A-000 SCREWScrew, cover rear Screw, inner; |
03241-1516A-000 |
from US $0.76 |
||
|
7
|
7
53341-03G00-YU1 Lid (yellow)Lid (yellow); |
53341-03G00-YU1 |
US $18.57 |
||
| replacement | |||||
|
7
|
7
53341-03G01-YU1
LID,FR FENDER
Lid (yellow); |
53341-03G01-YU1 |
— | ||
|
7
|
7
53341-03G00-YT8
Lid (green)
Lid (green); |
53341-03G00-YT8 |
— | ||
| replacement | |||||
|
7
|
7
53341-03G01-YT8
LID,FR FENDER
Lid (green); |
53341-03G01-YT8 |
— | ||
|
7
|
7
53341-03G00-YT9
Lid (red)
Lid (red); |
53341-03G00-YT9 |
— | ||
| replacement | |||||
|
7
|
7
53341-03G01-YT9
LID,FR FENDER
Lid (red); |
53341-03G01-YT9 |
— | ||
|
8
|
8
53118-03G00-291
GRILE,FR
Grille, front (black); |
53118-03G00-291 |
— | ||
|
9
|
9
09180-08188-000 SPACER(8.5X12X7.5) |
09180-08188-000 |
from US $1.52 |
||
|
10
|
10
09320-12011-000
CUSHION
|
09320-12011-000 |
— | ||
| replacement | |||||
|
10
|
10
09320-12090-000 Cushion(11.8X25X7.5) |
09320-12090-000 |
from US $1.67 |
||
|
11
|
11
53119-03G00-YU1
Fender, center (yellow)
Fender, center (yellow); |
53119-03G00-YU1 |
— | ||
| replacement | |||||
|
11
|
11
53119-03G01-YU1
FENDER,CTR
Fender, center (yellow); |
53119-03G01-YU1 |
— | ||
|
11
|
11
53119-03G00-YT8
Fender, center (green)
Fender, center (green); |
53119-03G00-YT8 |
— | ||
| replacement | |||||
|
11
|
11
53119-03G01-YT8
FENDER,CTR
Fender, center (green); |
53119-03G01-YT8 |
— | ||
|
11
|
11
53119-03G00-YT9
Fender, center (red)
Fender, center (red); |
53119-03G00-YT9 |
— | ||
| replacement | |||||
|
11
|
11
53119-03G01-YT9
FENDER,CTR
Fender, center (red); |
53119-03G01-YT9 |
— | ||
|
12
|
12
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
13
|
13
68151-03G00-YBP
EMBLEM,FR FENDER,R
For yu1 |
68151-03G00-YBP |
— | ||
|
13
|
13
68151-03G00-YBR EMBLEM,FR FENDER,RFor yt8 |
68151-03G00-YBR |
from US $31.65 |
||
|
13
|
13
68151-03G00-YBS
EMBLEM,FR FENDER,R
For yt9 |
68151-03G00-YBS |
— | ||
|
14
|
14
68152-03G00-YBP EMBLEM,FR FENDER,LFor yu1 |
68152-03G00-YBP |
from US $34.96 |
||
|
14
|
14
68152-03G00-YBR
EMBLEM,FR FENDER,L
For yt8 |
68152-03G00-YBR |
— | ||
|
14
|
14
68152-03G00-YBS
EMBLEM,FR FENDER,L
For yt9 |
68152-03G00-YBS |
— | ||
|
15
|
15
68151-38F00-000 EMBLEM,SEmblem, front; |
68151-38F00-000 |
from US $23.18 |
||
|
16
|
16
09148-05006-000 NUT |
09148-05006-000 |
from US $0.74 |
||
|
17
|
17
53441-03GF0-000
GUARD,MUF SIDE
|
53441-03GF0-000 |
— | ||
|
18
|
18
53451-03GF0-000
BRACKET,GUARD MUFFLER SIDE
|
53451-03GF0-000 |
— | ||
|
19
|
19
09320-09016-000 CUSHIONCushion, holder Cushion, upper; |
09320-09016-000 |
from US $1.04 |
||
|
20
|
20
09136-06081-000 SCREW(6X20) |
09136-06081-000 |
from US $0.77 |
||
|
21
|
21
09180-06263-000 SPACER(6.5X9X9) |
09180-06263-000 |
from US $1.52 |
||
|
22
|
22
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.49 |
||
