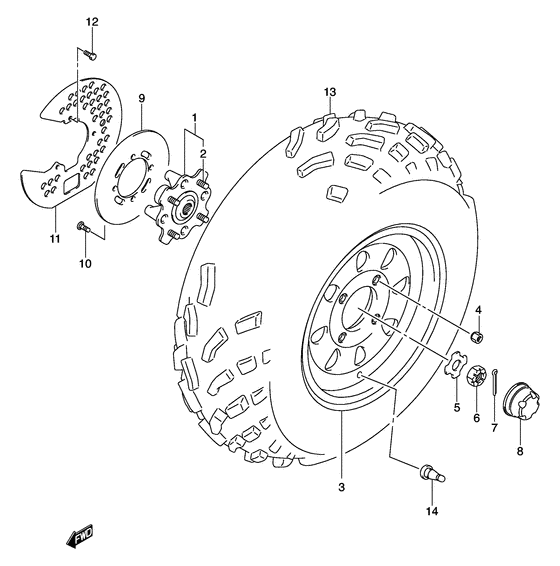

Front wheel Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-03G00-000
Hub, front wheel
|
54110-03G00-000 |
— | ||
| replacement | |||||
|
1
|
1
54110-03G10-000 HUB,FR WHEEL |
54110-03G10-000 |
US $209.76 |
||
|
2
|
2
09119-10049-000
Bolt (10x30)
Bolt (10x30); |
09119-10049-000 |
— | ||
| replacement | |||||
|
2
|
2
09119-10049-XC0 BOLTBolt (10x30); |
09119-10049-XC0 |
from US $2.24 |
||
|
3
|
3
55311-03G00-12Z
RIM,FR WHEEL(12X6.0AT)
Rim, front wheel (12x6.5at) (silver); |
55311-03G00-12Z |
— | ||
|
4
|
4
09140-10021-000 NUT |
09140-10021-000 |
from US $1.67 |
||
|
5
|
5
64723-09F00-000 WASHER,HUB |
64723-09F00-000 |
from US $6.51 |
||
|
6
|
6
09141-18010-000 NUTNut, hub; |
09141-18010-000 |
from US $13.63 |
||
|
7
|
7
04111-40408-000
Pin, cotter
Pin, cotter; |
04111-40408-000 |
— | ||
| replacement | |||||
|
7
|
7
04111-4040A-000 PINPin, cotter; |
04111-4040A-000 |
from US $0.80 |
||
|
8
|
8
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
9
|
9
59211-38F00-000
Disc, front brake
|
59211-38F00-000 |
— | ||
| replacement | |||||
|
9
|
9
59211-38F20-000 DISC,FR BRAKE |
59211-38F20-000 |
US $63.09 |
||
|
10
|
10
09106-08155-000 BOLT(8X20)Bolt, brake disc Bolt, brake disc; |
09106-08155-000 |
from US $1.33 |
||
|
11
|
11
59231-38F00-000
Cover, front disc
|
59231-38F00-000 |
— | ||
| replacement | |||||
|
11
|
11
59231-38F01-000
COVER,FR DISC
|
59231-38F01-000 |
— | ||
|
12
|
12
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
13
|
13
55110-03G00-000
Tire, front (at25x8-12) (dunlo
Tire, front (at25x8-12) (dunlop); |
55110-03G00-000 |
— | ||
| replacement | |||||
|
13
|
13
55110-03G20-000 TIRE,FRTire, front (at25x8-12) (dunlop); |
55110-03G20-000 |
from US $724.80 |
||
|
14
|
14
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
