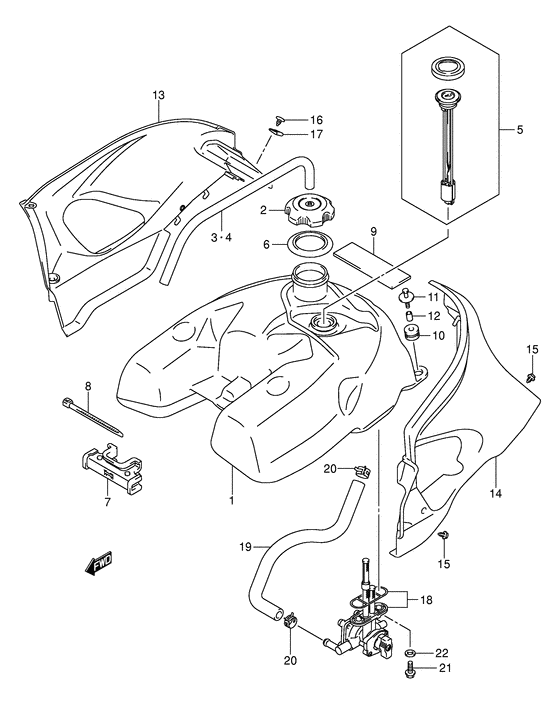

Fuel tank Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-03GF0-000
TANK ASSY,FUEL
|
44100-03GF0-000 |
— | ||
|
2
|
2
44200-29F00-000
CAP ASSY,FUEL TANK FILLER
|
44200-29F00-000 |
— | ||
| replacement | |||||
|
2
|
2
44200-29F01-000 Cap Assy,fuel Tank Filler |
44200-29F01-000 |
from US $37.90 |
||
|
3
|
3
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->90); |
09352-50823-600 |
— | ||
| replacements | |||||
|
3
|
3
44420-44AR0-000 HOSE SET,FUELHose, breather (l:600->90); |
44420-44AR0-000 |
US $11.95 |
||
|
3
|
3
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->90); |
09352-50005-600 |
US $4.10 |
||
|
4
|
4
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->20); |
09352-50823-600 |
— | ||
| replacements | |||||
|
4
|
4
44420-44AR0-000 HOSE SET,FUELHose, breather (l:600->20); |
44420-44AR0-000 |
US $11.95 |
||
|
4
|
4
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->20); |
09352-50005-600 |
US $4.10 |
||
|
5
|
5
44580-03G01-000
Gauge assy, fuel level
|
44580-03G01-000 |
— | ||
| replacement | |||||
|
5
|
5
44580-03G02-000
GAUGE ASSY,FUEL LEVEL
|
44580-03G02-000 |
— | ||
|
6
|
6
44261-38F00-000 RUBBER,FUEL TANK INLET |
44261-38F00-000 |
from US $8.61 |
||
|
7
|
7
44511-03G00-000
CUSHION,FUEL TANK FR
|
44511-03G00-000 |
— | ||
| replacement | |||||
|
7
|
7
44511-03G01-000 Cushion,fuel Tank Fr |
44511-03G01-000 |
from US $14.68 |
||
|
8
|
8
09407-14407-000 CLAMP(L:145)Band Clamp; |
09407-14407-000 |
from US $2.08 |
||
|
9
|
9
47451-38A01-000 CUSHION,TOOL HOLDERCushion, no.2 |
47451-38A01-000 |
from US $2.39 |
||
|
10
|
10
44281-03G00-000 CUSHION,FUEL TANK RRCushion, rear; |
44281-03G00-000 |
from US $3.31 |
||
|
11
|
11
09116-06190-000 BOLT(6X25) |
09116-06190-000 |
from US $3.57 |
||
|
12
|
12
09180-06293-000 SPACER(6.5X10X14) |
09180-06293-000 |
from US $1.92 |
||
|
13
|
13
44271-03G02-291
Cover, tank rh (black)
Cover, tank rh (black); |
44271-03G02-291 |
— | ||
| replacement | |||||
|
13
|
13
44271-03G03-291
COVER,FUEL TANK SIDE,R(BLACK)
Cover, tank rh (black); |
44271-03G03-291 |
— | ||
|
14
|
14
44272-03GF0-291 COVER,FUEL TANK SIDE,LCover, tank lh (black); |
44272-03GF0-291 |
US $40.42 |
||
|
15
|
15
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
16
|
16
03241-15163-000
Screw, side panel
|
03241-15163-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-1516A-000 SCREWScrew, cover rear |
03241-1516A-000 |
from US $0.76 |
||
|
17
|
17
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
18
|
18
44300-03G01-000
Cock assy, fuel
|
44300-03G01-000 |
— | ||
| replacements | |||||
|
18
|
18
44300-03G02-000
COCK ASSY,FUEL
|
44300-03G02-000 |
— | ||
|
18
|
18
44300-03G03-000 Cock Assy,fuel |
44300-03G03-000 |
from US $104.88 |
||
|
19
|
19
44421-03GF0-000
Hose, fuel
|
44421-03GF0-000 |
— | ||
| replacement | |||||
|
19
|
19
44421-03GF1-000 HOSE,FUEL |
44421-03GF1-000 |
from US $15.79 |
||
|
20
|
20
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
21
|
21
01547-06163-000
Bolt (green)
|
01547-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
22
|
22
09168-06026-000 GASKET(6.4X11.5X0.8) |
09168-06026-000 |
from US $0.91 |
||
