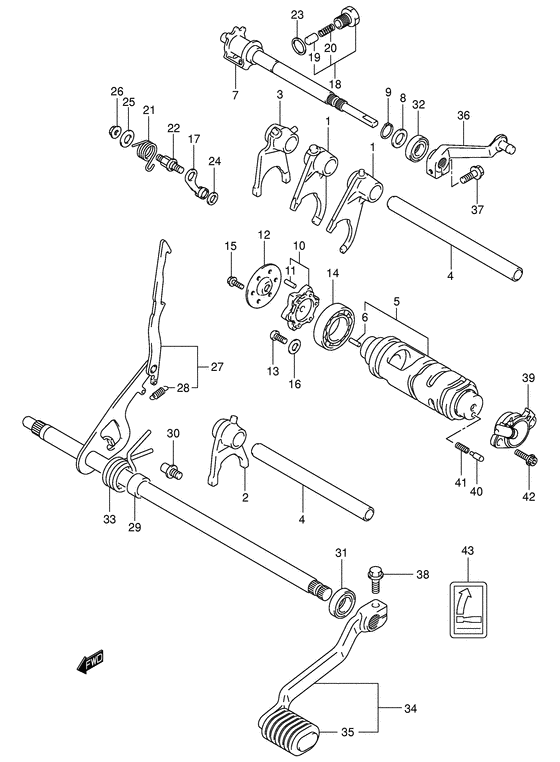

Gear shifting Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25221-03G50-000 FORK,GEAR SHIFT NO.2 |
25221-03G50-000 |
from US $51.52 |
||
|
2
|
2
25231-44D00-000 FORK,GEAR SHIFT NO.3 |
25231-44D00-000 |
from US $64.77 |
||
|
3
|
3
25241-44D00-000
FORK,GEAR SHIFT REVERSE
|
25241-44D00-000 |
— | ||
|
4
|
4
25411-38B01-000 SHAFT,GEAR SHIFT FORK(L:152)Shaft, gear shift fork |
25411-38B01-000 |
from US $14.57 |
||
|
5
|
5
25310-03G50-000 CAM,GEAR SHIFT |
25310-03G50-000 |
from US $134.32 |
||
|
6
|
6
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
7
|
7
25320-03G50-000 CAM,REVERSE SHIFT |
25320-03G50-000 |
from US $40.48 |
||
|
8
|
8
08211-12203-000 WASHERWasher, reverse shift cam Washer, reverse shift; |
08211-12203-000 |
from US $3.47 |
||
|
9
|
9
08331-31126-000
Circlip
Circlip, reverse shift; |
08331-31126-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-3112A-000 CIRCLIPCirclip, reverse shift; |
08331-3112A-000 |
from US $0.91 |
||
|
10
|
10
25380-44D00-000 PLATE,GEAR SHIFT CAM |
25380-44D00-000 |
US $17 |
||
|
11
|
11
09261-04002-000 ROLLER(4X13.8)Pin |
09261-04002-000 |
from US $0.91 |
||
|
12
|
12
25382-44D00-000 GUIDE,GEAR SHIFT CAM PLATE PINGuide, gear shift cam; |
25382-44D00-000 |
from US $3.39 |
||
|
13
|
13
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw, cam brg retainer (6x12); |
09125-06110-000 |
from US $1.52 |
||
|
14
|
14
09262-25006-000 BEARING(25X47X8)Bearing (25x47x8) Bearing, gear shift cam; 25x47x8.0 |
09262-25006-000 |
from US $14.08 |
||
|
15
|
15
01500-06203-000
Bolt
Bolt, gear shift cam; |
01500-06203-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0620A-000 BOLTBolt, gear shift cam; |
01500-0620A-000 |
from US $0.76 |
||
|
16
|
16
08211-06165-000 WASHERRetainer, gr Retainer, shift cam; |
08211-06165-000 |
US $15.50 |
||
|
17
|
17
25350-26D01-000 STOPPER,GEAR SHIFT CAMStopper, shift cam Stopper, gear shift cam; |
25350-26D01-000 |
from US $10.08 |
||
|
18
|
18
25350-38F50-000 STOPPER,SUB T/M SHIFT CAM |
25350-38F50-000 |
from US $17.30 |
||
|
19
|
19
25351-38F50-000 STOPPER |
25351-38F50-000 |
from US $6 |
||
|
20
|
20
29613-38F50-000 SPRING |
29613-38F50-000 |
from US $2.58 |
||
|
21
|
21
25355-03G50-000 SPRING,GEAR SHIFT CAM STOPPER |
25355-03G50-000 |
from US $3.24 |
||
|
22
|
22
25356-12C00-000 SUPPORT,CAM STOPPER ARMSupport, cam stopper Support, gear shift cam; |
25356-12C00-000 |
from US $7.84 |
||
|
23
|
23
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket, cam stopper; |
09168-14002-000 |
— | ||
| replacement | |||||
|
23
|
23
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket, cam stopper; |
09168-14004-000 |
from US $1.22 |
||
|
24
|
24
08211-06141-000 WASHERWasher Washer, gear shift cam; |
08211-06141-000 |
from US $2.52 |
||
|
25
|
25
08211-06181-000 WASHERWasher, cam stopper; |
08211-06181-000 |
from US $1.12 |
||
|
26
|
26
08316-10063-000
Nut
Nut, cam stopper; |
08316-10063-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1006B-000 NUTNut, cam stopper; |
08316-1006B-000 |
from US $0.76 |
||
|
27
|
27
25510-03G50-000
Shaft, gear shift
|
25510-03G50-000 |
— | ||
| replacement | |||||
|
27
|
27
25510-03G51-000 SHAFT,GEAR SHIFT |
25510-03G51-000 |
from US $84.64 |
||
|
28
|
28
09443-06074-000 SPRING |
09443-06074-000 |
from US $7.06 |
||
|
29
|
29
25516-44D00-000 SPACER,GEAR SHIFT SHAFT |
25516-44D00-000 |
US $5.19 |
||
|
30
|
30
25671-36A00-000 STOPPER,GEAR SHIFT ARMStopper, gear shit Stopper, gear shift; |
25671-36A00-000 |
from US $2.58 |
||
|
31
|
31
09283-14006-000 SEAL,OIL(14X22X6)Oil seal gear shift; 14x22x6 |
09283-14006-000 |
from US $3.74 |
||
|
32
|
32
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) Oil seal, reverse shift; |
09285-12006-000 |
from US $2.58 |
||
|
33
|
33
09444-26025-000 SPRINGSpring, gear return; |
09444-26025-000 |
from US $5.22 |
||
|
34
|
34
25600-03G50-000 LEVER ASSY,GEAR SHIFT |
25600-03G50-000 |
US $64.47 |
||
|
35
|
35
25652-24401-000 RUBBER,GEAR SHIFT PEDALCover Rubber; |
25652-24401-000 |
US $8.08 |
||
|
36
|
36
25640-03G50-000
ARM,REVERSE GEAR SHIFT
|
25640-03G50-000 |
— | ||
|
37
|
37
01550-06203-000
Bolt
Bolt, reverse gear; |
01550-06203-000 |
— | ||
| replacement | |||||
|
37
|
37
01550-0620B-000 BOLTBolt, inspection cap Bolt, reverse gear; |
01550-0620B-000 |
from US $0.76 |
||
|
38
|
38
01550-06203-000
Bolt
Bolt, gear shift lever; |
01550-06203-000 |
— | ||
| replacement | |||||
|
38
|
38
01550-0620B-000 BOLTBolt, inspection cap Bolt, gear shift lever; |
01550-0620B-000 |
from US $0.76 |
||
|
39
|
39
37720-03G10-000 BASE ASSY,GEAR SHIFT TERMINAL |
37720-03G10-000 |
from US $73.97 |
||
|
40
|
40
09209-05011-000 PIN(5X15.5)Contact Contact; |
09209-05011-000 |
from US $1.51 |
||
|
41
|
41
09440-04010-000 SPRINGSpring; |
09440-04010-000 |
from US $1.06 |
||
|
42
|
42
07120-05163-000
Bolt
|
07120-05163-000 |
— | ||
| replacement | |||||
|
42
|
42
07120-0516B-000 BOLT |
07120-0516B-000 |
from US $4 |
||
|
43
|
43
68392-24210-000 LABEL,GEAR SHIFT PATTERNLabel, gear shift Label, gear shift pattern; |
68392-24210-000 |
from US $1.62 |
||
|
43
|
43
68392-24220-000 LABEL,GEAR SHIFT PATTERNLabel, gear shift pattern Label, gear shift pattern; E28 |
68392-24220-000 |
from US $1.60 |
||
