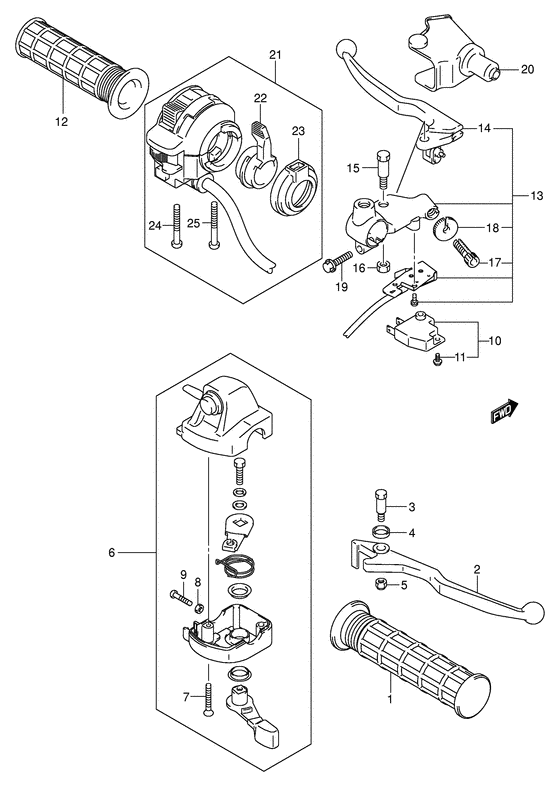

Handle lever Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-22A01-291 GRIPGrip (black) Grip (black); |
57211-22A01-291 |
from US $13.87 |
||
|
2
|
2
57421-39D10-000 LEVER,FR BRAKELever, brake Lever, brake; |
57421-39D10-000 |
from US $37.60 |
||
|
3
|
3
09111-06075-000 BOLT(6X28)Bolt |
09111-06075-000 |
from US $9.84 |
||
|
4
|
4
57349-38F00-000 SPACER,MASTER CYLINDER |
57349-38F00-000 |
US $4.20 |
||
|
5
|
5
57433-09F00-000 NUT,LEVER PIVOT |
57433-09F00-000 |
from US $2.13 |
||
|
6
|
6
57100-03G10-000
CASE ASSY,THROTTLE
|
57100-03G10-000 |
— | ||
|
7
|
7
02132-05307-000 SCREW |
02132-05307-000 |
from US $2.04 |
||
|
8
|
8
08310-00053-000
Nut
Nut; |
08310-00053-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0005A-000 NUTNut; |
08310-0005A-000 |
from US $0.80 |
||
|
9
|
9
09125-05066-000 SCREW(5X25) |
09125-05066-000 |
from US $0.81 |
||
|
10
|
10
57460-17C00-000
Switch assy, stop
Switch assy, stop; |
57460-17C00-000 |
— | ||
| replacements | |||||
|
10
|
10
57460-14J01-000
SWITCH ASSY,FR BRAKE
Switch assy, stop; |
57460-14J01-000 |
— | ||
|
10
|
10
57460-14J02-000 Switch Assy,stopSwitch assy, stop; |
57460-14J02-000 |
US $51.90 |
||
|
11
|
11
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
12
|
12
57211-22A01-291 GRIPGrip (black) Grip (black); |
57211-22A01-291 |
from US $13.87 |
||
|
13
|
13
57500-38F00-000
Lever assy, rear brake
|
57500-38F00-000 |
— | ||
| replacements | |||||
|
13
|
13
57500-38F01-000
LEVER ASSY,RR BRAKE
|
57500-38F01-000 |
— | ||
|
13
|
13
57500-38F02-000 Lever Assy,rr Brake |
57500-38F02-000 |
US $133.22 |
||
|
14
|
14
57620-38810-000
Lever set, brake
|
57620-38810-000 |
— | ||
| replacement | |||||
|
14
|
14
57620-38811-000 LEVER SET,CLUTCH |
57620-38811-000 |
from US $25.48 |
||
|
15
|
15
57431-45C01-000 BOLT,LEVER PIVOTBolt, pivot Bolt, pivot; |
57431-45C01-000 |
US $14.21 |
||
| replacement | |||||
|
15
|
15
57431-21D11-000 BOLT,LEVER PIVOTBolt, lever pivot Bolt, pivot; |
57431-21D11-000 |
from US $5.63 |
||
|
16
|
16
08319-21063-000
Nut
|
08319-21063-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
17
|
17
57441-08C00-000
ADJUSTER,WIRE
Adjuster, cable; |
57441-08C00-000 |
— | ||
| replacement | |||||
|
17
|
17
57441-08C01-000 Adjuster,wireAdjuster, cable; |
57441-08C01-000 |
from US $6.92 |
||
|
18
|
18
57442-08C00-000
NUT,LOCK
|
57442-08C00-000 |
— | ||
| replacement | |||||
|
18
|
18
57442-08C01-000 Nut,lock |
57442-08C01-000 |
from US $6.66 |
||
|
19
|
19
01547-06203-000
Bolt (6x20)
|
01547-06203-000 |
— | ||
| replacement | |||||
|
19
|
19
01547-0620B-000 BOLT |
01547-0620B-000 |
from US $0.76 |
||
|
20
|
20
57541-03G00-000 COVER,BRAKE LEVERCover, brake level Cover, brake lever; |
57541-03G00-000 |
from US $8.70 |
||
|
21
|
21
37400-09F00-000
Switch assy, lh
|
37400-09F00-000 |
— | ||
| replacement | |||||
|
21
|
21
37400-09F02-000 SWITCH ASSY,HANDLE,L |
37400-09F02-000 |
from US $121.44 |
||
|
22
|
22
37571-19B01-000 LEVER,CHOKE |
37571-19B01-000 |
US $16.39 |
||
|
23
|
23
37576-19B01-000 COVER,CHOKE |
37576-19B01-000 |
from US $4.05 |
||
|
24
|
24
02112-05407-000 SCREW |
02112-05407-000 |
from US $2.99 |
||
|
25
|
25
02112-05457-000 SCREW |
02112-05457-000 |
from US $0.77 |
||
