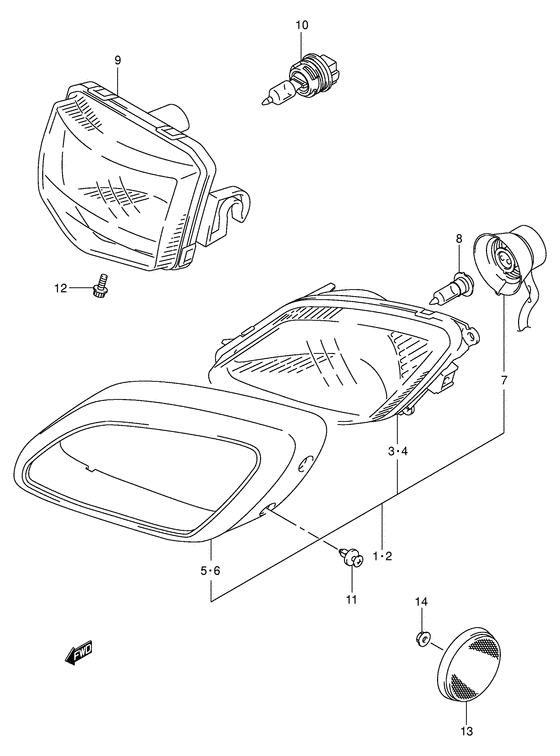

Headlamp Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-03G00-999
Headlamp assy, rh
|
35100-03G00-999 |
— | ||
| replacement | |||||
|
1
|
1
35100-03G60-999 HEADLAMP ASSY,R |
35100-03G60-999 |
from US $167.44 |
||
|
2
|
2
35300-03G00-999
Headlamp assy, lh
|
35300-03G00-999 |
— | ||
| replacement | |||||
|
2
|
2
35300-03G60-999 HEADLAMP ASSY,L |
35300-03G60-999 |
US $304.76 |
||
|
3
|
3
35121-03G00-000 UNIT,R |
35121-03G00-000 |
from US $116.66 |
||
|
4
|
4
35321-03G00-000 UNIT,L |
35321-03G00-000 |
from US $116.66 |
||
|
5
|
5
35127-03G00-000 RIM,R |
35127-03G00-000 |
from US $20.06 |
||
|
6
|
6
35327-03G00-000 RIM,L |
35327-03G00-000 |
from US $20.06 |
||
|
7
|
7
35171-03G00-000
Cord assy
|
35171-03G00-000 |
— | ||
| replacement | |||||
|
7
|
7
35171-03G01-000 CORD ASSY |
35171-03G01-000 |
from US $10.80 |
||
|
8
|
8
09471-12097-000 BULB(14V30/30W,BF130-03800A) |
09471-12097-000 |
from US $14.44 |
||
| replacement | |||||
|
8
|
8
09471-12093-000 BULB(12V30/30W,STANLEY 03300A) |
09471-12093-000 |
from US $39.64 |
||
|
9
|
9
35100-03GA1-999 HEADLAMP ASSY |
35100-03GA1-999 |
US $173.38 |
||
|
10
|
10
09471-12207-000 BULB(12V40/40W)Bulb (12v,40/40w); |
09471-12207-000 |
from US $69.33 |
||
|
11
|
11
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
12
|
12
07120-05163-000
Bolt
|
07120-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
07120-0516B-000 BOLT |
07120-0516B-000 |
from US $4 |
||
|
13
|
13
35950-14A00-000 REFLECTOR,REFLEX FRReflex-reflector assy, fr Reflex reflector assy, front; E28 |
35950-14A00-000 |
from US $21.60 |
||
|
14
|
14
08316-10053-000
Nut
E28 |
08316-10053-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1005A-000 NUTE28 |
08316-1005A-000 |
from US $0.77 |
||
