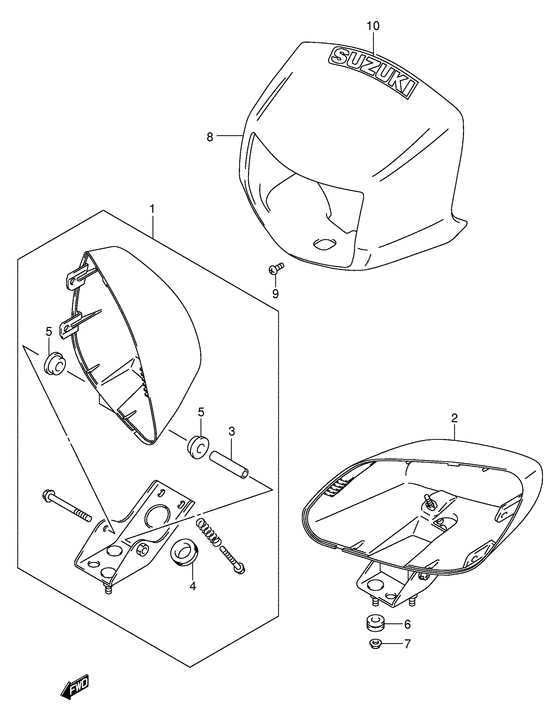

Headlamp housing Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51800-03G50-000 HOUSING ASSY,HEADLAMP,R |
51800-03G50-000 |
from US $68.08 |
||
|
2
|
2
51800-03G60-000 HOUSING ASSY,HEADLAMP,L |
51800-03G60-000 |
US $124.10 |
||
|
3
|
3
09180-06281-000 SPACER(6.5X9X45.9) |
09180-06281-000 |
from US $9.84 |
||
|
4
|
4
09320-09013-000
Cushion
|
09320-09013-000 |
— | ||
|
5
|
5
09320-20008-000 CUSHIONCushion filter Cushion, bracket; |
09320-20008-000 |
from US $5.88 |
||
|
6
|
6
09320-10501-000 CUSHIONCushion; |
09320-10501-000 |
from US $1.76 |
||
|
7
|
7
08319-31063-000
Nut
|
08319-31063-000 |
— | ||
| replacement | |||||
|
7
|
7
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
8
|
8
56311-03G00-YU1 COVER,HANDLE FRCover, handle front (yellow); |
56311-03G00-YU1 |
US $38.08 |
||
|
8
|
8
56311-03G00-YT8
Cover, handle front (green)
Cover, handle front (green); |
56311-03G00-YT8 |
— | ||
|
8
|
8
56311-03G00-YT9 COVER,HANDLE FRCover, handle front (red); |
56311-03G00-YT9 |
from US $46.74 |
||
|
9
|
9
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
10
|
10
68171-44B00-HW1 EMBLEMFor yu1 |
68171-44B00-HW1 |
US $14.33 |
||
|
10
|
10
68171-44B00-HV6
EMBLEM
For yt8 |
68171-44B00-HV6 |
— | ||
|
10
|
10
68171-44B00-HV5 EMBLEMEmblem, front lower For yt9 |
68171-44B00-HV5 |
from US $6.88 |
||
