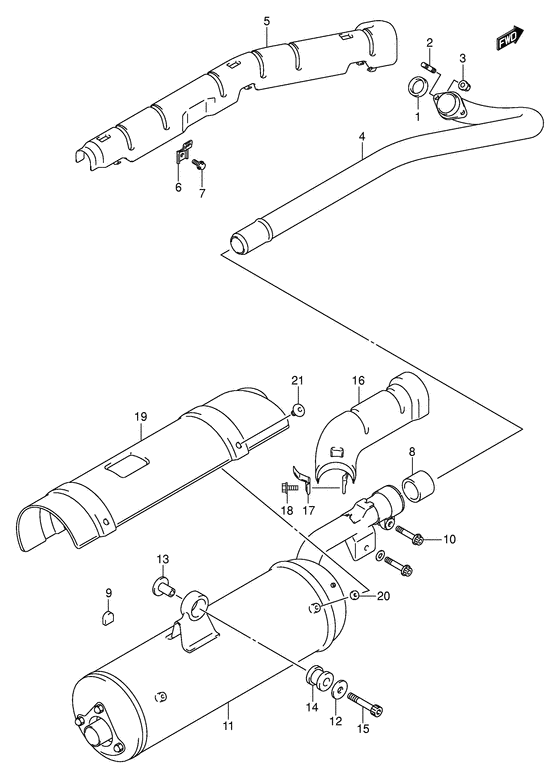

Muffler Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-18C00-000 GASKET,EXHAUSTGasket, exhaust pipe Gasket, exhaust pipe; |
14181-18C00-000 |
from US $4.10 |
||
|
2
|
2
01421-08253-000
Stud bolt, no.2
Stud bolt; |
01421-08253-000 |
— | ||
| replacement | |||||
|
2
|
2
01421-0825A-000 BOLT,STUDStud bolt; |
01421-0825A-000 |
from US $1.12 |
||
|
3
|
3
08319-31083-000
Nut
|
08319-31083-000 |
— | ||
| replacement | |||||
|
3
|
3
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
4
|
4
14150-03GF0-000 PIPE,EXHAUST |
14150-03GF0-000 |
from US $77.28 |
||
|
5
|
5
14180-03GF0-000
COVER,EXHAUST PIPE FR
|
14180-03GF0-000 |
— | ||
|
6
|
6
14185-03G00-000
Clamp
|
14185-03G00-000 |
— | ||
|
7
|
7
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
7
|
7
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
14771-13E00-000
CONNECTOR,MUFFLER
Connector, muffler; |
14771-13E00-000 |
— | ||
| replacement | |||||
|
8
|
8
14771-13E10-000 Connector,mufConnector, muffler; |
14771-13E10-000 |
from US $14.43 |
||
|
9
|
9
14795-06F00-000 GROMMET,2ND MUFFLER COVER |
14795-06F00-000 |
US $4.38 |
||
|
10
|
10
07120-08403-000
Bolt
|
07120-08403-000 |
— | ||
| replacement | |||||
|
10
|
10
07120-0840A-000 BOLT |
07120-0840A-000 |
from US $1.44 |
||
|
11
|
11
14310-03G01-000
Body, muffler
|
14310-03G01-000 |
— | ||
| replacement | |||||
|
11
|
11
14300-03810-000
Muffler set
|
14300-03810-000 |
— | ||
|
12
|
12
09160-08503-000 WASHER(8.5X30X2.3)Washer, muffler support Washer, muffler support; |
09160-08503-000 |
from US $1.60 |
||
|
13
|
13
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer, muffler support; |
09180-08152-000 |
from US $2.74 |
||
|
14
|
14
09320-12048-000 CUSHIONCushion, muffler support; |
09320-12048-000 |
from US $4.64 |
||
|
15
|
15
07120-08453-000
Bolt
Bolt, muffler support; |
07120-08453-000 |
— | ||
| replacement | |||||
|
15
|
15
07120-0845B-000 BOLTBolt, muffler support; |
07120-0845B-000 |
from US $6.26 |
||
|
16
|
16
08319-31083-000
Nut
Nut, muffler support; |
08319-31083-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-3108A-000 NUTNut, muffler support; |
08319-3108A-000 |
from US $1.67 |
||
|
17
|
17
14790-03G00-000
COVER,MUFFLER FR
|
14790-03G00-000 |
— | ||
|
18
|
18
14185-03G00-000
Clamp
|
14185-03G00-000 |
— | ||
|
19
|
19
01550-06163-000
Bolt
Bolt, clamp; |
01550-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0616B-000 BOLTBolt, clamp; |
01550-0616B-000 |
from US $0.76 |
||
|
19
|
19
01550-0616A-000 BOLTBolt, clamp; |
01550-0616A-000 |
from US $0.76 |
||
|
20
|
20
14880-03GF0-000
Cover, muffler rear
|
14880-03GF0-000 |
— | ||
|
21
|
21
09168-06120-000 GASKET(5.8X13X1.4)Gasket, muffler cover Gasket, muffler cover; |
09168-06120-000 |
from US $0.91 |
||
|
22
|
22
09139-06027-000 SCREW(6X12)Screw, muffler cover; |
09139-06027-000 |
from US $1.82 |
||
|
23
|
23
09106-08133-000 BOLT(8X35)Bolt, exhaust support |
09106-08133-000 |
from US $1.98 |
||
|
24
|
24
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support Washer, exhaust support; |
09160-08135-000 |
from US $0.95 |
||
|
25
|
25
09180-08151-000 SPACER(8.6X12X17.5)Spacer, exhaust support Spacer, exhaust support; |
09180-08151-000 |
from US $2.89 |
||
|
26
|
26
09320-12043-000 CUSHIONCushion, exhaust support Cushion, exhaust support; |
09320-12043-000 |
from US $7.45 |
||
