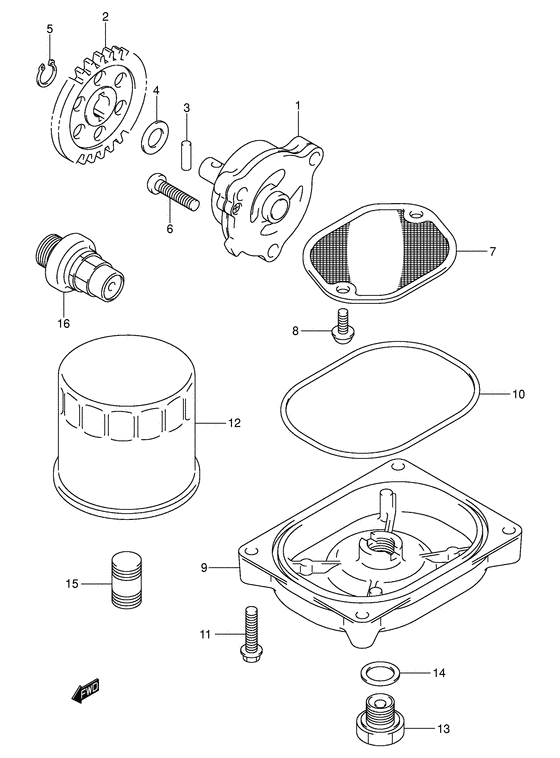

Oil pump Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-44D00-000 PUMP ASSY,ENGINE OIL |
16400-44D00-000 |
from US $110.03 |
||
|
2
|
2
16331-02F00-000 GEAR,OIL PUMP DRIVENGear, driven Gear, driven (nt:29); |
16331-02F00-000 |
from US $32.94 |
||
|
3
|
3
09261-04009-000 PIN(4X15.8)Pin Pin; |
09261-04009-000 |
from US $0.84 |
||
|
4
|
4
08221-10185-000 SHIMWasher; |
08221-10185-000 |
from US $0.98 |
||
|
5
|
5
08331-31106-000
Circlip
|
08331-31106-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31109-000 CIRCLIP |
08331-31109-000 |
from US $0.96 |
||
|
6
|
6
09125-06035-000 SCREW(6X25)Bolt |
09125-06035-000 |
from US $3.04 |
||
|
7
|
7
16520-24500-000 Strainer,engineStrainer, engine oil |
16520-24500-000 |
US $8.77 |
||
| replacement | |||||
|
7
|
7
16520-27H00-000 STRAINER,ENGINE OIL |
16520-27H00-000 |
from US $5.19 |
||
|
8
|
8
02112-75123-000
Screw
Screw; |
02112-75123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7512A-000 SCREWScrew; |
02112-7512A-000 |
from US $3.83 |
||
|
9
|
9
16523-24501-000 CAP,OIL STRAINERCap, oil strainer Cap, oil strainer; |
16523-24501-000 |
US $36.31 |
||
|
10
|
10
16528-24500-000 O RING |
16528-24500-000 |
US $14.74 |
||
|
11
|
11
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0625B-000 BOLT |
01547-0625B-000 |
from US $0.91 |
||
|
12
|
12
16510-03G00-000
Filter, engine oil
Filter, engine oil; |
16510-03G00-000 |
— | ||
| replacement | |||||
|
12
|
12
16510-07J00-000 FILTER ASSY,ENGINE OILFilter, engine oil; |
16510-07J00-000 |
US $17.46 |
||
|
13
|
13
09247-14002-000 PLUG(MAGNETO)Plug, drain Plug, drain; |
09247-14002-000 |
from US $2.43 |
||
|
14
|
14
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket; |
09168-14002-000 |
— | ||
| replacement | |||||
|
14
|
14
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
15
|
15
16591-06B00-000
Union
Union, oil filter; |
16591-06B00-000 |
— | ||
| replacement | |||||
|
15
|
15
16591-06B01-000 UNION,OIL STANDUnion, oil filter; |
16591-06B01-000 |
from US $5.60 |
||
|
16
|
16
16440-17C10-000 VALVE ASSY,OIL RELIEF |
16440-17C10-000 |
from US $69.60 |
||
