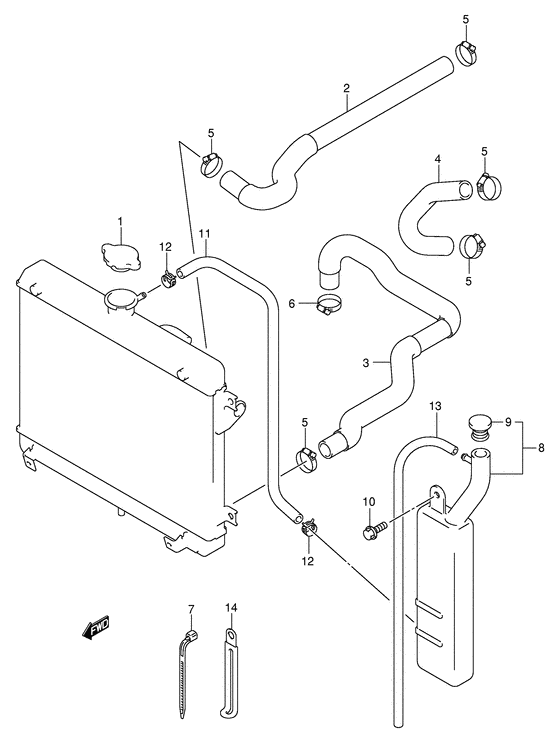

Radiator hose Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17730-12C20-000
Cap
Cap, radiator; |
17730-12C20-000 |
— | ||
| replacement | |||||
|
1
|
1
17730-08J00-000 CAP,RADIATORCap, radiator; |
17730-08J00-000 |
from US $14.90 |
||
|
2
|
2
17851-03GF0-000 HOSE,RADIATOR INLET |
17851-03GF0-000 |
from US $35.70 |
||
|
3
|
3
17852-03GF0-000 HOSE,RADIATOR OUTLET |
17852-03GF0-000 |
from US $49.68 |
||
|
4
|
4
17854-09F00-000 HOSE,WATER PUMP OUTLET |
17854-09F00-000 |
US $17 |
||
|
5
|
5
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
6
|
6
09402-38511-000 CLAMP |
09402-38511-000 |
from US $4.06 |
||
|
7
|
7
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp, water hose (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
8
|
8
17910-03G00-000 Tank Assy,reservoir |
17910-03G00-000 |
from US $46 |
||
|
9
|
9
17932-12C00-000 CAP,RESERVOIR TANKCap, reservoir tank Cap, reservoir tank; |
17932-12C00-000 |
from US $5.92 |
||
|
10
|
10
09116-06168-000 BOLT(6X16)Bolt, front |
09116-06168-000 |
from US $0.98 |
||
|
11
|
11
17981-42E00-000
Hose, tank overflow
|
17981-42E00-000 |
— | ||
| replacement | |||||
|
11
|
11
17900-27810-000 HOSE SET,RESERVOIR TANK INLET |
17900-27810-000 |
from US $14.08 |
||
|
12
|
12
09401-08411-000 CLIPClip; |
09401-08411-000 |
from US $0.91 |
||
|
13
|
13
09352-50901-600 HOSE(5X9X600)Hose, lubrication no.2 Hose, overflow; L:600->40 |
09352-50901-600 |
from US $6.54 |
||
|
14
|
14
09404-06432-000
CLAMP(L:65)
Clamp, reservoir hose; |
09404-06432-000 |
— | ||
| replacement | |||||
|
14
|
14
09404-06039-000 Clamp(L:65)Clamp, reservoir hose; |
09404-06039-000 |
from US $1.82 |
||
