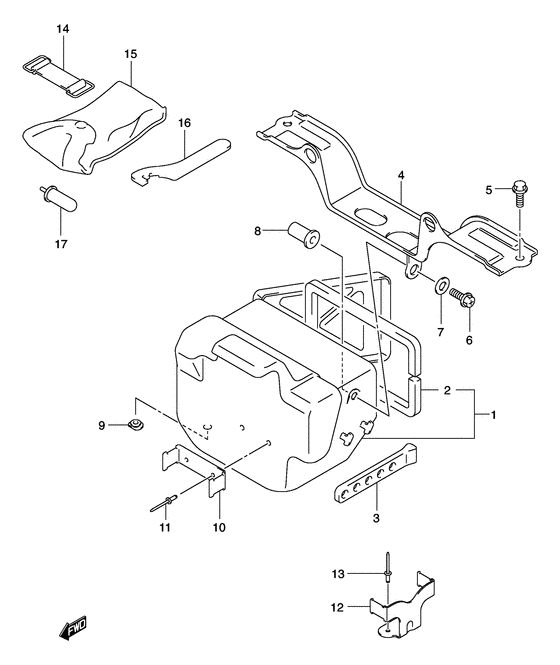

Rear box Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93110-03G00-000
BOX,RR
Box, rear; |
93110-03G00-000 |
— | ||
|
2
|
2
93114-03G00-000 MOLDING,RR BOX |
93114-03G00-000 |
from US $9.83 |
||
|
3
|
3
93191-09F10-000
Band, box
Band, box; |
93191-09F10-000 |
— | ||
| replacement | |||||
|
3
|
3
93191-09F11-000 BAND,RR BOXBand, box; |
93191-09F11-000 |
from US $6.55 |
||
|
4
|
4
93140-03G01-000 HOLDER,RR BOX |
93140-03G01-000 |
from US $32.38 |
||
|
5
|
5
01550-06163-000
Bolt
Bolt, holder; |
01550-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0616B-000 BOLTBolt, holder; |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
01550-0616A-000 BOLTBolt, holder; |
01550-0616A-000 |
from US $0.76 |
||
|
6
|
6
02162-05203-000
Screw
Bolt, box; |
02162-05203-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0520B-000 SCREWBolt, box; |
02162-0520B-000 |
from US $3.57 |
||
|
7
|
7
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 |
09160-05043-000 |
from US $0.91 |
||
|
8
|
8
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
9
|
9
09250-10011-000
CAP(OD:18)
Plug; |
09250-10011-000 |
— | ||
| replacement | |||||
|
9
|
9
09250-10033-000 CapPlug; |
09250-10033-000 |
from US $1.68 |
||
|
10
|
10
47413-09FA0-000
Plate, cdi unit
|
47413-09FA0-000 |
— | ||
| replacement | |||||
|
10
|
10
47413-09FA1-000 PLATE,CDI UNIT |
47413-09FA1-000 |
from US $4.82 |
||
|
11
|
11
09229-04025-000 RIVETRivet, fastener |
09229-04025-000 |
from US $2.61 |
||
|
12
|
12
47417-03G00-000
BRACKET,FUSE BOX
|
47417-03G00-000 |
— | ||
|
13
|
13
09229-04038-000 RIVET |
09229-04038-000 |
from US $0.80 |
||
|
14
|
14
09462-00073-000
(ca) band
Band, tool; |
09462-00073-000 |
— | ||
| replacement | |||||
|
14
|
14
09462-00093-000 BANDBand, tool; |
09462-00093-000 |
from US $5.60 |
||
|
15
|
15
09800-21040-000 TOOL ASSYBool assy Tool assy; |
09800-21040-000 |
from US $28.34 |
||
|
16
|
16
09822-00003-000 CLAMPClamp, wrench; |
09822-00003-000 |
from US $5.59 |
||
|
17
|
17
96200-18A02-000 GAUGE ASSY,AIR PRESSUREGuage assy, air Guage assy, air; |
96200-18A02-000 |
US $67.61 |
||
