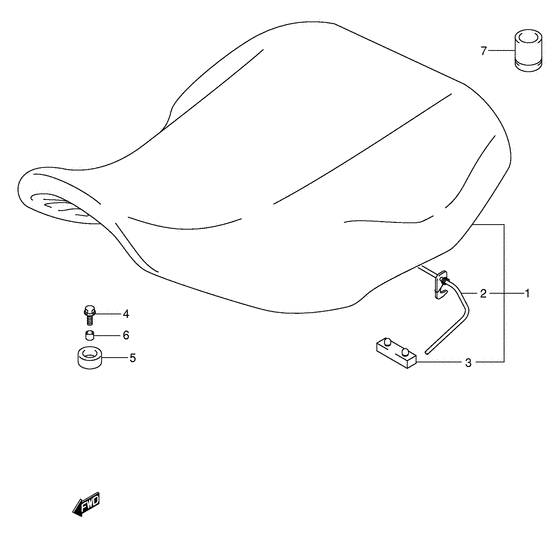

Seat Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-03G01-P21
Seat set
|
45100-03G01-P21 |
— | ||
| replacement | |||||
|
1
|
1
45100-03G21-P21 Seat assy (black) |
45100-03G21-P21 |
US $432.36 |
||
|
2
|
2
45210-03G00-000
CLAMP,SEAT LOCK
|
45210-03G00-000 |
— | ||
|
3
|
3
45149-43500-000 CUSHION,SEAT |
45149-43500-000 |
from US $4.80 |
||
|
4
|
4
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
45141-09F00-000 CUSHION,MOUNTCushion, seat mount Cushion, seat; Fr |
45141-09F00-000 |
from US $2.94 |
||
|
6
|
6
09180-06261-000 SPACER(6.5X9X8) |
09180-06261-000 |
from US $1.78 |
||
|
7
|
7
45141-03G01-000 CUSHION,SEAT MOUNT RRRr |
45141-03G01-000 |
US $11.95 |
||
