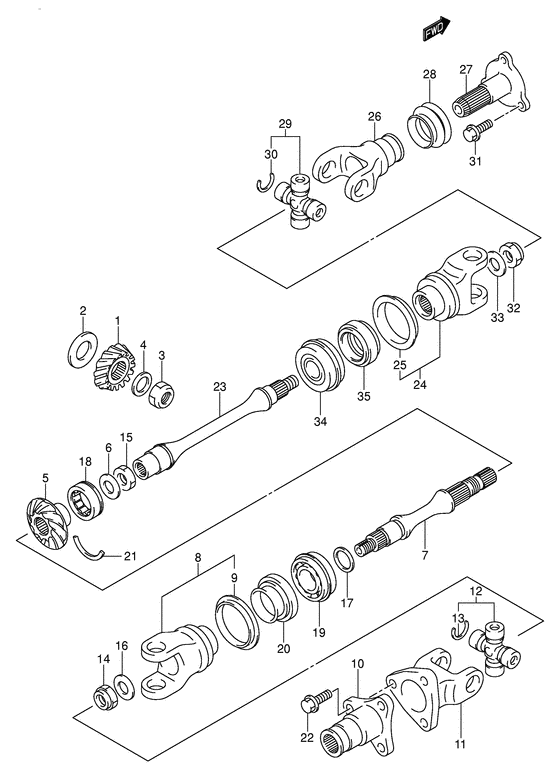

Secondary drive Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24911-44D11-000 GEAR,SECONDARY DRIVE BEVELNt:15 |
24911-44D11-000 |
US $256.16 |
||
|
2
|
2
24935-19810-000
Shim set, sec drive bevel gr
Shim set, sec drive bevel gr; T:0.25/0.30/0.35/0.90/0.95/1.00/, 1.05/1.10/1.15 |
24935-19810-000 |
— | ||
| replacement | |||||
|
2
|
2
24935-03811-000 SHIM SET,SEC DRIVE BEVELShim set, sec drive bevel gr; T:0.25/0.30/0.35/0.90/0.95/1.00/, 1.05/1.10/1.15 |
24935-03811-000 |
from US $65.14 |
||
|
3
|
3
09140-20012-000 NUTNut, sec drive bevel gr; |
09140-20012-000 |
from US $5.88 |
||
|
4
|
4
09164-20007-000 WASHERLock washer Washer, sec drive bevel gr; |
09164-20007-000 |
from US $6.26 |
||
|
5
|
5
24921-44D10-000 GEAR,SECONDARY DRIVE BEVEL |
24921-44D10-000 |
from US $132.48 |
||
|
6
|
6
08211-22365-000 WASHERWasher, sec driven gear; |
08211-22365-000 |
from US $8.13 |
||
|
7
|
7
24971-44D60-000 SHAFT,SEC DRIVEN OUTPUT RR |
24971-44D60-000 |
from US $178.48 |
||
|
8
|
8
27130-03G50-000 YOKE,RR DRIVE OUTPUT |
27130-03G50-000 |
from US $113.34 |
||
|
9
|
9
27592-38F00-000 PLATEPlate, output; |
27592-38F00-000 |
US $13.01 |
||
|
10
|
10
27150-38F00-000 SHAFT,PROPELLER RRShaft, propeller rr |
27150-38F00-000 |
from US $113.71 |
||
|
11
|
11
27161-03G00-000 YOKE,PROP SHAFT JOINT RR |
27161-03G00-000 |
from US $111.84 |
||
|
12
|
12
27200-73813-000
JOINT SET,UNIVERSAL
Joint set, universal rr; |
27200-73813-000 |
— | ||
| replacement | |||||
|
12
|
12
27200-73814-000 Joint Set, Universal RrJoint set, universal rr; |
27200-73814-000 |
from US $52 |
||
|
13
|
13
09380-25005-000 RING,SNAPCirclip |
09380-25005-000 |
from US $1.52 |
||
|
14
|
14
09159-16003-000 NUTNut, rear drive output yoke Nut, rear output joint; |
09159-16003-000 |
from US $1.67 |
||
|
15
|
15
09159-22005-000 NUTNut, sec driven gear; |
09159-22005-000 |
from US $31.84 |
||
|
16
|
16
09160-16026-000 WASHER(16X30X3)Washer (18.5x35x4) Washer, rear output frange; 16x30x3 |
09160-16026-000 |
from US $4.10 |
||
|
17
|
17
09181-25051-000 SHIM(25X34X0.6)Shim (t:0.60) Shim, sec driven; 25x34x0.6 |
09181-25051-000 |
from US $4.76 |
||
|
17
|
17
09181-25052-000 SHIM(25X34X0.65)Shim (t:0.65) Shim, sec driven; 25x34x0.65 |
09181-25052-000 |
from US $4.76 |
||
|
17
|
17
09181-25053-000 Shim (t:0.70)Shim, sec driven; 25x34x0.70 |
09181-25053-000 |
from US $2.52 |
||
| replacement | |||||
|
17
|
17
09181-25160-000 SHIM(25X34X0.7)Shim (t:0.7) Shim, sec driven; 25x34x0.70 |
09181-25160-000 |
from US $1.76 |
||
|
17
|
17
09181-25054-000 SHIM(25X34X0.75)Shim (t:0.75) Shim, sec driven; 25x34x0.75 |
09181-25054-000 |
from US $4.76 |
||
|
17
|
17
09181-25055-000 Shim (t:0.80)Shim, sec driven; 25x34x0.80 |
09181-25055-000 |
US $16.20 |
||
| replacement | |||||
|
17
|
17
09181-25162-000 SHIM(25X34X0.8)Shim, sec driven; 25x34x0.80 |
09181-25162-000 |
US $16.20 |
||
|
17
|
17
09181-25056-000 SHIM(25X34X0.85)Shim (t:0.85) Shim, sec driven; 25x34x0.85 |
09181-25056-000 |
from US $4.66 |
||
|
17
|
17
09181-25057-000 SHIM(25X34X0.90)Shim: (0.9) Shim, sec driven; 25x34x0.90 |
09181-25057-000 |
from US $1.60 |
||
| replacement | |||||
|
17
|
17
09181-25164-000 SHIM(25X34X0.9)Shim, sec driven; 25x34x0.90 |
09181-25164-000 |
US $16.20 |
||
|
17
|
17
09181-25058-000 SHIM(25X34X0.95)Shim (t:0.95) Shim, sec driven; 25x34x0.95 |
09181-25058-000 |
from US $4.76 |
||
|
17
|
17
09181-25059-000 SHIM(25X34X1)Shim (t:1.00) Shim, sec driven; 25x34x1.00 |
09181-25059-000 |
from US $2.99 |
||
| replacement | |||||
|
17
|
17
09181-25167-000 SHIM(25X34X1)Washer, shift shaft Shim, sec driven; 25x34x1.00 |
09181-25167-000 |
from US $1.82 |
||
|
17
|
17
09181-25060-000 SHIM(25X34X1.05)Shim (t:1.05) Shim, sec driven; 25x34x1.05 |
09181-25060-000 |
from US $4.66 |
||
|
17
|
17
09181-25061-000 SHIM(25X34X1.1)Shim (t:1.10) Shim, sec driven; 25x34x1.10 |
09181-25061-000 |
from US $2.25 |
||
|
17
|
17
09181-25062-000 SHIM(25X34X1.15)Shim (t:1.15) Shim, sec driven; 25x34x1.15 |
09181-25062-000 |
from US $5.24 |
||
|
17
|
17
09181-25063-000 SHIM(25X34X1.2)Shim (t:1.20) Shim, sec driven; 25x34x1.20 |
09181-25063-000 |
from US $5.13 |
||
|
18
|
18
09263-30050-000 BEARING(30X50X17)Brg, sec driven gear, mdl; 30x50x17 |
09263-30050-000 |
from US $22.05 |
||
|
19
|
19
09267-25006-000
Brg, sec driven output sft rr
Brg, sec driven output sft rr; 25x52x20.6 |
09267-25006-000 |
— | ||
| replacement | |||||
|
19
|
19
09267-25014-000 BEARING(25X52X20.6)Brg, sec driven output sft rr Brg, sec driven output sft rr; 25x52x20.6 |
09267-25014-000 |
from US $60.35 |
||
|
20
|
20
09283-34008-000 SEAL,OIL(34X52X9)Oil seal, driven sft, rr; 34x52x9 |
09283-34008-000 |
from US $11.44 |
||
|
21
|
21
09390-50002-000 C RINGRing, sec driven brg, mdl; |
09390-50002-000 |
from US $4.13 |
||
|
22
|
22
09103-10310-000 BOLT(10X20)Bolt (10x20) Bolt, prop shaft, rr; |
09103-10310-000 |
from US $1.67 |
||
|
23
|
23
24960-44D60-000
SHAFT,SECONDARY DRIVEN FR
Shaft, sec driven, fr; |
24960-44D60-000 |
— | ||
|
24
|
24
27130-03G00-000 YOKE,RR DRIVE OUTPUTYoke, rr drive output |
27130-03G00-000 |
US $211.87 |
||
|
25
|
25
27592-38F00-000 PLATEPlate, output; |
27592-38F00-000 |
US $13.01 |
||
|
26
|
26
27140-03G00-000 YOKE,PROP SHAFT JOINTYoke, prop shaft, fr Yoke, prop sft joint, fr; |
27140-03G00-000 |
US $158.97 |
||
|
27
|
27
27150-03G50-000 SHAFT,PROPELLER |
27150-03G50-000 |
US $134.93 |
||
|
28
|
28
27153-03G00-000 BOOT,PROPELLER SHAFT |
27153-03G00-000 |
US $14.11 |
||
|
29
|
29
27200-19810-000
JOINT SET,UNIVERSAL
Joint set, universal; |
27200-19810-000 |
— | ||
| replacement | |||||
|
29
|
29
27200-19811-000 JOINT SET,UNIVEJoint set, universal; |
27200-19811-000 |
US $80.36 |
||
|
30
|
30
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
31
|
31
09103-10310-000 BOLT(10X20)Bolt (10x20) Bolt, propeller shaft; |
09103-10310-000 |
from US $1.67 |
||
|
32
|
32
09159-16003-000 NUTNut, rear drive output yoke Nut, fr drive output yoke; |
09159-16003-000 |
from US $1.67 |
||
|
33
|
33
09160-16026-000 WASHER(16X30X3)Washer (18.5x35x4) Washer, fr drive output yoke; 16x30x3 |
09160-16026-000 |
from US $4.10 |
||
|
34
|
34
09262-25006-000 BEARING(25X47X8)Bearing (25x47x8) Brg, sec driven output sft fr; 25x47x8 |
09262-25006-000 |
from US $14.08 |
||
|
35
|
35
09283-34008-000 SEAL,OIL(34X52X9)Oil seal, driven sft, fr; 34x52x9 |
09283-34008-000 |
from US $11.44 |
||
