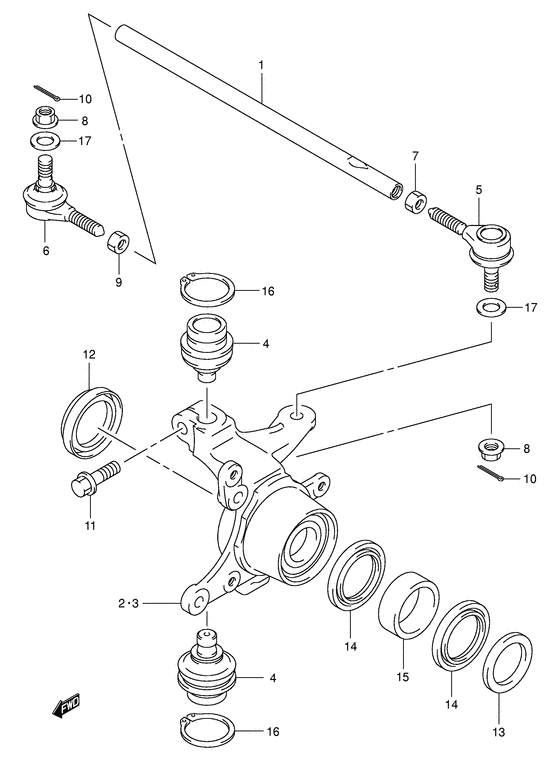

Steering knuckle Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51281-03G00-000 TIE ROD,STEERING |
51281-03G00-000 |
from US $20.79 |
||
|
2
|
2
51231-03GF0-000
KNUCKLE,STEERING,R
|
51231-03GF0-000 |
— | ||
|
3
|
3
51241-03GF0-000
Knuckle, steering lh
|
51241-03GF0-000 |
— | ||
|
4
|
4
51210-38F00-000 END,KNUCKLE STEERING |
51210-38F00-000 |
US $88.76 |
||
|
5
|
5
51260-07G01-000 END,ROD,RRod, end rh (rh thread); |
51260-07G01-000 |
from US $53.73 |
||
|
6
|
6
51270-07G01-000 END,ROD,LRod, end (lh thread); |
51270-07G01-000 |
from US $53.73 |
||
|
7
|
7
09140-10043-000 NUTNut, tie rod rh thread Nut, tie rod (rh thread); |
09140-10043-000 |
from US $0.91 |
||
|
8
|
8
09159-10058-000
Nut
Nut, rod end; |
09159-10058-000 |
— | ||
| replacement | |||||
|
8
|
8
09159-10115-000 NUTNut, rod end; |
09159-10115-000 |
from US $2.58 |
||
|
9
|
9
09140-10027-000 NUTNut, tie rod lh thread Nut, tie rod (lh thread); |
09140-10027-000 |
from US $0.91 |
||
|
10
|
10
04111-20208-000 20 x 20 cotterCotter pin Cotter pin, rod end; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
10
|
10
04111-2020A-000 PINCotter pin, rod end Cotter pin, rod end; |
04111-2020A-000 |
from US $0.76 |
||
|
11
|
11
51233-09F00-000 BOLT,KNUCKLE(10X30)Bolt, knuckle (10x30); |
51233-09F00-000 |
US $8.99 |
||
|
12
|
12
09283-38012-000 SEAL,OIL(38X55X8)Dust seal, inner (38x55x8); |
09283-38012-000 |
from US $10.72 |
||
|
13
|
13
09283-38022-000 SEAL,OIL(38X55X9)Dust seal, outer (38x55x7.5) Dust seal, outer (38x55x6.4); |
09283-38022-000 |
US $17.56 |
||
|
14
|
14
08123-60067-000 BEARINGBearing, front hub |
08123-60067-000 |
from US $16.72 |
||
|
15
|
15
54731-03G00-000 SPACER,HUB BEARING |
54731-03G00-000 |
from US $6.92 |
||
|
16
|
16
08331-31306-000
Circlip
Clip; |
08331-31306-000 |
— | ||
| replacement | |||||
|
16
|
16
08331-31309-000 CIRCLIPClip; |
08331-31309-000 |
from US $1.60 |
||
|
17
|
17
09181-11001-000 SHIM(11.1X19X1.4) |
09181-11001-000 |
from US $6.68 |
||
