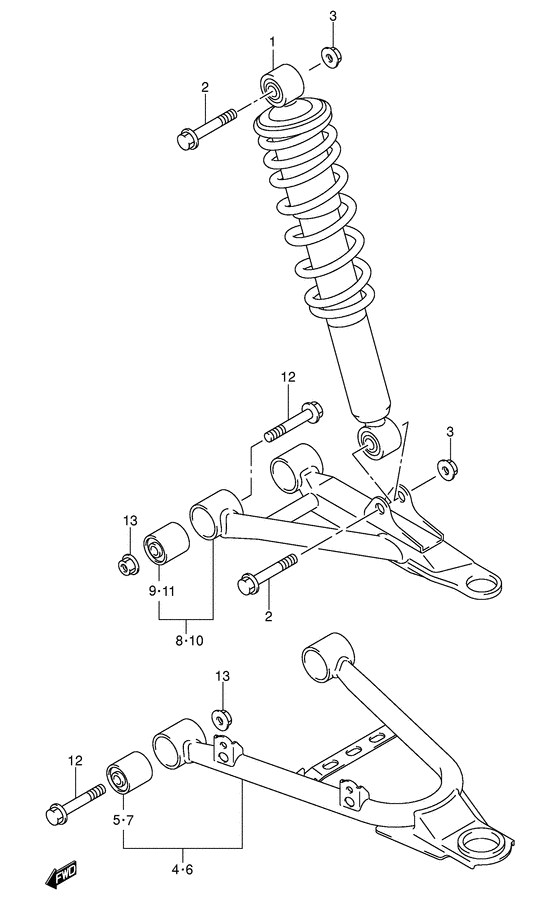

Suspension arm Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-03GF0-019
Absorber assy, front shock
Absorber assy, front shock (black); |
52100-03GF0-019 |
— | ||
|
2
|
2
09103-10126-000 BOLT(10X48)Bolt (10x48) Bolt (10x48); |
09103-10126-000 |
from US $2.13 |
||
|
3
|
3
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
4
|
4
52410-03820-000
Arm set, suspension lower rh
|
52410-03820-000 |
— | ||
| replacement | |||||
|
4
|
4
52410-03830-000 ARM SET,SUSPENSION LWR,R |
52410-03830-000 |
from US $476.32 |
||
|
5
|
5
09319-10055-000 BUSHBush, suspension arm Bush (10x35.1x38); |
09319-10055-000 |
from US $11.68 |
||
|
6
|
6
52420-03820-000
Arm set, suspension lower lh
|
52420-03820-000 |
— | ||
| replacement | |||||
|
6
|
6
52420-03830-000 ARM SET,SUSPENSION LWR,L |
52420-03830-000 |
from US $316.65 |
||
|
7
|
7
09319-10055-000 BUSHBush, suspension arm Bush (10x35.1x38); |
09319-10055-000 |
from US $11.68 |
||
|
8
|
8
52430-03820-000
ARM SET,SUSPENSION UPR,R
|
52430-03820-000 |
— | ||
|
9
|
9
09319-10055-000 BUSHBush, suspension arm Bush (10x35.1x38); |
09319-10055-000 |
from US $11.68 |
||
|
10
|
10
52440-03820-000
Arm set, suspension upper lh
|
52440-03820-000 |
— | ||
|
11
|
11
09319-10055-000 BUSHBush, suspension arm Bush (10x35.1x38); |
09319-10055-000 |
from US $11.68 |
||
|
12
|
12
09103-10301-000 BOLT(10X60)Bolt (10x60) Bolt (10x60); |
09103-10301-000 |
from US $8.16 |
||
|
13
|
13
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
