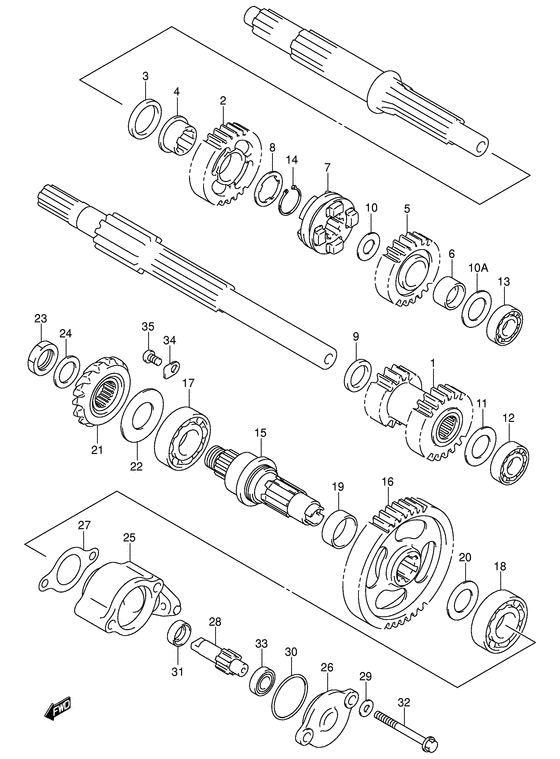

Transmission Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29150-44D00-000
GEAR,SUB T/M IDLE
Nt:22/17 |
29150-44D00-000 |
— | ||
|
2
|
2
29211-03G50-000
GEAR,SUB T/M DRIVE NO.1
Nt:27 |
29211-03G50-000 |
— | ||
|
3
|
3
29212-44D50-000 SPACER,SUB T/M DRIVE NO.1 GRSpacer, sub t/m no.1 gr |
29212-44D50-000 |
from US $10.78 |
||
|
4
|
4
29215-44D50-000 BUSH,SUB T/M DRIVE NO.1 GEARBush, sub t/m no.1 gr |
29215-44D50-000 |
from US $20.98 |
||
|
5
|
5
29221-44D50-000 GEAR,SUB T/M DRIVE NO.2Gear, sub t/m no.2 Nt:28 |
29221-44D50-000 |
from US $75.07 |
||
|
6
|
6
29222-44D00-000 BUSH,SUB T/M DRIVE NO,2Bush, rev idle gear Bush, sub t/m drive no.2; |
29222-44D00-000 |
from US $16.34 |
||
|
7
|
7
29231-03G50-000
DOG,SUB T/M SELECT SLIDING
|
29231-03G50-000 |
— | ||
|
8
|
8
09167-25016-000 WASHER,LOCKLock washer Washer, sub t/m drive; |
09167-25016-000 |
from US $2.13 |
||
|
9
|
9
09180-20101-000
SPACER(20X29X4.5)
|
09180-20101-000 |
— | ||
|
10
|
10
09181-20195-000 SHIM(20X30X1)Washer, sub t/m drive no.2, rh; 20x30x1.0 |
09181-20195-000 |
from US $1.82 |
||
|
10A
|
10A
09181-20251-000 SHIM(20X34X1)Shim (t:1.0) Washer, sub t/m drive no.2 lh; 20x34x1.0 |
09181-20251-000 |
from US $1.62 |
||
|
11
|
11
09181-20251-000 SHIM(20X34X1)Shim (t:1.0) Washer, sub t/m idle gear; 20x34x1.0 |
09181-20251-000 |
from US $1.62 |
||
|
12
|
12
09262-20081-000
B1 20x47x14 bea
Bearing, cntr shaft, lh; |
09262-20081-000 |
— | ||
| replacement | |||||
|
12
|
12
09262-20139-000 BEARING(20X47X14)Bearing, sub t/m counter, r Bearing, cntr shaft, lh; |
09262-20139-000 |
from US $19.20 |
||
|
13
|
13
09262-20080-000 BEARING(20X52X15)Bearing, drive shaft,lh Bearing, drive shaft, lh; 20x52x15 |
09262-20080-000 |
from US $19.20 |
||
|
14
|
14
09380-25003-000 RING,SNAPCirclip Circlip, drive no.1; |
09380-25003-000 |
from US $2.74 |
||
|
15
|
15
29121-44D20-000
Shaft, sub t/m output
|
29121-44D20-000 |
— | ||
| replacement | |||||
|
15
|
15
29121-44D21-000 SHAFT,SUB T/M OUTPUT |
29121-44D21-000 |
US $113.71 |
||
|
16
|
16
29311-03G50-000
Gear, sub t/m driven
Nt:43 |
29311-03G50-000 |
— | ||
| replacement | |||||
|
16
|
16
29311-03G60-000
GEAR,SUB T/M DRIVEN
Nt:43 |
29311-03G60-000 |
— | ||
|
17
|
17
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) Bearing, sub t/m, rh; 35x72x17 |
09262-35038-000 |
from US $22.04 |
||
|
18
|
18
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) Bearing, sub t/m, lh; 20x52x15.0 |
09262-20073-000 |
from US $12.31 |
||
|
19
|
19
09180-25037-000
Spacer, sub t/m driven
|
09180-25037-000 |
— | ||
|
20
|
20
09181-20251-000 SHIM(20X34X1)Shim (t:1.0) Washer, sub t/m driven; |
09181-20251-000 |
from US $1.62 |
||
|
21
|
21
24911-44D11-000 GEAR,SECONDARY DRIVE BEVELGear, sec drive bevel gr; Nt:15 |
24911-44D11-000 |
US $256.16 |
||
|
22
|
22
24935-19810-000
Shim set, sec drive bevel gr
T:0.25/0.30/0.35/0.90/0.95/1.00/, 1.05/1.10/1.15 |
24935-19810-000 |
— | ||
| replacement | |||||
|
22
|
22
24935-03811-000 SHIM SET,SEC DRIVE BEVELT:0.25/0.30/0.35/0.90/0.95/1.00/, 1.05/1.10/1.15 |
24935-03811-000 |
from US $65.14 |
||
|
23
|
23
09140-20012-000 NUTNut, sec drive bevel; |
09140-20012-000 |
from US $5.88 |
||
|
24
|
24
09164-20007-000 WASHERLock washer Washer, sec drive bevel; |
09164-20007-000 |
from US $6.26 |
||
|
25
|
25
26441-03G50-000
HOUSING,ODOMETER GEAR
|
26441-03G50-000 |
— | ||
|
26
|
26
26442-03G50-000 COVER,ODOMETER GEAR HOUSING |
26442-03G50-000 |
from US $20.06 |
||
|
27
|
27
26451-19B12-000 GASKET,ODOMETER GEAR SLVGasket, odometer; |
26451-19B12-000 |
from US $3.09 |
||
|
28
|
28
26461-03G50-000
SHAFT,ODOMETER GEAR
|
26461-03G50-000 |
— | ||
|
29
|
29
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket, sleeve bolt; 5.8x13x1.2 |
09168-06023-000 |
from US $1.51 |
||
|
30
|
30
09280-33005-000 O RING(D:1.9,ID:32.7)Seal, water pump case O ring, gear housing; Od:1.9,id:32.7 |
09280-33005-000 |
from US $1.52 |
||
|
31
|
31
09282-12009-000 SEAL,OIL(12X21X7)Seal, gear housing Seal, gear housing; 12x21x7 |
09282-12009-000 |
from US $5.81 |
||
|
32
|
32
01547-06503-000
Bolt
Bolt, gear housing; |
01547-06503-000 |
— | ||
| replacement | |||||
|
32
|
32
01547-0650B-000 BoltBolt, gear housing; |
01547-0650B-000 |
from US $0.84 |
||
|
33
|
33
08130-68007-000 BEARING |
08130-68007-000 |
from US $14.79 |
||
|
34
|
34
24741-21A00-000 RETAINERRetainer, sec drive sft brg; |
24741-21A00-000 |
from US $1.60 |
||
|
35
|
35
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw (6x12); |
09125-06110-000 |
from US $1.52 |
||
