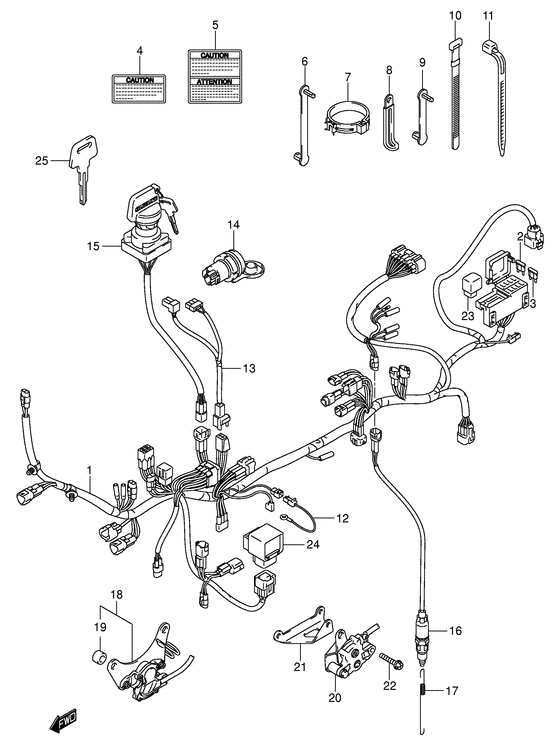

Wiring harness Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-03G20-000
HARNESS,WIRING
|
36610-03G20-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A)Fuse (10a); |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A)Fuse (15a); |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
38852-09F30-000 LABEL,CAUTION MAX AMP |
38852-09F30-000 |
from US $4.71 |
||
|
5
|
5
38852-03G10-000 LABEL,CAUTION MAX AMPE28 |
38852-03G10-000 |
from US $6.59 |
||
|
6
|
6
36651-48E00-000 CLAMP(L:63)Clamp, wiring harness |
36651-48E00-000 |
from US $1.92 |
||
|
7
|
7
09403-20403-000 CLAMP |
09403-20403-000 |
from US $4.88 |
||
|
7
|
7
09403-25401-000 CLAMP |
09403-25401-000 |
US $19.10 |
||
|
8
|
8
09404-06432-000
CLAMP(L:65)
Clamp (l:80); |
09404-06432-000 |
— | ||
| replacement | |||||
|
8
|
8
09404-06039-000 Clamp(L:65)Clamp (l:80); |
09404-06039-000 |
from US $1.82 |
||
|
9
|
9
09407-03401-000 CLAMP(L:33) |
09407-03401-000 |
from US $0.96 |
||
|
10
|
10
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp; |
09407-12402-000 |
from US $1.98 |
||
|
11
|
11
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
12
|
12
36851-05D00-000 WIRE,REGULATOR EARTH LEADWire, ignition coil Wire, ignition coil; |
36851-05D00-000 |
from US $3.64 |
||
|
13
|
13
36854-03G00-000
WIRE,FR BRAKE SW LEAD
Wire, front brake switch lead; |
36854-03G00-000 |
— | ||
|
14
|
14
38850-03G00-000 TERMINAL,POWER SOURCETerminal, power source; 12v/120w |
38850-03G00-000 |
from US $49.68 |
||
|
15
|
15
37110-03G00-000
SWITCH ASSY,IGNITION
|
37110-03G00-000 |
— | ||
| replacement | |||||
|
15
|
15
37110-03G01-000 Switch Assy,ignition |
37110-03G01-000 |
from US $100.10 |
||
|
16
|
16
37740-38F00-000
Switch assy, stop lamp
|
37740-38F00-000 |
— | ||
| replacement | |||||
|
16
|
16
37740-38F01-000 SWITCH ASSY,STOP LAMP |
37740-38F01-000 |
from US $59.98 |
||
|
17
|
17
09443-06080-000 SPRINGSpring, stop lamp |
09443-06080-000 |
from US $7.57 |
||
|
18
|
18
37600-03G00-000
SWITCH ASSY,REVERSE
|
37600-03G00-000 |
— | ||
|
19
|
19
37609-03G00-000
Collar
Coolar; |
37609-03G00-000 |
— | ||
|
20
|
20
37670-03G00-000 SWITCH ASSY,GEAR INDICATOR |
37670-03G00-000 |
from US $70.66 |
||
|
21
|
21
37674-03G10-000
Bracket gear ind switch
|
37674-03G10-000 |
— | ||
|
22
|
22
02162-05303-000
Screw
Screw, gear switch; |
02162-05303-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0530B-000 SCREWScrew, gear switch; |
02162-0530B-000 |
US $11.80 |
||
|
22
|
22
01550-0525A-000 BOLTScrew, gear switch; |
01550-0525A-000 |
from US $0.70 |
||
|
23
|
23
38730-09F00-000 RELAY,NEUTRAL STARTRelay, neutral start; |
38730-09F00-000 |
US $62.85 |
||
|
24
|
24
38750-03G00-000 RELAY ASSY,DRIVE |
38750-03G00-000 |
from US $71.40 |
||
|
25
|
25
37146-19B00-000 KEY,BLANK(TYPE:C)Key, blank type c Key, blank (type:c); Opt |
37146-19B00-000 |
from US $8.32 |
||
|
25
|
25
37146-19B10-000 KEY,BLANK(TYPE:D)Key, blank type d Key, blank (type:d); Opt |
37146-19B10-000 |
from US $4.82 |
||
|
25
|
25
37146-19B20-000 KEY,BLANK(TYPE:E)Key, blank (type:e); Opt |
37146-19B20-000 |
from US $4.82 |
||
|
25
|
25
37146-19B30-000 KEY,BLANK(TYPE:F)Key, blank (type:f); Opt |
37146-19B30-000 |
from US $8.32 |
||
