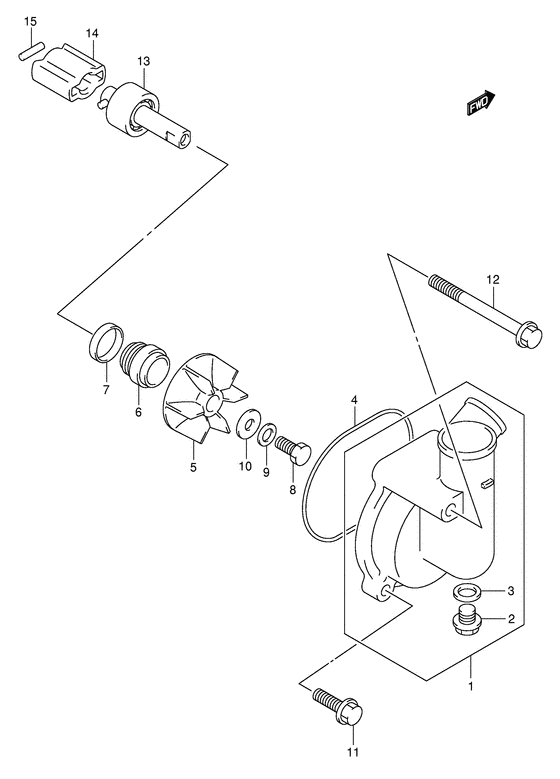

Water pump Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK7
- Engine Capacity
- 493
- Year
- 2007
- Sales region
- Australia (P24)
- Frame
- 5SAAM44A*77100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-44D10-000 CASE,WATER PUMP |
17410-44D10-000 |
from US $71.76 |
||
|
2
|
2
17415-14300-000 BOLT,DRAIN |
17415-14300-000 |
from US $2.58 |
||
|
3
|
3
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
4
|
4
17435-12C00-000 O RING,WATER PUMP CASEO ring, water pump case |
17435-12C00-000 |
from US $5.32 |
||
|
5
|
5
17491-12C00-000 IMPELLER,WATER PUMPImpeller/shaft; |
17491-12C00-000 |
from US $22.04 |
||
|
6
|
6
17470-02F00-000
SEAL,MECHANICAL
Seal, mechanical; |
17470-02F00-000 |
— | ||
| replacement | |||||
|
6
|
6
17470-02F11-000 Seal,mechanicalSeal, mechanical; |
17470-02F11-000 |
from US $18.25 |
||
|
7
|
7
09283-10005-000 SEAL,OIL(10X20X5)Oil seal (10x20x5); |
09283-10005-000 |
from US $2.58 |
||
|
8
|
8
09100-06162-000 BOLT(6X13) |
09100-06162-000 |
from US $0.84 |
||
|
9
|
9
09164-06006-000 WASHERWasher (6.3x12x1) Washer; |
09164-06006-000 |
from US $1.06 |
||
|
10
|
10
09168-06025-000 GASKET(6X15X2.2)Gasket Washer; |
09168-06025-000 |
from US $1.22 |
||
|
11
|
11
01547-06203-000
Bolt (6x20)
|
01547-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0620B-000 BOLT |
01547-0620B-000 |
from US $0.76 |
||
|
12
|
12
01547-06653-000
Bolt
|
01547-06653-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0665B-000 Bolt |
01547-0665B-000 |
from US $0.84 |
||
|
13
|
13
17510-16711-000 SHAFT,WATER PUMP |
17510-16711-000 |
from US $86.11 |
||
|
14
|
14
17611-44D20-000 JOINT,WATER PUMP DRIVEJoint, pump drive Joint, water pump drive; |
17611-44D20-000 |
US $41.29 |
||
|
15
|
15
09261-04009-000 PIN(4X15.8)Pin Pin, driven gear; |
09261-04009-000 |
from US $0.84 |
||
