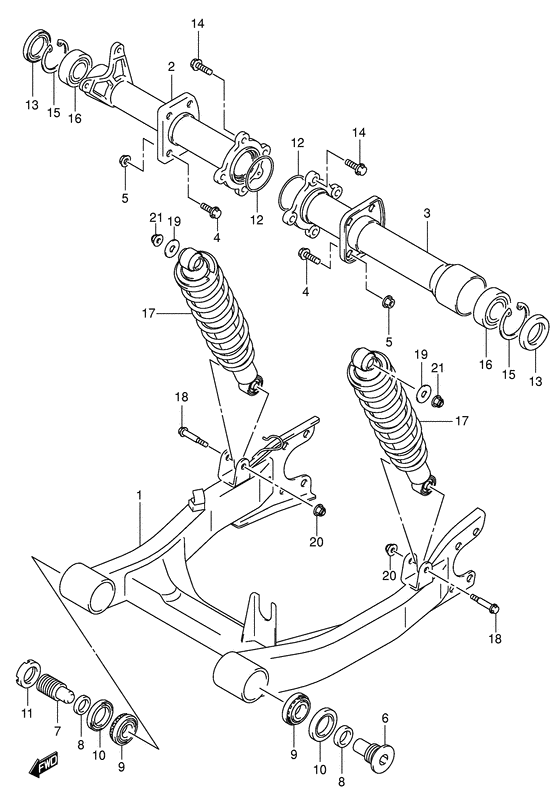

Rear swingingarm Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK7
- Engine Capacity
- 493
- Year
- 2007
- Sales region
- Canada/California (P28/P33)
- Frame
- 5SAAM44A*77100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-03G00-000 SWINGINGARM,RR |
61100-03G00-000 |
from US $672.04 |
||
|
2
|
2
61300-03G20-000
HOUSING,RR AXLE,R
|
61300-03G20-000 |
— | ||
|
3
|
3
61400-03G20-000
HOUSING,RR AXLE,L
|
61400-03G20-000 |
— | ||
|
4
|
4
09103-10216-000 BOLT(10X20)Bolt, rear swgarm bracket; |
09103-10216-000 |
from US $6.68 |
||
|
5
|
5
09159-10058-000
Nut
Nut, rear swgarm bracket; |
09159-10058-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-10115-000 NUTNut, rear swgarm bracket; |
09159-10115-000 |
from US $2.58 |
||
|
6
|
6
61213-03G20-000 BOLT,RR SWGARM PIVOT,L |
61213-03G20-000 |
US $42.13 |
||
|
7
|
7
61213-03G30-000 BOLT,RR SWGARM PIVOT,R |
61213-03G30-000 |
US $39.78 |
||
|
8
|
8
61251-03G00-000 SPACER,RR SWGARM PIVOT |
61251-03G00-000 |
US $16.83 |
||
|
9
|
9
09265-17014-000 BEARING(17X40X13.25) |
09265-17014-000 |
from US $33.03 |
||
|
10
|
10
09285-25003-000
SEAL,OIL(25X40X6)
Seal, pivot; |
09285-25003-000 |
— | ||
| replacement | |||||
|
10
|
10
09285-25007-000 SealSeal, pivot; |
09285-25007-000 |
from US $10.56 |
||
|
11
|
11
61214-03G00-000 NUT,RR SWGARM PIVOT |
61214-03G00-000 |
US $31.81 |
||
|
12
|
12
09280-70005-000 O RING(D:3.1,ID:69.4)Band (d:3.1 id:69.4) O ring, rear axle housing; |
09280-70005-000 |
from US $3.94 |
||
|
13
|
13
09283-38022-000 SEAL,OIL(38X55X9)Dust seal, outer (38x55x7.5) Seal, rear axle housing; |
09283-38022-000 |
US $17.56 |
||
|
14
|
14
09103-10343-000 BOLT(10X30)Bolt, axle housing Bolt, axle housing; Model k4/k5/k6 |
09103-10343-000 |
from US $6.38 |
||
|
14
|
14
09103-10410-000
Bolt, axlw housing
Bolt, axlw housing; Model k7 |
09103-10410-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-10421-000 BOLT(10X30)Bolt, axle housing Bolt, axlw housing; Model k7 |
09103-10421-000 |
from US $5.80 |
||
|
15
|
15
08331-41556-000
Circlip
Model k4/k5/k6 |
08331-41556-000 |
— | ||
| replacement | |||||
|
15
|
15
08331-41559-000 CIRCLIPModel k4/k5/k6 |
08331-41559-000 |
from US $2.43 |
||
|
15
|
15
08331-41559-000 CIRCLIPModel k7 |
08331-41559-000 |
from US $2.43 |
||
|
16
|
16
08123-60067-000 BEARINGBearing, front hub Bearing, hub; |
08123-60067-000 |
from US $16.72 |
||
|
17
|
17
62100-03GG0-019
ABSORBER ASSY,REAR SHOCK
Absorber assy, rear shock (black); Model k4 |
62100-03GG0-019 |
— | ||
|
17
|
17
62100-03GH0-019
ABSORBER ASSY,RR SHOCK
Absorber assy, rear shock (black); Model k5/k6/k7 |
62100-03GH0-019 |
— | ||
|
18
|
18
09103-10126-000 BOLT(10X48)Bolt (10x48) |
09103-10126-000 |
from US $2.13 |
||
|
19
|
19
09160-10501-000 WASHER(10.5X30X2.3)Washer, upper, outer Washer, upper outer; |
09160-10501-000 |
from US $1.08 |
||
|
20
|
20
09159-10058-000
Nut
Nut, lower; |
09159-10058-000 |
— | ||
| replacement | |||||
|
20
|
20
09159-10115-000 NUTNut, lower; |
09159-10115-000 |
from US $2.58 |
||
|
21
|
21
08319-31103-000
Nut
Nut, upper; |
08319-31103-000 |
— | ||
| replacement | |||||
|
21
|
21
08319-3110A-000 NUTNut, fr differential Nut, upper; |
08319-3110A-000 |
from US $1.98 |
||
