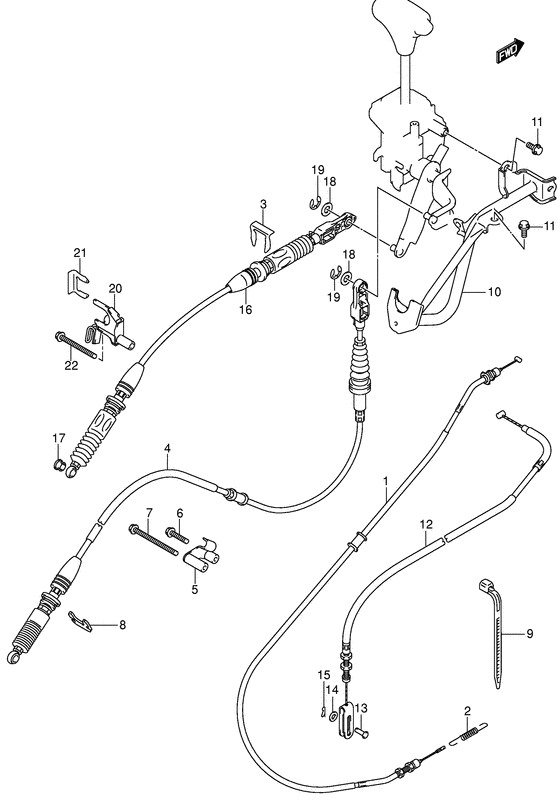

Shift cable Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK7
- Engine Capacity
- 493
- Year
- 2007
- Sales region
- Canada/California (P28/P33)
- Frame
- 5SAAM44A*77100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58650-03G01-000 CABLE,INTERLOCK |
58650-03G01-000 |
from US $45.26 |
||
|
2
|
2
58658-38F00-000
Spring
|
58658-38F00-000 |
— | ||
| replacement | |||||
|
2
|
2
58658-38F01-000 SPRING,INTER LOCK CABLE |
58658-38F01-000 |
from US $6.51 |
||
|
3
|
3
09383-19005-000 E RING |
09383-19005-000 |
from US $9.62 |
||
|
4
|
4
58670-03GF0-000 CABLE,RR FINAL LOCK |
58670-03GF0-000 |
from US $98.99 |
||
|
5
|
5
58630-03GF0-000
GUIDE,RR FINAL LOCK CABLE
|
58630-03GF0-000 |
— | ||
|
6
|
6
01547-06303-000
Bolt
|
01547-06303-000 |
— | ||
| replacement | |||||
|
6
|
6
01547-0630B-000 BOLTBolt |
01547-0630B-000 |
from US $0.96 |
||
|
7
|
7
01547-06803-000
Bolt (6x80)
|
01547-06803-000 |
— | ||
| replacement | |||||
|
7
|
7
01547-0680B-000 Bolt |
01547-0680B-000 |
from US $1.06 |
||
|
8
|
8
28375-78A00-000 CLIP |
28375-78A00-000 |
from US $2.26 |
||
|
9
|
9
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
10
|
10
57820-03GF1-000
PLATE,T/M LEVER
|
57820-03GF1-000 |
— | ||
|
11
|
11
09103-06501-000 BOLT(6X100)Bolt (6x100) |
09103-06501-000 |
from US $5.68 |
||
|
12
|
12
58810-03G10-000 CABLE,RR BRAKE |
58810-03G10-000 |
from US $53.73 |
||
|
13
|
13
09200-06013-000 PIN(L:13.5)Pin, rear cable pedal side Pin; |
09200-06013-000 |
from US $1.82 |
||
|
14
|
14
08322-01063-000
Washer
Washer; |
08322-01063-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-0106B-000 WASHERWasher; |
08322-0106B-000 |
from US $0.76 |
||
|
15
|
15
09385-06012-000 CLIP |
09385-06012-000 |
from US $1.22 |
||
|
16
|
16
58840-03GF0-000 CABLE,REVERSE |
58840-03GF0-000 |
from US $80.96 |
||
|
17
|
17
58821-03G00-000 BUSH,T/M CABLEBush t/m cable |
58821-03G00-000 |
from US $3.24 |
||
|
18
|
18
08322-01083-000
WASHER
Washer; |
08322-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERWasher; |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHERWasher; |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
08332-11063-000
E ring
E ring; |
08332-11063-000 |
— | ||
| replacements | |||||
|
19
|
19
08332-1106B-000 E RINGCirclip E ring; |
08332-1106B-000 |
from US $0.90 |
||
|
19
|
19
08332-1106A-000 E RINGE ring, pinion E ring; |
08332-1106A-000 |
from US $0.77 |
||
|
20
|
20
58870-03GF0-000
BRACKET,REVERSE CABLE
|
58870-03GF0-000 |
— | ||
|
21
|
21
09383-19005-000 E RING |
09383-19005-000 |
from US $9.62 |
||
|
22
|
22
01547-06653-000
Bolt
|
01547-06653-000 |
— | ||
| replacement | |||||
|
22
|
22
01547-0665B-000 Bolt |
01547-0665B-000 |
from US $0.84 |
||
