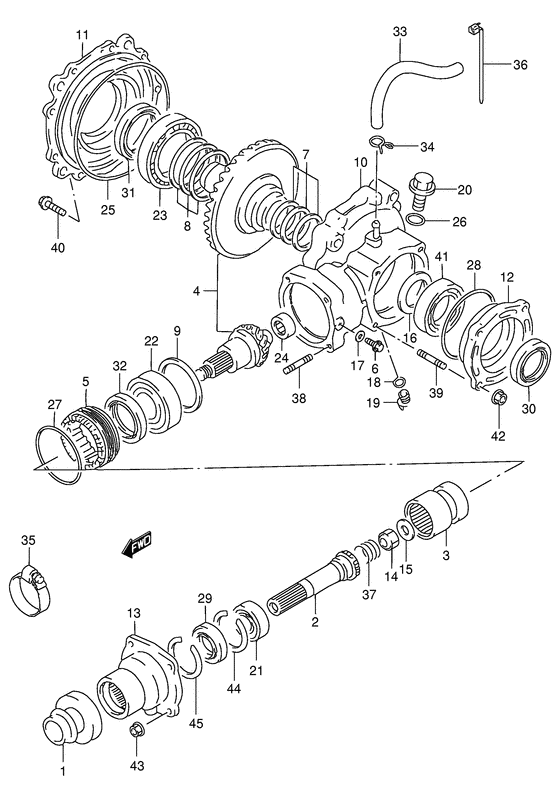

Final bevel gear (Rear)(model w/x) Diagram Suzuki LT-F500F QuadRunner 500 4WD
- Model code
- LT-F500FW
- Year
- 1998
- Sales region
- US/Canada (E3/E28)
- Frame
- JSAAM41A*W2100001~
- 2WD/4WD/AWD
- 4WD
- Model
- QuadRunner 500 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27153-44D50-000
BOOT,RR FINAL DRIVE SHAFT
|
27153-44D50-000 |
— | ||
|
2
|
2
27155-44D50-000
Shaft, rear final
|
27155-44D50-000 |
— | ||
| replacement | |||||
|
2
|
2
27155-44D51-000
SHAFT,RR FINAL DRIVE
|
27155-44D51-000 |
— | ||
|
3
|
3
27172-18B10-000 COUPLING,RR FINAL DRIVE SHAFTColpling, rear Coupling, rear; |
27172-18B10-000 |
US $44.41 |
||
|
4
|
4
27300-18840-000 GEAR SET,FINAL BEVEL(NT:10/36)Model w,nt:10/36 |
27300-18840-000 |
from US $851.84 |
||
|
4
|
4
27300-18850-000
GEAR SET,FINAL BEVEL
Model x,nt:10/36 |
27300-18850-000 |
— | ||
|
5
|
5
27312-18B00-000 STOPPER,FINAL DRIVE BEARINGStopper,final drive |
27312-18B00-000 |
from US $44.90 |
||
|
6
|
6
27313-18A00-000 PIN,BEARING STOPPERPin, bearing stopper Pin, bearing stopper; |
27313-18A00-000 |
from US $2.54 |
||
|
7
|
7
27326-18810-000 SHIM SET,FINAL DRIVEN GEARShim set, final drive gr; T:0.30/0.35/0.40/0.50/0.60 |
27326-18810-000 |
US $17.22 |
||
|
8
|
8
27327-34810-000 SHIM SET,DRIVEN GEAR BEARINGShim set, driven gear brg Shim set, driven gear brg; T:0.35/0.40/0.50/0.60 |
27327-34810-000 |
from US $21.12 |
||
|
9
|
9
27445-18820-000 SHIM SET,FINAL DRIVE GEARShim set, final drive gr T:0.30/0.35/0.40/0.50/0.60 |
27445-18820-000 |
US $29.28 |
||
|
10
|
10
27450-18B20-000
Case, rear final gr
|
27450-18B20-000 |
— | ||
| replacement | |||||
|
10
|
10
27450-18B30-000
CASE,RR FINAL GEAR
|
27450-18B30-000 |
— | ||
|
11
|
11
27461-44D10-000
Case, rear final driven,rh
|
27461-44D10-000 |
— | ||
| replacement | |||||
|
11
|
11
27461-44D30-000
CASE,RR FINAL DRIVEN GEAR,R
|
27461-44D30-000 |
— | ||
|
12
|
12
27462-44D10-000
CASE,RR FINAL DRIVEN GEAR,L
|
27462-44D10-000 |
— | ||
|
13
|
13
27470-44D50-000
HOUSING,RR FINAL DRIVE
|
27470-44D50-000 |
— | ||
|
14
|
14
09159-16003-000 NUTNut, rear drive output yoke Nut, rear drive pinion; |
09159-16003-000 |
from US $1.67 |
||
|
15
|
15
09160-16029-000 WASHER(16X29X4)Washer, sec drive nut Washer, sec drive nut; 16x29x4 |
09160-16029-000 |
from US $5.58 |
||
|
16
|
16
09160-45004-000
WASHER(45X54X3)
Washer, final driven,lh; 45x54x3 |
09160-45004-000 |
— | ||
|
17
|
17
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket, brg stopper pin; 5.8x13x12 |
09168-06023-000 |
from US $1.51 |
||
|
18
|
18
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket, oil drain plug; 13.8x18.8x0.4 |
09168-14002-000 |
— | ||
| replacement | |||||
|
18
|
18
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket, oil drain plug; 13.8x18.8x0.4 |
09168-14004-000 |
from US $1.22 |
||
|
19
|
19
09247-14001-000
Plug, oil drain
Plug, oil drain; |
09247-14001-000 |
— | ||
| replacement | |||||
|
19
|
19
09247-14002-000 PLUG(MAGNETO)Plug, drain Plug, oil drain; |
09247-14002-000 |
from US $2.43 |
||
|
20
|
20
09247-18001-000 PLUGPlug, gear oil filler Plug, gear oil filler; |
09247-18001-000 |
from US $10.13 |
||
|
21
|
21
09262-25121-000 BEARING(25X52X15)25x52x15 |
09262-25121-000 |
US $20.06 |
||
|
22
|
22
27446-44D00-000 BEARING,FINAL DRIVE GEARBearing, final drive gr 40x80x18 |
27446-44D00-000 |
from US $193.20 |
||
|
23
|
23
09262-70001-000 BEARING(70X110X13)Bearing (70x110x13) Bearing, final driven,rh; 70x110x13 |
09262-70001-000 |
from US $57.60 |
||
|
24
|
24
09263-20062-000 BEARING(20X34X18)Bearing, final drive pilot; 20x34x18 |
09263-20062-000 |
from US $19.01 |
||
|
25
|
25
09280-00020-000 O RING(D:3.6,ID:176.8)O ring, bearing case,rh O ring, bearing case,rh; Id:176.8,dd:3.6 |
09280-00020-000 |
US $28.02 |
||
|
26
|
26
09280-18004-000 O RING(D:2.4,ID:17.8)O ring, front hook O ring, gear oil filler; Id:17.8,dd:2.4 |
09280-18004-000 |
from US $2.56 |
||
|
27
|
27
09280-80001-000 O RING(D:2.4,ID:79.8)O ring, final brg stopper; Id:79.8,dd:2.4 |
09280-80001-000 |
from US $1.98 |
||
|
28
|
28
09280-90001-000 O RING(D:2.4,ID:90.8)O ring, bearing case,lh Id:90.8,dd:2.4 |
09280-90001-000 |
from US $19.87 |
||
|
29
|
29
27156-44D01-000 SEAL,FINAL DRIVEN BEARING OIL |
27156-44D01-000 |
from US $5.35 |
||
|
30
|
30
09283-42011-000 SEAL,OIL(42X62X7)Oil seal, final driven rh Oil seal, final driven,lh; 42x62x7.0 |
09283-42011-000 |
from US $7.29 |
||
|
31
|
31
09283-48011-000 SEAL,OIL(48X88X7)Oil seal, final driven,rh Oil seal, final driven,rh; 48x88x7.0 |
09283-48011-000 |
from US $13.80 |
||
|
32
|
32
09283-49001-000
SEAL,OIL(49X68X7)
49x68x7.0 |
09283-49001-000 |
— | ||
|
33
|
33
09352-70103-00B
HOSE(7X10.2X2000)
Hose, breather; L:2000->140 |
09352-70103-00B |
— | ||
| replacement | |||||
|
33
|
33
09352-70104-00B Hose(7X10.2X2000)Hose, breather; L:2000->140 |
09352-70104-00B |
from US $13.23 |
||
|
34
|
34
09401-10403-000 CLIPClip; |
09401-10403-000 |
from US $0.96 |
||
|
35
|
35
09402-38511-000 CLAMPClamp, rr final dr shaft; |
09402-38511-000 |
from US $4.06 |
||
|
36
|
36
09407-18403-000
Clamp, switch wire
Clamp (l:165); Model w |
09407-18403-000 |
— | ||
| replacement | |||||
|
36
|
36
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); Model w |
09407-18402-000 |
from US $1.98 |
||
|
36
|
36
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); Model x |
09407-18402-000 |
from US $1.98 |
||
|
37
|
37
09440-32004-000 SPRINGSpring, rr Spring, rr; |
09440-32004-000 |
from US $4.47 |
||
|
38
|
38
01421-08203-000
Bolt, exhaust pipe stud
Stud bolt, rr housing; |
01421-08203-000 |
— | ||
| replacement | |||||
|
38
|
38
01421-0820A-000 BOLT,STUDStud bolt, rr housing; |
01421-0820A-000 |
from US $3.03 |
||
|
39
|
39
01421-10303-000
Bolt, rear final gear
Stud bolt, brg case,lh; |
01421-10303-000 |
— | ||
| replacement | |||||
|
39
|
39
01421-1030A-000 BOLT,STUDStud bolt, brg case,lh; |
01421-1030A-000 |
from US $1.60 |
||
|
40
|
40
01550-08253-000
Bolt, rear
Bolt, brg case,rh; |
01550-08253-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0825B-000 BOLTBolt, brg case,rh; |
01550-0825B-000 |
from US $0.96 |
||
|
40
|
40
01550-0825A-000 BOLTBolt, brg case,rh; |
01550-0825A-000 |
from US $1.06 |
||
|
41
|
41
08113-60097-000 BEARINGBearing, driven gr,lh; |
08113-60097-000 |
from US $30.40 |
||
|
42
|
42
08316-10103-000
Nut
Nut, rr lh case; |
08316-10103-000 |
— | ||
| replacement | |||||
|
42
|
42
08316-1010B-000 NUTNut, rr lh case; |
08316-1010B-000 |
from US $0.80 |
||
|
43
|
43
08319-31087-000 NUTNut, rr final housing; |
08319-31087-000 |
from US $1.67 |
||
|
44
|
44
08331-41526-000
Circlip, rear final bearing
Circlip, rr set,brg; |
08331-41526-000 |
— | ||
| replacement | |||||
|
44
|
44
08331-41529-000 CIRCLIPCirclip, rr set,brg; |
08331-41529-000 |
from US $6.07 |
||
|
45
|
45
08331-41526-000
Circlip, rear final bearing
|
08331-41526-000 |
— | ||
| replacement | |||||
|
45
|
45
08331-41529-000 CIRCLIP |
08331-41529-000 |
from US $6.07 |
||
