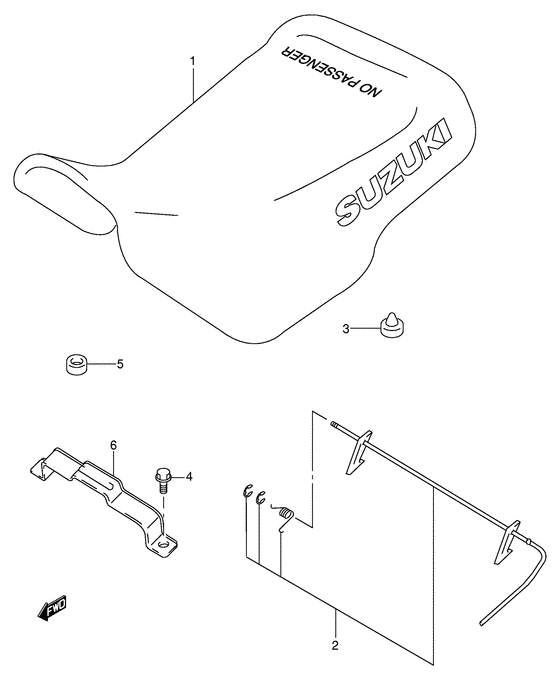

Seat Diagram Suzuki LT-F500F QuadRunner 500 4WD
- Model code
- LT-F500FW
- Year
- 1998
- Sales region
- US/Canada (E3/E28)
- Frame
- JSAAM41A*W2100001~
- 2WD/4WD/AWD
- 4WD
- Model
- QuadRunner 500 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-09F00-K4S
SEAT SET
Model w/x e3 |
45100-09F00-K4S |
— | ||
|
1
|
1
45100-09F20-K4S
Seat set
Model y/k1 e3 |
45100-09F20-K4S |
— | ||
| replacements | |||||
|
1
|
1
45100-09F21-K4S
SEAT ASSY
Model y/k1 e3 |
45100-09F21-K4S |
— | ||
|
1
|
1
45100-09F22-K4S
Seat Assy
Model y/k1 e3 |
45100-09F22-K4S |
— | ||
|
1
|
1
45100-09F40-58P
Seat set
Model k2 e3 |
45100-09F40-58P |
— | ||
| replacement | |||||
|
1
|
1
45100-09F41-58P
SEAT ASSY(BLACK)
Model k2 e3 |
45100-09F41-58P |
— | ||
|
1
|
1
45100-09F10-K4S
SEAT SET
Model w/x e28 |
45100-09F10-K4S |
— | ||
|
1
|
1
45100-09F30-K4S
Seat set
Model y/k1 e28 |
45100-09F30-K4S |
— | ||
| replacement | |||||
|
1
|
1
45100-09F31-K4S
SEAT ASSY
Model y/k1 e28 |
45100-09F31-K4S |
— | ||
|
1
|
1
45100-09F50-58P
Seat set
Model k2 e28 |
45100-09F50-58P |
— | ||
|
2
|
2
45210-09F00-000
Clamp, seat lock
Model w/x |
45210-09F00-000 |
— | ||
|
2
|
2
45210-09F20-000 CLAMP,SEAT LOCKClamp, seat lock Model y/k1/k2 |
45210-09F20-000 |
from US $50.03 |
||
|
3
|
3
09329-10001-000 CUSHIONCushion; |
09329-10001-000 |
from US $1.82 |
||
|
4
|
4
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
45141-09F00-000 CUSHION,MOUNTCushion, seat mount Cushion, seat; |
45141-09F00-000 |
from US $2.94 |
||
|
6
|
6
45119-09F00-000 PLATE,SEAT HOOK FRPlate, seat hook, front |
45119-09F00-000 |
US $19.92 |
||
