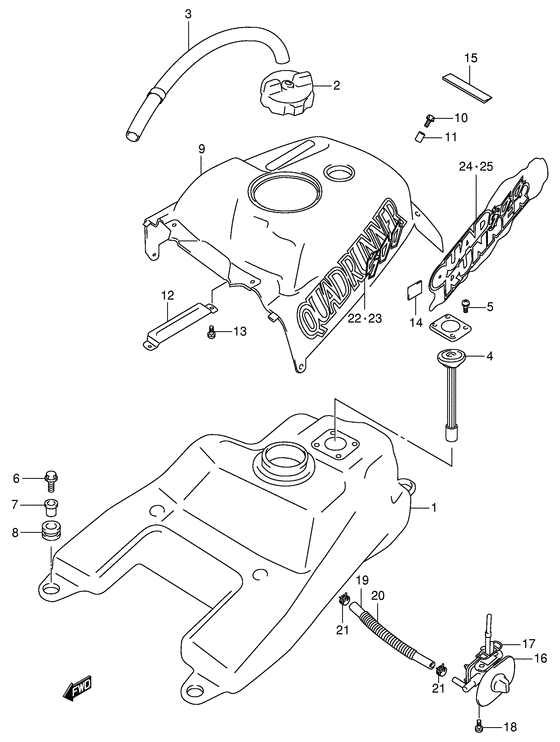

Fuel tank (Model x/y) Diagram Suzuki LT-F500F QuadRunner 500 4WD
- Model code
- LT-F500FX
- Year
- 1999
- Sales region
- US/Canada (E3/E28)
- Frame
- JSAAM41A*X2100001~
- 2WD/4WD/AWD
- 4WD
- Model
- QuadRunner 500 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-09F00-000
Tank assy, fuel
|
44100-09F00-000 |
— | ||
|
2
|
2
44200-20B00-000 CAP,FUEL TANKCap, fuel tank |
44200-20B00-000 |
from US $47.84 |
||
|
3
|
3
44433-09F01-000
Hose, breather
|
44433-09F01-000 |
— | ||
| replacements | |||||
|
3
|
3
44433-09FA0-000
HOSE,FUEL TANK BREATHER
|
44433-09FA0-000 |
— | ||
|
3
|
3
44433-09FA1-000 Hose,fuel Tank Breather |
44433-09FA1-000 |
US $11.41 |
||
|
4
|
4
44580-09F00-000
Gauge, fuel level
|
44580-09F00-000 |
— | ||
| replacement | |||||
|
4
|
4
44580-09F01-000
GAUGE ASSY,FUEL LEVEL
|
44580-09F01-000 |
— | ||
|
5
|
5
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
6
|
6
01570-08353-000
Bolt
|
01570-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0835A-000 Bolt |
01570-0835A-000 |
from US $5.07 |
||
|
7
|
7
09180-08174-000 SPACER(8.6X12X16.1) |
09180-08174-000 |
from US $9.57 |
||
|
8
|
8
09320-12016-000 CUSHIONCushion |
09320-12016-000 |
from US $3.21 |
||
|
9
|
9
44271-09F00-Y9N
COVER,FUEL TANK
Cover, fuel tank (green); |
44271-09F00-Y9N |
— | ||
|
9
|
9
44271-09F00-Y9P
Cover, fuel tank (red)
Cover, fuel tank (red); |
44271-09F00-Y9P |
— | ||
|
10
|
10
01550-06203-000
Bolt
Bolt, rear; |
01550-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0620B-000 BOLTBolt, inspection cap Bolt, rear; |
01550-0620B-000 |
from US $0.76 |
||
|
11
|
11
09180-06267-000 SPACER(6.5X9X12.5) |
09180-06267-000 |
from US $5.59 |
||
|
12
|
12
57950-09F00-000
Plate, lever
|
57950-09F00-000 |
— | ||
|
13
|
13
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
13
|
13
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
13
|
13
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
14
|
14
44281-29C00-000 CushionCushion, duct ctr connector Cushion, side; |
44281-29C00-000 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
63191-25C00-000 CUSHIONCushion, guard Cushion, side; |
63191-25C00-000 |
from US $1.92 |
||
|
15
|
15
47451-38A01-000 CUSHION,TOOL HOLDERCushion, no.2 |
47451-38A01-000 |
from US $2.39 |
||
|
16
|
16
44300-09F01-000
COCK ASSY,FUEL
|
44300-09F01-000 |
— | ||
| replacement | |||||
|
16
|
16
44300-09F02-000 Cock Assy,fuel |
44300-09F02-000 |
from US $113.71 |
||
|
17
|
17
44348-87420-000
GASKET,JOINT
Gasket, joint; |
44348-87420-000 |
— | ||
| replacement | |||||
|
17
|
17
44348-87421-000 Gasket,jointGasket, joint; |
44348-87421-000 |
from US $2.13 |
||
|
18
|
18
02112-36163-000
Screw
|
02112-36163-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-3616B-000 SCREW |
02112-3616B-000 |
from US $0.80 |
||
|
18
|
18
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
|
19
|
19
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) Hose, fuel (l:600->50); |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
19
|
19
44421-12FR0-000 HOSEHose, fuel (l:600->50); |
44421-12FR0-000 |
from US $16.64 |
||
|
20
|
20
09440-13052-000 SPRINGSpring Spring; |
09440-13052-000 |
from US $8.91 |
||
|
21
|
21
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
22
|
22
68111-09F10-M0G
Emblem, tank cover rh
Model x for y9n |
68111-09F10-M0G |
— | ||
| replacement | |||||
|
22
|
22
68111-09F11-M0G
EMBLEM,FUEL TANK COV,R
Model x for y9n |
68111-09F11-M0G |
— | ||
|
22
|
22
68111-09F10-M0H
Emblem, tank cover rh
Model x for y9p |
68111-09F10-M0H |
— | ||
| replacement | |||||
|
22
|
22
68111-09F11-M0H
EMBLEM,FUEL TANK COV,R
Model x for y9p |
68111-09F11-M0H |
— | ||
|
23
|
23
68121-09F10-M0G
Emblem, tank cover lh
Model x for y9n |
68121-09F10-M0G |
— | ||
| replacement | |||||
|
23
|
23
68121-09F11-M0G
EMBLEM,FUEL TANK COV,L
Model x for y9n |
68121-09F11-M0G |
— | ||
|
23
|
23
68121-09F10-M0H
Emblem, tank cover lh
Model x for y9p |
68121-09F10-M0H |
— | ||
| replacement | |||||
|
23
|
23
68121-09F11-M0H
EMBLEM,FUEL TANK COV,L
Model x for y9p |
68121-09F11-M0H |
— | ||
|
24
|
24
68111-09F20-YG6
EMBLEM,FUEL TANK COV,R
Model y for y9n |
68111-09F20-YG6 |
— | ||
|
24
|
24
68111-09F20-YG7
EMBLEM,FUEL TANK COV,R
Model y for y9p |
68111-09F20-YG7 |
— | ||
|
25
|
25
68121-09F20-YG6
EMBLEM,FUEL TANK COV,L
Model y for y9n |
68121-09F20-YG6 |
— | ||
|
25
|
25
68121-09F20-YG7
Emblem, tank cover lh
Model y for y9p |
68121-09F20-YG7 |
— | ||
