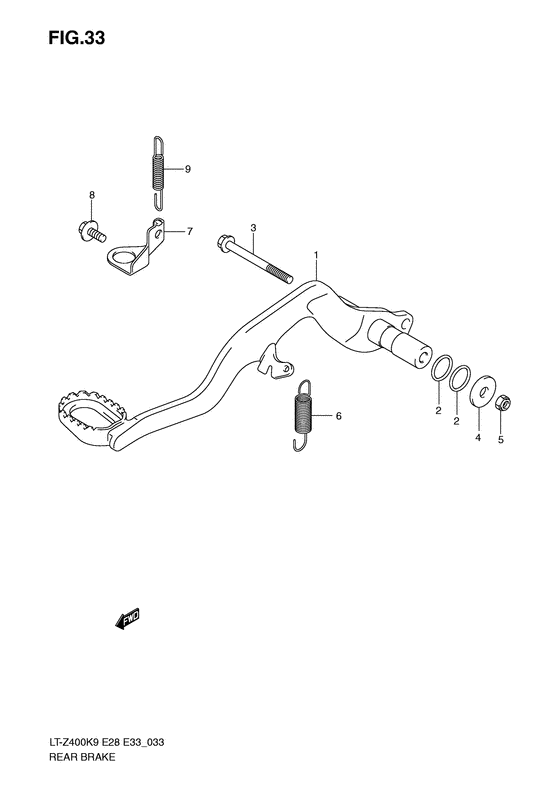

Rear brake Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L0
- Engine Capacity
- 398
- Year
- 2010
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAK4AA*A2100001~
- Power
- 37 hp
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-33H00-000 PEDAL,BRAKE |
43110-33H00-000 |
from US $47.10 |
||
|
2
|
2
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) O ring; |
09280-17002-000 |
from US $2.56 |
||
|
3
|
3
01547-0665A-000 BOLT |
01547-0665A-000 |
from US $0.96 |
||
|
4
|
4
09160-06136-000 WASHER(6.5X28X1.6) |
09160-06136-000 |
from US $0.96 |
||
|
5
|
5
08319-2106A-000 NUT |
08319-2106A-000 |
from US $1.12 |
||
|
6
|
6
09443-11036-000 SPRINGSpring, return; |
09443-11036-000 |
from US $7.45 |
||
|
7
|
7
43251-33H00-000 BRACKET,STOP LAMP SWITCH |
43251-33H00-000 |
from US $5.12 |
||
|
8
|
8
09139-06139-000 SCREW(6X16)Screw |
09139-06139-000 |
from US $1.60 |
||
|
9
|
9
43115-07G00-000 SPRING,STOP LAMP SWITCH |
43115-07G00-000 |
US $9.27 |
