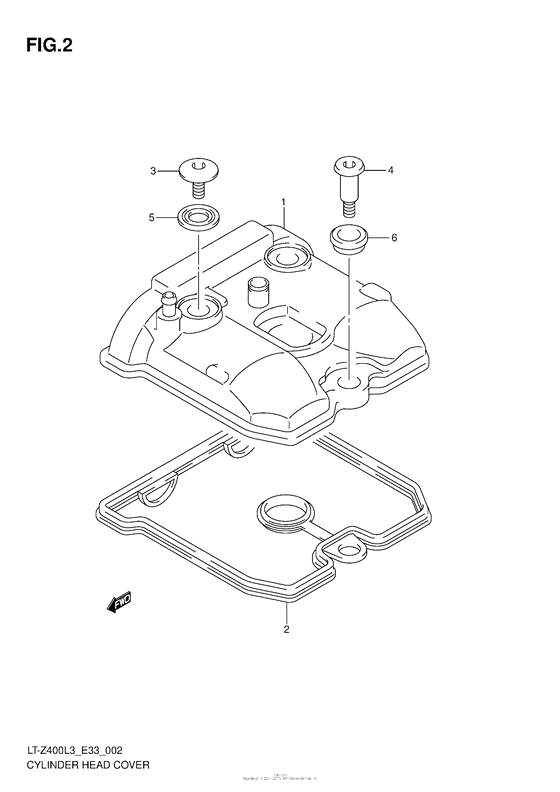

Cylinder Head Cover Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11170-07G10-000 Cover,cylinder head |
11170-07G10-000 |
US $96.78 |
||
|
2
|
2
11173-29F00-000 GASKET,CYL HEAD COVERGasket, cylinder head cover |
11173-29F00-000 |
from US $18.48 |
||
|
3
|
3
09106-07021-000 BOLT(7X17.5) |
09106-07021-000 |
from US $2.72 |
||
|
4
|
4
09106-07010-000 BOLT(7X31) |
09106-07010-000 |
from US $4.32 |
||
|
5
|
5
11191-27E00-000 WASHER,CYL HEAD COVER |
11191-27E00-000 |
from US $3.50 |
||
|
6
|
6
11192-13E00-000 CUSHION,HEAD COVER BOLT |
11192-13E00-000 |
from US $2.43 |
