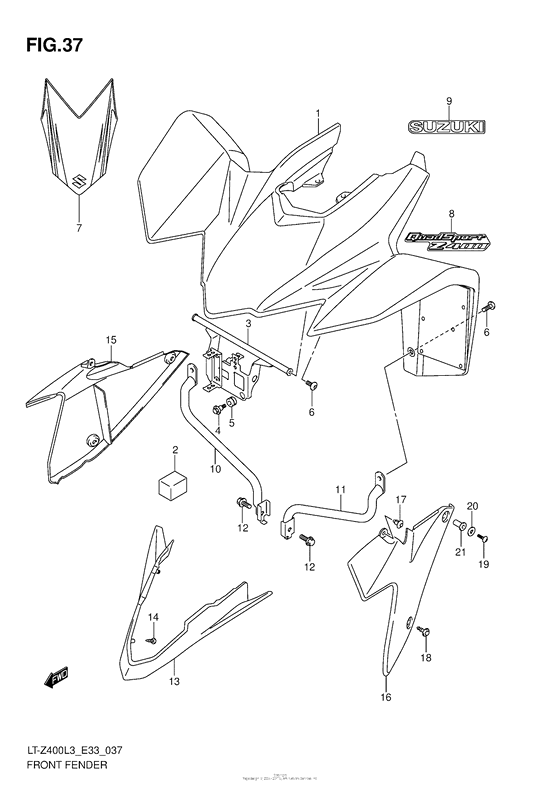

Front Fender Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-33H00-019 FENDER,FR |
53111-33H00-019 |
US $354.82 |
||
|
1
|
1
53111-33H00-30H FENDER,FR |
53111-33H00-30H |
from US $461.57 |
||
|
2
|
2
44558-33H00-000 CUSHION,FUEL TANK COVER NO.2Cushion, front lh |
44558-33H00-000 |
US $4.82 |
||
|
3
|
3
47410-33H00-000 HOLDER,ELECTRIC PARTS |
47410-33H00-000 |
from US $137.63 |
||
|
4
|
4
09111-06092-000 BOLT(6X19)Bolt |
09111-06092-000 |
from US $4.13 |
||
|
5
|
5
09320-08068-000 CUSHION |
09320-08068-000 |
from US $12.29 |
||
|
6
|
6
09139-06158-000 SCREW(6X16) |
09139-06158-000 |
from US $1.52 |
||
|
7
|
7
68155-33H10-HBT TAPE,FR FENDER FR |
68155-33H10-HBT |
US $84.05 |
||
|
7
|
7
68155-33H10-HCL TAPE,FR FENDER FR |
68155-33H10-HCL |
US $80.21 |
||
|
8
|
8
68151-33H00-AHV EMBLEM,FR FENDER |
68151-33H00-AHV |
from US $10.12 |
||
|
8
|
8
68151-33H00-FVJ EMBLEM,FR FENDER |
68151-33H00-FVJ |
US $22.46 |
||
|
9
|
9
68661-29F00-8YM
EMBLEM,SUZUKI
|
68661-29F00-8YM |
— | ||
| replacement | |||||
|
9
|
9
68661-29F01-8YM Emblem,suzuki |
68661-29F01-8YM |
from US $14.17 |
||
|
9
|
9
68661-29F00-BJB
EMBLEM,SUZUKI
|
68661-29F00-BJB |
— | ||
| replacement | |||||
|
9
|
9
68661-29F01-BJB Emblem,suzuki |
68661-29F01-BJB |
from US $14.32 |
||
|
10
|
10
53210-33H00-000 BRACKET,FR FENDER,R |
53210-33H00-000 |
from US $23.18 |
||
|
11
|
11
53220-33H00-000 BRACKET,FR FENDER,L |
53220-33H00-000 |
from US $23.18 |
||
|
12
|
12
09103-08450-000 BOLT(8X16) |
09103-08450-000 |
from US $3.03 |
||
|
13
|
13
53119-45G00-YPW Cover,headlamp |
53119-45G00-YPW |
from US $54.10 |
||
|
13
|
13
53119-45G00-YU1 Cover,headlamp |
53119-45G00-YU1 |
US $116.06 |
||
|
14
|
14
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
15
|
15
53112-33H00-30H COVER,SIDE,R |
53112-33H00-30H |
US $108.53 |
||
|
15
|
15
53112-33H00-YU1 COVER,SIDE,R |
53112-33H00-YU1 |
US $108.53 |
||
|
16
|
16
53122-33H00-30H COVER,SIDE,L |
53122-33H00-30H |
from US $318.56 |
||
|
16
|
16
53122-33H00-YU1 COVER,SIDE,L |
53122-33H00-YU1 |
from US $27.03 |
||
|
17
|
17
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
18
|
18
09409-08327-000 CLIP |
09409-08327-000 |
from US $1.13 |
||
|
19
|
19
02142-0520A-000 SCREWScrew, inner |
02142-0520A-000 |
from US $0.76 |
||
|
20
|
20
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
21
|
21
09159-05045-000 NUT |
09159-05045-000 |
from US $2.89 |
||
