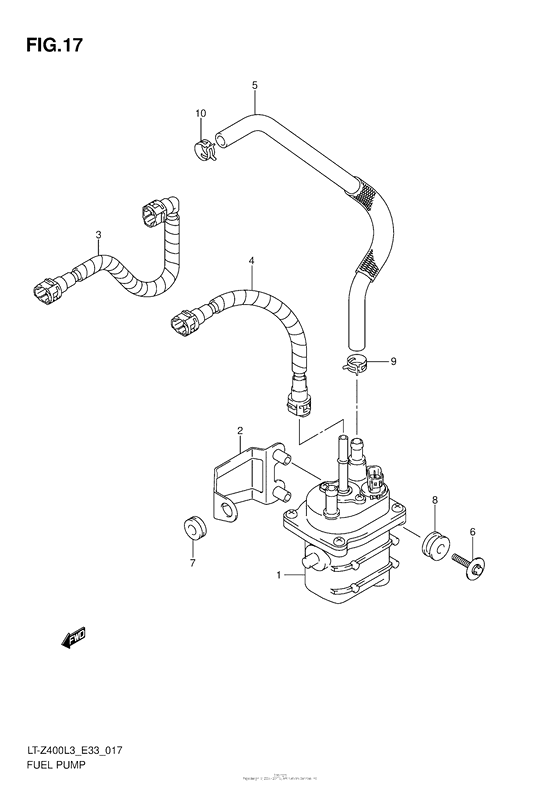

Fuel Pump Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-33H01-000
Pump assy,fuel
|
15100-33H01-000 |
— | ||
| replacements | |||||
|
1
|
1
15100-33H02-000
PUMP ASSY,FUEL
|
15100-33H02-000 |
— | ||
|
1
|
1
15100-33H03-000 Pump Assy,fuel |
15100-33H03-000 |
from US $569.30 |
||
|
2
|
2
15310-33H00-000 BRACKET,FUEL PUMP |
15310-33H00-000 |
US $14.09 |
||
|
3
|
3
15810-33H01-000 HOSE,FUEL |
15810-33H01-000 |
US $73.22 |
||
|
4
|
4
15820-33H01-000 HOSE,FUEL |
15820-33H01-000 |
US $69.19 |
||
|
5
|
5
15831-33H01-000 HOSE,FUEL NO.3 |
15831-33H01-000 |
from US $22.82 |
||
|
6
|
6
09116-06186-000 BOLT(6X25) |
09116-06186-000 |
from US $3.96 |
||
|
7
|
7
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
| replacement | |||||
|
7
|
7
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
8
|
8
09320-10503-000
CUSHION
|
09320-10503-000 |
— | ||
| replacement | |||||
|
8
|
8
09320-10076-000 Cushion |
09320-10076-000 |
from US $3.74 |
||
|
9
|
9
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
10
|
10
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
