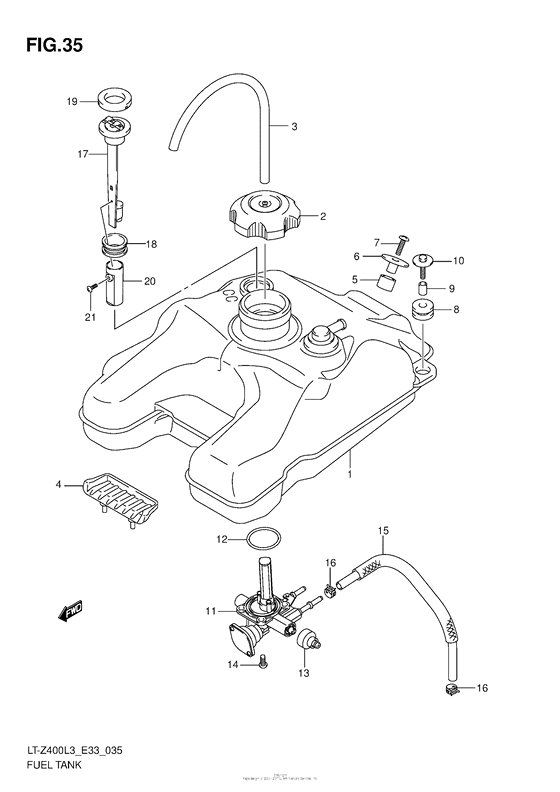

Fuel Tank Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-33HA0-000 TANK ASSY,FUEL |
44100-33HA0-000 |
from US $960.96 |
||
|
2
|
2
44200-29F00-000
CAP ASSY,FUEL TANK FILLER
|
44200-29F00-000 |
— | ||
| replacement | |||||
|
2
|
2
44200-29F01-000 Cap Assy,fuel Tank Filler |
44200-29F01-000 |
from US $37.90 |
||
|
3
|
3
44420-44AR0-000 HOSE SET,FUEL |
44420-44AR0-000 |
US $11.95 |
||
|
4
|
4
44541-33H00-000 CUSHION,FUEL TANK FR |
44541-33H00-000 |
US $6.40 |
||
|
5
|
5
44133-33H00-000 SPACER,SEAT HOOK NO.2 |
44133-33H00-000 |
from US $3.64 |
||
|
6
|
6
44132-33H00-000 SPACER,SEAT HOOK |
44132-33H00-000 |
from US $9.27 |
||
|
7
|
7
02142-0625B-000 SCREW |
02142-0625B-000 |
from US $2.87 |
||
|
8
|
8
44281-03G00-000 CUSHION,FUEL TANK RR |
44281-03G00-000 |
from US $3.31 |
||
|
9
|
9
09180-06293-000 SPACER(6.5X10X14) |
09180-06293-000 |
from US $1.92 |
||
|
10
|
10
09116-06190-000 BOLT(6X25) |
09116-06190-000 |
from US $3.57 |
||
|
11
|
11
44300-33H00-000
COCK ASSY,FUEL
|
44300-33H00-000 |
— | ||
| replacement | |||||
|
11
|
11
44300-33H01-000 Cock Assy,fuel |
44300-33H01-000 |
from US $231.84 |
||
|
12
|
12
44348-33H00-000 O RING,FUEL TANK OUTLET |
44348-33H00-000 |
from US $13.47 |
||
|
13
|
13
44363-33H00-000 CAP,FUEL COCK VALVE |
44363-33H00-000 |
from US $3.64 |
||
|
14
|
14
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
15
|
15
44421-33H01-000 HOSE,FUEL |
44421-33H01-000 |
from US $39.01 |
||
|
16
|
16
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
17
|
17
34810-45G00-000
GAUGE ASSY,FUEL LEVEL SENDER
|
34810-45G00-000 |
— | ||
| replacement | |||||
|
17
|
17
34810-45G01-000 Gauge Assy,fuel Level Sender |
34810-45G01-000 |
from US $75.81 |
||
|
18
|
18
34825-45G00-000 PACKING,FUEL LEVEL SWITCHPacking, level switch |
34825-45G00-000 |
from US $5.67 |
||
|
19
|
19
34813-45G00-000 RETAINER,FUEL LEVEL SWITCHRetainer, level switch |
34813-45G00-000 |
from US $3.90 |
||
|
20
|
20
34827-45G00-000 COVER,FUEL LEVEL GAUGE |
34827-45G00-000 |
US $5.12 |
||
|
21
|
21
02142-0408A-000 SCREW |
02142-0408A-000 |
from US $2.13 |
||
