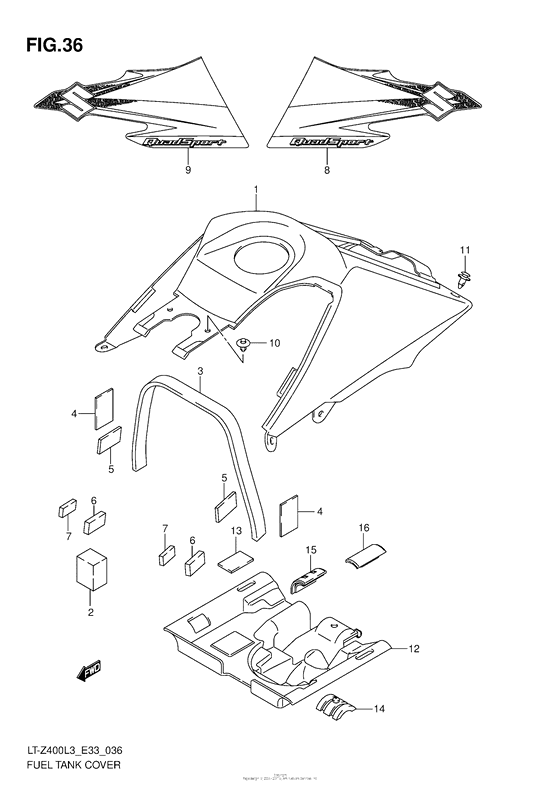

Fuel Tank Cover Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44271-33H01-30H COVER,FUEL TANK(WHITE) |
44271-33H01-30H |
US $240.02 |
||
|
1
|
1
44271-33H01-YU1 COVER,FUEL TANK(YELLOW) |
44271-33H01-YU1 |
from US $112.24 |
||
|
2
|
2
44558-33H00-000 CUSHION,FUEL TANK COVER NO.2Cushion, front lh |
44558-33H00-000 |
US $4.82 |
||
|
3
|
3
44559-33H00-000 CUSHION,FUEL TANK COVER NO.3 |
44559-33H00-000 |
from US $2.91 |
||
|
4
|
4
51553-15D40-000 CUSHION(50X42X2.0)Cushion, clutch cover |
51553-15D40-000 |
from US $2.29 |
||
|
5
|
5
44554-33H01-000 CUSHION,TANK COVER |
44554-33H01-000 |
from US $5.92 |
||
|
6
|
6
44557-33H00-000 CUSHION,FUEL TANK COVER NO.1 |
44557-33H00-000 |
from US $4.82 |
||
|
7
|
7
51827-01A00-000 CUSHION,HEAD LAMP HOUSING |
51827-01A00-000 |
from US $5.02 |
||
|
8
|
8
68115-33H10-HBP TAPE,FUEL TANK COVER,R |
68115-33H10-HBP |
from US $61.46 |
||
|
8
|
8
68115-33H10-HBS TAPE,FUEL TANK COVER,R |
68115-33H10-HBS |
from US $61.46 |
||
|
9
|
9
68116-33H10-HBP TAPE,FUEL TANK COVER,L |
68116-33H10-HBP |
from US $61.46 |
||
|
9
|
9
68116-33H10-HBS TAPE,FUEL TANK COVER,L |
68116-33H10-HBS |
from US $61.46 |
||
|
10
|
10
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
11
|
11
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
12
|
12
44391-33H00-000 COVER,FUEL TANK LWR |
44391-33H00-000 |
from US $32.75 |
||
|
13
|
13
44555-33H00-000 CUSHION,TANK COVER LWR NO.1 |
44555-33H00-000 |
from US $5.37 |
||
|
14
|
14
44542-33H00-000 CUSHION,TANK COVER LWR RR |
44542-33H00-000 |
US $6.40 |
||
|
15
|
15
44542-45G00-000
CUSHION,FUEL TANK SIDE
|
44542-45G00-000 |
— | ||
| replacement | |||||
|
15
|
15
44542-45G01-000 Cushion,fuel Tank Side |
44542-45G01-000 |
US $4.82 |
||
|
16
|
16
44543-33H00-000 CUSHION,TANK COVER LWR SIDE RR |
44543-33H00-000 |
US $6.40 |
||
