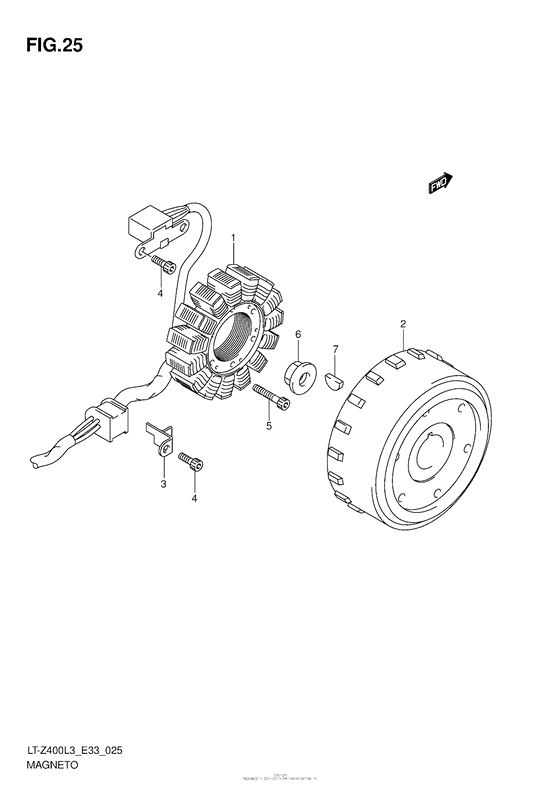

Magneto Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-33H00-000
STATOR ASSY
|
32101-33H00-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-33H01-000 Stator Assy |
32101-33H01-000 |
US $602 |
||
|
2
|
2
32102-33H00-000 ROTOR ASSY |
32102-33H00-000 |
US $781.18 |
||
|
3
|
3
32371-33H00-000 CLAMP,MAGNETO LEAD |
32371-33H00-000 |
US $2.72 |
||
|
4
|
4
07130-0512A-000 BOLTBolt, pulser/clamp |
07130-0512A-000 |
from US $0.91 |
||
|
5
|
5
07130-0630A-000 Bolt |
07130-0630A-000 |
from US $5.07 |
||
|
6
|
6
31792-07G00-000 NUT,MAGNETO ROTOR |
31792-07G00-000 |
from US $8.48 |
||
|
7
|
7
09420-04008-000 KEY |
09420-04008-000 |
from US $1.76 |
||
