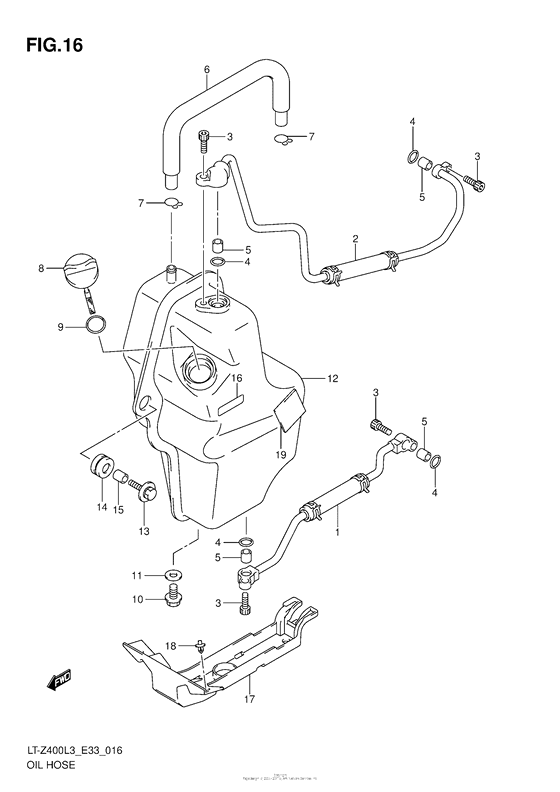

Oil Hose Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16460-07G20-000 HOSE,OIL TANK,R |
16460-07G20-000 |
from US $71.02 |
||
|
2
|
2
16470-07G20-000 HOSE,OIL TANK,L |
16470-07G20-000 |
from US $83.54 |
||
|
3
|
3
07130-0620A-000 BOLT |
07130-0620A-000 |
from US $0.91 |
||
|
4
|
4
09280-11005-000 O RING(D:2.4,ID:11)O ring (d:2.4,id:10.8) |
09280-11005-000 |
from US $2.43 |
||
|
5
|
5
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
6
|
6
16480-07G10-000 HOSE,OIL TANK OVER FLOW |
16480-07G10-000 |
from US $17.41 |
||
|
7
|
7
09401-12403-000 CLIPClip |
09401-12403-000 |
from US $1.60 |
||
|
8
|
8
11971-07G00-000 GAUGE,OIL LEVEL |
11971-07G00-000 |
from US $6.96 |
||
|
9
|
9
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap |
09280-17003-000 |
from US $1.51 |
||
|
10
|
10
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
11
|
11
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
12
|
12
16410-07G00-000 TANK,OIL |
16410-07G00-000 |
from US $253.92 |
||
|
13
|
13
09118-06097-000 BOLT(6X25) |
09118-06097-000 |
from US $0.91 |
||
|
14
|
14
09320-10042-000 CUSHION |
09320-10042-000 |
from US $1.67 |
||
|
15
|
15
09180-06290-000 SPACER(6.5X10X12)Spacer, 6.5x10x12 |
09180-06290-000 |
from US $1.76 |
||
|
16
|
16
68322-07G00-000 NOTE,ENGINE OIL |
68322-07G00-000 |
from US $3.64 |
||
|
17
|
17
16421-07G10-000 PROTECTOR,OIL TANK |
16421-07G10-000 |
from US $7.95 |
||
|
18
|
18
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
19
|
19
51553-15D40-000 CUSHION(50X42X2.0)Cushion, clutch cover |
51553-15D40-000 |
from US $2.29 |
