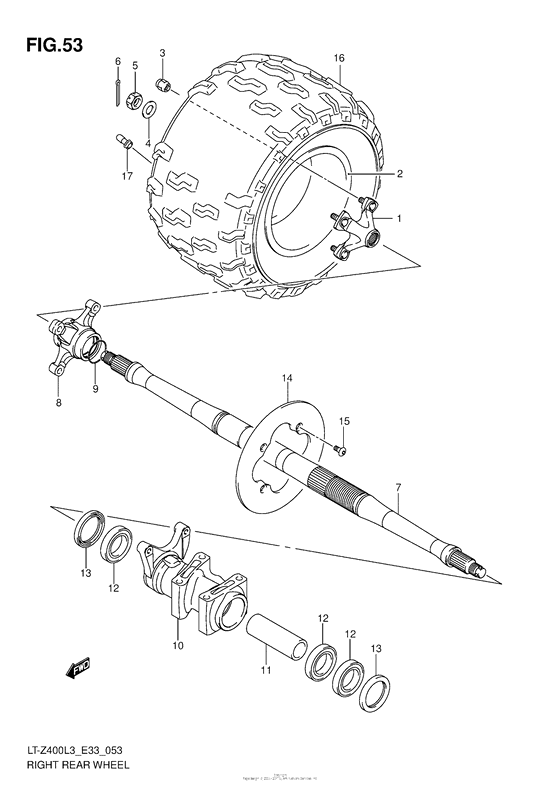

Right Rear Wheel Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-45G01-000 HUB,RR |
64110-45G01-000 |
from US $148.72 |
||
|
2
|
2
65310-07G10-000 RIM,RR WHEEL |
65310-07G10-000 |
from US $353.28 |
||
|
3
|
3
09159-10114-000 NUT |
09159-10114-000 |
from US $4.48 |
||
|
4
|
4
09164-20002-000 WASHER |
09164-20002-000 |
from US $2.43 |
||
|
5
|
5
09141-20009-000 NUT |
09141-20009-000 |
from US $33.10 |
||
|
6
|
6
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
7
|
7
64711-33H00-000 AXLE,RR |
64711-33H00-000 |
from US $496.32 |
||
|
8
|
8
69212-33H00-000 HOUSING,RR DISC PLATE |
69212-33H00-000 |
US $288.92 |
||
|
9
|
9
09281-40001-000 SEAL,DUST(D:1.6,ID:39.8)Seal, rr disc housing dust |
09281-40001-000 |
from US $9.66 |
||
|
10
|
10
64715-33H00-000 HOUSING,RR AXLE BEARING |
64715-33H00-000 |
from US $195.04 |
||
|
11
|
11
64731-45G00-000 SPACER,RR AXLE BEARING |
64731-45G00-000 |
US $84.24 |
||
|
12
|
12
09262-40020-000 BEARING |
09262-40020-000 |
US $88.26 |
||
|
13
|
13
09283-52005-000 SEAL,OIL(52X62X7) |
09283-52005-000 |
US $20.64 |
||
|
14
|
14
69211-07G00-000 DISC,RR BRAKE |
69211-07G00-000 |
from US $150.51 |
||
|
15
|
15
09106-08160-000 BOLT(8X21)Bolt, brake disc |
09106-08160-000 |
from US $1.67 |
||
|
16
|
16
65110-07G00-000 TIRE,RR |
65110-07G00-000 |
from US $242.88 |
||
|
17
|
17
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
