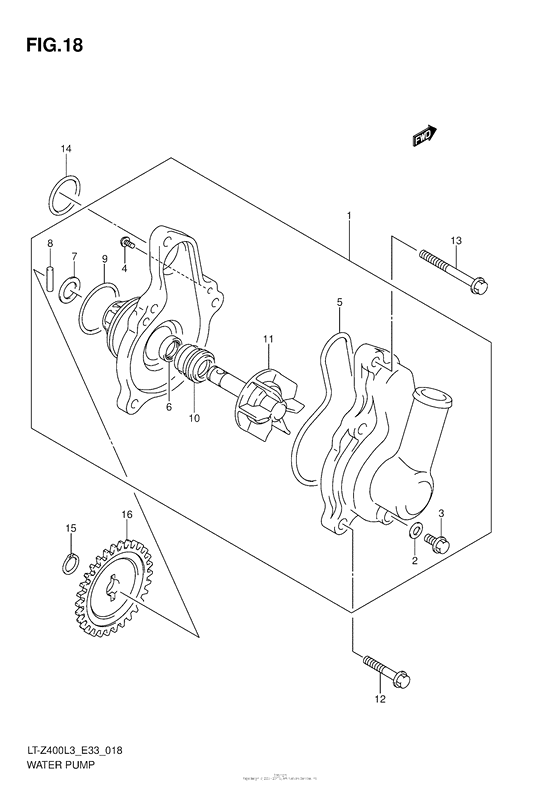

Water Pump Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400L3
- Engine Capacity
- 398
- Year
- 2013
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-33H00-000
PUMP ASSY,WATER
|
17400-33H00-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-33H01-000 Pump Assy,water |
17400-33H01-000 |
from US $211.07 |
||
|
2
|
2
17413-28C10-000 WASHER |
17413-28C10-000 |
from US $1.60 |
||
|
3
|
3
17415-43D00-000 BOLT |
17415-43D00-000 |
from US $1.60 |
||
|
4
|
4
17416-07G00-000 SCREW |
17416-07G00-000 |
from US $2.36 |
||
|
5
|
5
17418-07G00-000 O RING |
17418-07G00-000 |
US $13.79 |
||
|
6
|
6
17461-48G00-000 SEAL,OIL |
17461-48G00-000 |
from US $9.42 |
||
|
7
|
7
17432-07G00-000 WASHER |
17432-07G00-000 |
from US $1.60 |
||
|
8
|
8
17433-07G00-000 PIN |
17433-07G00-000 |
from US $1.91 |
||
|
9
|
9
17435-33400-000 O RING,WATER PUMP HOLDER |
17435-33400-000 |
from US $9.42 |
||
|
10
|
10
17470-02F01-000 SEAL,MECHANICALSeal, mechanical |
17470-02F01-000 |
from US $26.68 |
||
|
11
|
11
17491-07G00-000 IMPELLER/SHAFT |
17491-07G00-000 |
US $60.06 |
||
|
12
|
12
09103-06204-000 BOLT(6X30) |
09103-06204-000 |
from US $1.28 |
||
|
13
|
13
09103-06209-000 BOLT(6X45) |
09103-06209-000 |
from US $4.49 |
||
|
14
|
14
09280-22001-000 O RING(D:2.4,ID:21.8)O-ring (d:2.4,id:21.8) |
09280-22001-000 |
from US $1.67 |
||
|
15
|
15
08331-31109-000 CIRCLIP |
08331-31109-000 |
from US $0.96 |
||
|
16
|
16
17461-29F00-000 GEAR,WATER PUMP DRIVEN |
17461-29F00-000 |
from US $16.80 |
||
