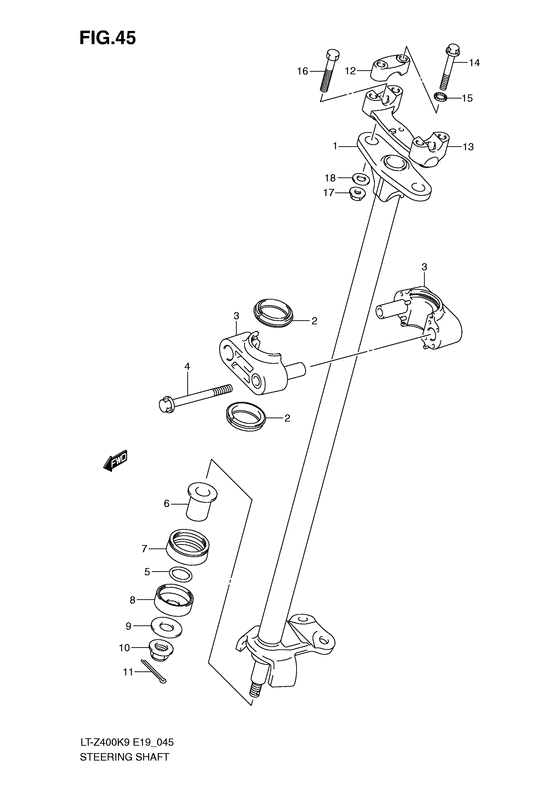

Steering shaft Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400ZK9
- Engine Capacity
- 398
- Year
- 2009
- Sales region
- Belgium (E19)
- Frame
- JSAAK4AA*92100001~
- Power
- 37 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51650-33H00-000 SHAFT,STEERING |
51650-33H00-000 |
from US $253.92 |
||
|
2
|
2
51678-24500-000 SEAL,STEERING SHAFT HLDR DUSTDust seal, steering Dust seal, steering holder (27x38x8.5); |
51678-24500-000 |
from US $2.72 |
||
|
3
|
3
51670-24500-000 HOLDER,STEERING SHAFTHolder, steering shaft |
51670-24500-000 |
from US $15.20 |
||
|
4
|
4
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
5
|
5
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); |
09280-17003-000 |
from US $1.51 |
||
|
6
|
6
51661-09F00-000 BUSH,STEERING LWRBush, steering shaft lower (17x26x36.9) Bush, steering shaft lower (17x26x36.9); |
51661-09F00-000 |
from US $15.96 |
||
|
7
|
7
51662-05G00-000
SEAL,STEERING SHAFT DUST
Dust seal, steering shaft (30x40x16); |
51662-05G00-000 |
— | ||
| replacement | |||||
|
7
|
7
51662-05G01-000 Seal,dustDust seal, steering shaft (30x40x16); |
51662-05G01-000 |
from US $5.28 |
||
|
8
|
8
51663-05G00-000
SEAL,STEERING LWR DUST
Dust seal, steering lower (12.2x38x12); |
51663-05G00-000 |
— | ||
| replacement | |||||
|
8
|
8
51663-05G01-000 Seal,dustDust seal, steering lower (12.2x38x12); |
51663-05G01-000 |
from US $6.16 |
||
|
9
|
9
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) Washer (12.5x32x2.3); |
09160-12073-000 |
from US $0.96 |
||
|
10
|
10
08319-3112B-000 NUT |
08319-3112B-000 |
from US $1.98 |
||
|
11
|
11
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
12
|
12
56211-45G20-291 CLAMP,HANDLE HOLDER UPRClamp, handlebar upper (black) Clamp, handle holder upper (black); |
56211-45G20-291 |
from US $15.79 |
||
|
13
|
13
56211-45G10-291 CLAMP,HANDLE HOLDERClamp, handle holder lower (black); |
56211-45G10-291 |
from US $65.50 |
||
|
14
|
14
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
15
|
15
09164-08015-000 WASHERWasher; |
09164-08015-000 |
from US $1.52 |
||
|
16
|
16
01500-1035B-000 BOLTBolt, handle holder; |
01500-1035B-000 |
from US $4.10 |
||
|
17
|
17
08319-3110B-000 NUT |
08319-3110B-000 |
from US $5.27 |
||
|
18
|
18
09160-10128-XC0 WASHER(10.5X25X3.2) |
09160-10128-XC0 |
from US $3.35 |
||
