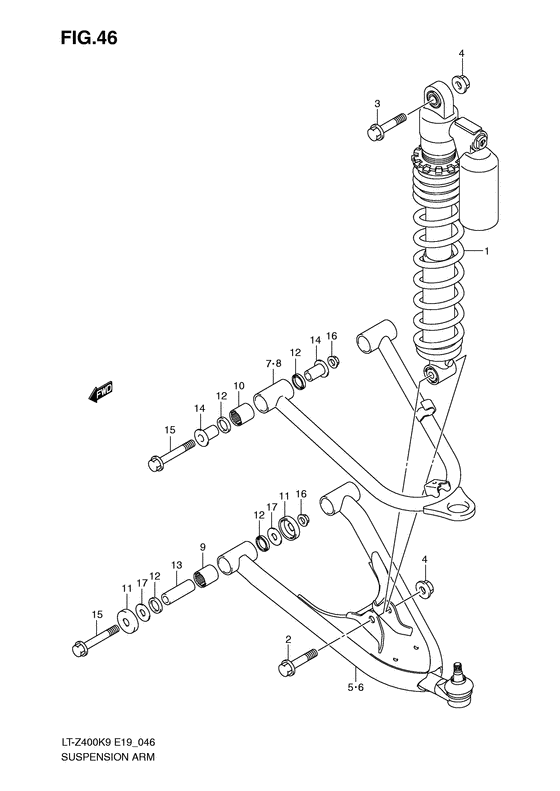

Suspension arm Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400ZK9
- Engine Capacity
- 398
- Year
- 2009
- Sales region
- Belgium (E19)
- Frame
- JSAAK4AA*92100001~
- Power
- 37 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-33H10-YKS ABSORBER ASSY,FR SHOCK(RED)Absorber assy, front shock (red) Absorber assy, front shock (red); |
52100-33H10-YKS |
US $1,136.96 |
||
|
1
|
1
52100-33H10-28W
ABSORBER ASSY,FR SHOCK(WHITE)
Absorber assy, front shock (white); |
52100-33H10-28W |
— | ||
|
2
|
2
09103-10352-000 BOLT(10X48)Bolt (10x48) Bolt, lower (10x48); |
09103-10352-000 |
from US $8.01 |
||
|
3
|
3
09103-10351-000 BOLT(10X38)Bolt, upper Bolt, upper (10x38); |
09103-10351-000 |
from US $8.45 |
||
|
4
|
4
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
5
|
5
52410-33H00-YBA
ARM,SUSPENSION LWR,R
Arm assy, suspension lower rh (blue); Lt-z400k9 |
52410-33H00-YBA |
— | ||
|
5
|
5
52410-33H00-019
ARM ASSY,SUSPENSION LWR,R
Arm assy, suspension lower rh (black); Lt-z400zk9 |
52410-33H00-019 |
— | ||
|
5
|
5
52410-33H00-YD8 ARM ASSY,SUSPENSION LWR,RArm assy, suspension lower rh (silver); Lt-z400l0/zl0 |
52410-33H00-YD8 |
from US $198.72 |
||
|
6
|
6
52420-33H00-YBA ARM,SUSPENSION LWR,LArm assy, suspension lower lh (blue) Arm assy, suspension lower lh (blue); Lt-z400k9 |
52420-33H00-YBA |
from US $239.20 |
||
|
6
|
6
52420-33H00-019 ARM ASSY,SUSPENSION LWR,LArm assy, suspension lower lh (blue); Lt-z400zk9 |
52420-33H00-019 |
from US $179.22 |
||
|
6
|
6
52420-33H00-YD8 ARM ASSY,SUSPENSION LWR,LArm assy, suspension lower lh (silver); Lt-z400l0/zl0 |
52420-33H00-YD8 |
US $297.12 |
||
|
7
|
7
52430-33H00-YBA ARM,SUSPENSION UPR,RArm assy, suspension upper rh (blue) Arm assy, suspension upper rh (blue); Lt-z400k9 |
52430-33H00-YBA |
from US $178.01 |
||
|
7
|
7
52430-33H00-019
ARM,SUSPENSION UPR,R
Arm assy, suspension upper rh (black); Lt-z400zk9 |
52430-33H00-019 |
— | ||
|
7
|
7
52430-33H00-YD8 ARM,SUSPENSION UPR,RArm assy, suspension upper rh (silver); Lt-z400l0/zl0 |
52430-33H00-YD8 |
from US $119.23 |
||
|
8
|
8
52440-33H00-YBA ARM,SUSPENSION UPR,LArm assy, suspension upper lh (blue) Arm assy, suspension upper lh (blue); Lt-z400k9 |
52440-33H00-YBA |
from US $178.01 |
||
|
8
|
8
52440-33H00-019
Arm comp,suspension upper,l
Arm assy, suspension upper lh (black); Lt-z400zk9 |
52440-33H00-019 |
— | ||
|
8
|
8
52440-33H00-YD8 ARM,SUSPENSION UPR,LArm assy, suspension upper lh (silver); Lt-z400l0/zl0 |
52440-33H00-YD8 |
from US $119.23 |
||
|
9
|
9
09263-17034-000
BEARING(17X24X26)
Bearing, suspension arm pivot (17x24x26); |
09263-17034-000 |
— | ||
| replacement | |||||
|
9
|
9
09263-17057-000 BearingBearing, suspension arm pivot (17x24x26); |
09263-17057-000 |
from US $12.46 |
||
|
10
|
10
09263-17048-000 BEARING(17X24X27.5)Bearing, upper (17x24x27.5); |
09263-17048-000 |
from US $7.90 |
||
|
11
|
11
52454-43B00-000
SEAL,SUSPENSION ARM PIVOT DUST
Seal, suspension arm pivot dust; |
52454-43B00-000 |
— | ||
| replacement | |||||
|
11
|
11
52454-43B01-000 Seal,dustSeal, suspension arm pivot dust; |
52454-43B01-000 |
from US $5.56 |
||
|
12
|
12
09285-17001-000
SEAL,OIL(17X24X3)
Seal, pivot inner dust; |
09285-17001-000 |
— | ||
| replacement | |||||
|
12
|
12
09285-17007-000 Seal,oilSeal, pivot inner dust; |
09285-17007-000 |
from US $1.68 |
||
|
13
|
13
52455-43B00-000 SPACER,SUSPENSION ARM PIVOTSpacer, lower Spacer, lower; |
52455-43B00-000 |
from US $11.63 |
||
|
14
|
14
52455-07G00-000 SPACER,SPNSN ARM PIVOT UPR |
52455-07G00-000 |
from US $14.68 |
||
|
15
|
15
09103-10033-000 BOLT(10X70)Bolt (10x70); |
09103-10033-000 |
from US $2.58 |
||
|
16
|
16
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
17
|
17
08211-10281-000 WASHER |
08211-10281-000 |
from US $3.21 |
||
