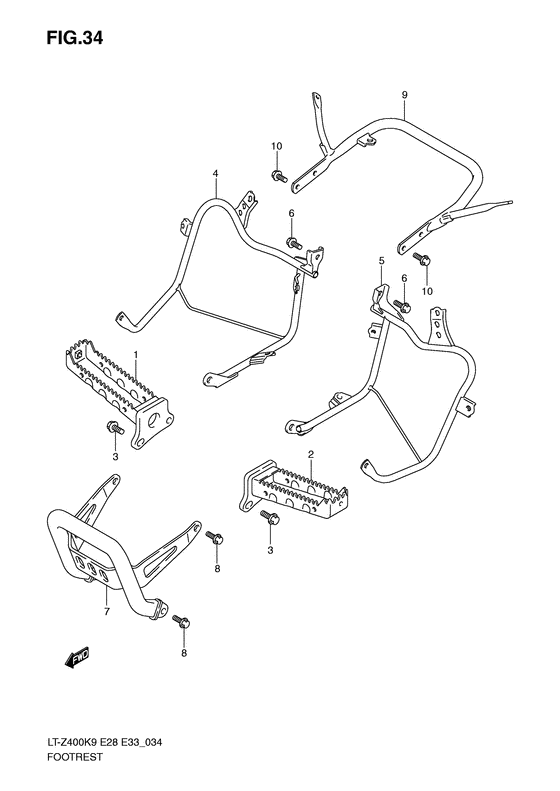

Footrest Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400ZL0
- Engine Capacity
- 398
- Year
- 2010
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAK4AA*A2100001~
- Power
- 37 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-33H00-000 FOOTREST,R |
43510-33H00-000 |
from US $52.26 |
||
|
2
|
2
43520-33H00-000 FOOTREST,L |
43520-33H00-000 |
US $52.26 |
||
|
3
|
3
09103-10378-000 BOLT(10X25)Bolt, front |
09103-10378-000 |
from US $1.67 |
||
|
4
|
4
43570-33H00-000 REINF,MUDGUARD,R |
43570-33H00-000 |
US $280.04 |
||
|
5
|
5
43580-33H00-000 REINF,MUDGUARD,L |
43580-33H00-000 |
from US $130.64 |
||
|
6
|
6
09103-08283-A05
BOLT(8X16)
|
09103-08283-A05 |
— | ||
| replacement | |||||
|
6
|
6
09103-08570-000 Bolt,front Grip |
09103-08570-000 |
from US $3.69 |
||
|
7
|
7
43990-33H00-000 GRIP,FR |
43990-33H00-000 |
US $272.44 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
43980-33H00-YD8 GRIP,RRGrip, rear (silver); |
43980-33H00-YD8 |
US $224.88 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
