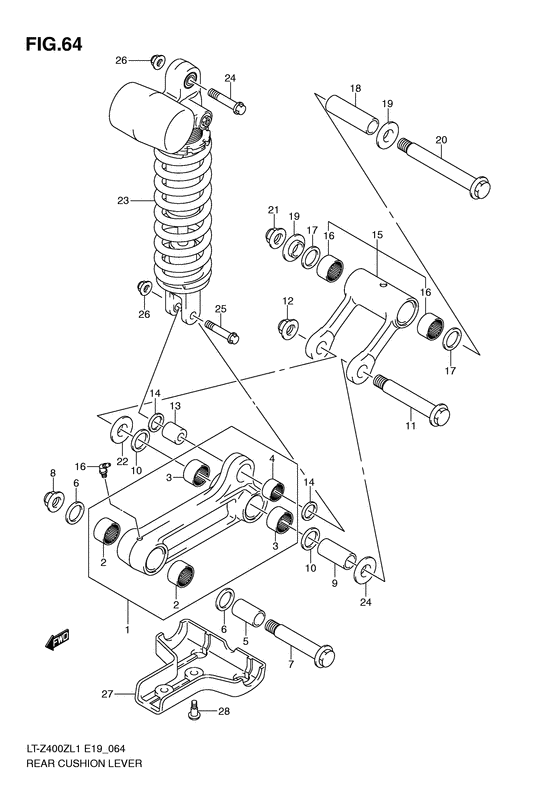

Rear cushion lever (Lt-z400l1 e19) Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400ZL1
- Engine Capacity
- 398
- Year
- 2011
- Sales region
- Belgium (E19)
- Frame
- JSAAK4AA*B2100001~
- Power
- 37 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62600-07840-000 LEVER SET,RR CUSHION |
62600-07840-000 |
from US $318.32 |
||
|
2
|
2
09263-20086-000 BEARING(20X27X15)Bearing, front (20x27x15) Bearing (20x27x15); Front |
09263-20086-000 |
from US $8.32 |
||
|
3
|
3
09263-20086-000 BEARING(20X27X15)Bearing, front (20x27x15) Bearing (20x27x15); Center |
09263-20086-000 |
from US $8.32 |
||
|
4
|
4
09263-20083-000 BEARING(20X26X12)Bearing, center (20x26x12) Bearing, (20x26x12); Rear |
09263-20083-000 |
from US $13.22 |
||
|
5
|
5
62317-37F00-000 SPACER,RR CUSHION LEVER FRSpacer, front; |
62317-37F00-000 |
from US $11.33 |
||
|
6
|
6
62624-14500-000 SEAL,CUSHION LEVER DUSTSeal, front dust Seal, front dust; |
62624-14500-000 |
US $9.37 |
||
| replacement | |||||
|
6
|
6
62647-44A00-000 SEAL,CUSHION LEVER OUT DUSTSeal, dust (20x27x4) Seal, front dust; |
62647-44A00-000 |
from US $3.65 |
||
|
7
|
7
62658-07G00-000 BOLT,RR CUSHION LEVER FR |
62658-07G00-000 |
from US $11.63 |
||
|
8
|
8
09159-12056-000 NUT |
09159-12056-000 |
from US $5.32 |
||
|
9
|
9
62646-33H10-000 SPACER,RR CUSHION LEVER CTR |
62646-33H10-000 |
US $13.28 |
||
|
10
|
10
62624-14500-000 SEAL,CUSHION LEVER DUSTSeal, front dust Seal, center dust; |
62624-14500-000 |
US $9.37 |
||
| replacement | |||||
|
10
|
10
62647-44A00-000 SEAL,CUSHION LEVER OUT DUSTSeal, dust (20x27x4) Seal, center dust; |
62647-44A00-000 |
from US $3.65 |
||
|
11
|
11
62621-37F00-000 BOLT,RR CUSHIONBolt, center |
62621-37F00-000 |
from US $12.36 |
||
|
12
|
12
09159-12056-000 NUT |
09159-12056-000 |
from US $5.32 |
||
|
13
|
13
62684-36E00-000 SPACER,RR CUSHION LEVER RRSpacer, center Spacer, rear; |
62684-36E00-000 |
from US $7.75 |
||
|
14
|
14
09284-20001-000 SEAL,OIL(20X26X4.5)Seal, center dust Oil seal (20x26x4.5); |
09284-20001-000 |
from US $3.65 |
||
|
15
|
15
62601-33820-000 ROD SET,RR CUSHION |
62601-33820-000 |
from US $128.43 |
||
|
16
|
16
09263-20086-000 BEARING(20X27X15)Bearing, front (20x27x15) Bearing (20x27x15); |
09263-20086-000 |
from US $8.32 |
||
|
17
|
17
62624-14500-000 SEAL,CUSHION LEVER DUSTSeal, front dust Seal, dust; |
62624-14500-000 |
US $9.37 |
||
| replacement | |||||
|
17
|
17
62647-44A00-000 SEAL,CUSHION LEVER OUT DUSTSeal, dust (20x27x4) Seal, dust; |
62647-44A00-000 |
from US $3.65 |
||
|
18
|
18
62646-33H00-000 SPACER,RR CUSHION ROD |
62646-33H00-000 |
US $15.16 |
||
|
19
|
19
62647-37F00-000 SPACER,RR CUSH ROD SIDESpacer, cushion lever side Spacer, rod side; |
62647-37F00-000 |
from US $9.24 |
||
|
20
|
20
62621-07G00-000 BOLT,RR CUSHION ROD |
62621-07G00-000 |
from US $14.17 |
||
|
21
|
21
09159-12056-000 NUT |
09159-12056-000 |
from US $5.32 |
||
|
22
|
22
08211-20323-000 WASHERWasher; |
08211-20323-000 |
from US $4.13 |
||
|
23
|
23
62100-33H10-YKS ABSORBER ASSY,RR SHOCKAbsorber assy, rear shock (red) Absorber assy, rear shock (red); |
62100-33H10-YKS |
US $1,393.20 |
||
|
24
|
24
09103-10301-000 BOLT(10X60)Bolt (10x60) Bolt (10x60); Upper |
09103-10301-000 |
from US $8.16 |
||
|
25
|
25
09103-10149-000 BOLT(10X47.5)Bolt, lower Bolt (10x47.5); Lower |
09103-10149-000 |
from US $1.82 |
||
|
26
|
26
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
27
|
27
62681-07G00-000 GUARD,RR CUSHION LEVER |
62681-07G00-000 |
US $29.27 |
||
|
28
|
28
09139-06120-000 SCREW(6X16)Screw Screw (6x16); |
09139-06120-000 |
from US $1.22 |
||
