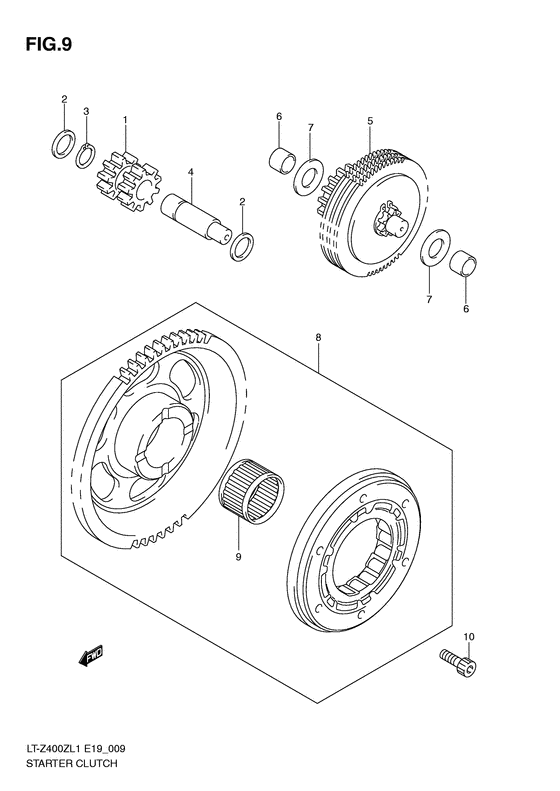

Starter clutch Diagram Suzuki LT-Z400 QuadSport
- Model code
- LT-Z400ZL1
- Engine Capacity
- 398
- Year
- 2011
- Sales region
- Belgium (E19)
- Frame
- JSAAK4AA*B2100001~
- Power
- 37 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12611-07G00-000 GEAR,STARTER IDLE NO.1 |
12611-07G00-000 |
US $68.70 |
||
|
2
|
2
09181-12130-000 SHIM(12X18X0.5)Washer, lower (t:0.5) Shim (12x18x0.5); |
09181-12130-000 |
from US $3.25 |
||
|
3
|
3
08331-3112A-000 CIRCLIP |
08331-3112A-000 |
from US $0.91 |
||
|
4
|
4
12615-07G00-000 SHAFT,STARTER IDLE GEAR NO.1 |
12615-07G00-000 |
from US $10.78 |
||
|
5
|
5
12600-29F10-000 LIMITER ASSY,STARTER IDLE GEAR |
12600-29F10-000 |
from US $161.18 |
||
|
6
|
6
12618-31G00-000 BUSH,LIMITER GEAR SHAFTBush, limiter gear shaft |
12618-31G00-000 |
from US $2.88 |
||
|
7
|
7
08211-10221-000 WASHERWasher; |
08211-10221-000 |
from US $1.22 |
||
|
8
|
8
12600-29810-000 Clutch Set, Starter |
12600-29810-000 |
from US $193.60 |
||
|
9
|
9
09263-25049-000 BEARING(25X31X19)Bearing (25x31x19); |
09263-25049-000 |
from US $14.14 |
||
|
10
|
10
09106-06125-000 BOLT(6X20)Bolt (6x20); |
09106-06125-000 |
from US $4.64 |
