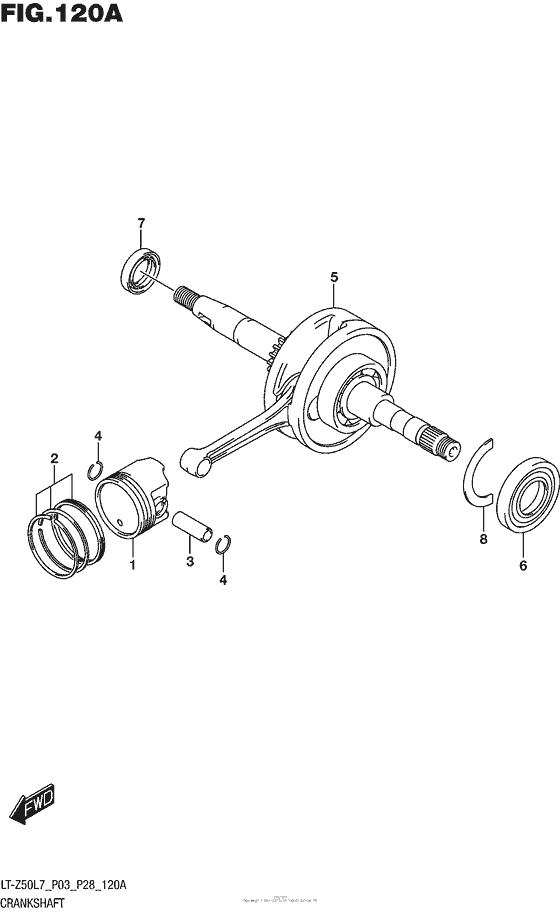

Crankshaft Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-22G02-000 PISTON |
12111-22G02-000 |
from US $28.80 |
||
|
2
|
2
12140-22G00-000 RING SET,PISTON |
12140-22G00-000 |
from US $28.77 |
||
|
3
|
3
12151-22G00-000 PIN,PISTON |
12151-22G00-000 |
from US $4.48 |
||
|
4
|
4
09381-10006-000 CIRCLIP |
09381-10006-000 |
from US $1.07 |
||
|
5
|
5
12200-43G00-000 CRANKSHAFT ASSY |
12200-43G00-000 |
US $398.96 |
||
|
6
|
6
12227-22G00-000 SEAL,CRANKSHAFT OIL,L |
12227-22G00-000 |
from US $5.58 |
||
|
7
|
7
09283-17027-000 SEAL,OIL(17X28X5.5) |
09283-17027-000 |
US $24.97 |
||
|
8
|
8
09390-40003-000 RETAINERRing, thrust |
09390-40003-000 |
US $1.52 |
