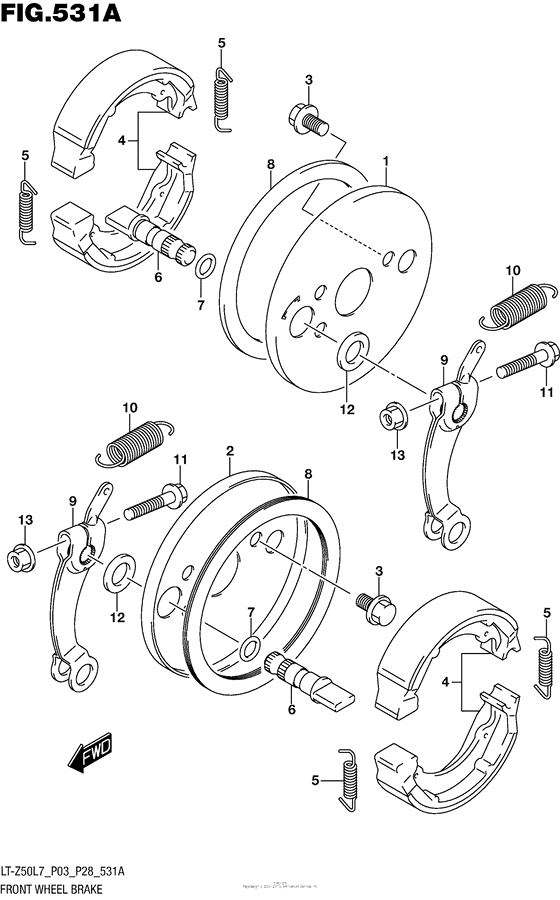

Front Wheel Brake Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54511-43F00-000 PLATE,FR BRAKE,R |
54511-43F00-000 |
from US $8.83 |
||
|
2
|
2
54811-43F00-000 PLATE,FR BRAKE,L |
54811-43F00-000 |
from US $8.83 |
||
|
3
|
3
01547-0610B-000 BOLTBolt, cover |
01547-0610B-000 |
from US $0.77 |
||
|
4
|
4
54400-40810-000 SHOE SET,BRAKE |
54400-40810-000 |
from US $23.87 |
||
|
5
|
5
09443-06029-000 SPRINGSpring, brake shoe |
09443-06029-000 |
from US $3.35 |
||
|
6
|
6
54441-02301-000 CAM,FR BRAKE |
54441-02301-000 |
from US $7.95 |
||
|
7
|
7
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
8
|
8
54124-43F00-000 SEAL,FR BRAKE DUST |
54124-43F00-000 |
from US $15.35 |
||
|
9
|
9
54450-43F00-000 LEVER,FR BRAKE CAM |
54450-43F00-000 |
US $11.22 |
||
|
10
|
10
09443-10044-000 SPRING |
09443-10044-000 |
from US $7.06 |
||
|
11
|
11
09103-05012-000 BOLT(5X27)Bolt, cam lever (5x27) |
09103-05012-000 |
from US $3.25 |
||
|
12
|
12
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
13
|
13
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
