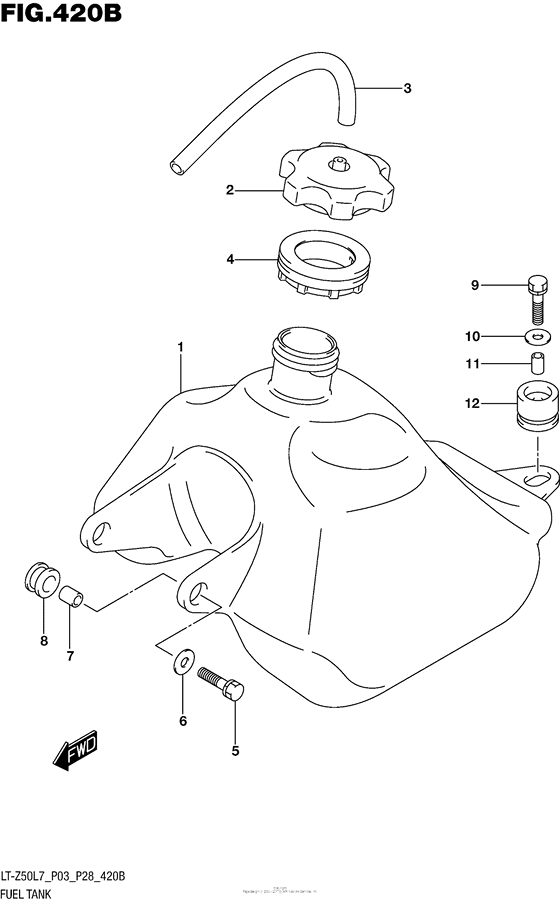

Fuel Tank (Lt-Z50L7 P28) Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-43GA0-000 TANK ASSY,FUEL |
44100-43GA0-000 |
from US $728.64 |
||
|
2
|
2
44200-09AA0-000 CAP ASSY,FUEL TANK FILLERCap assy, fuel tank |
44200-09AA0-000 |
from US $33.49 |
||
|
3
|
3
44411-08H00-000 HOSE,FUEL TANK BREATHER |
44411-08H00-000 |
US $12.51 |
||
|
4
|
4
44261-43GA0-000 RUBBER,FUEL TANK INLET |
44261-43GA0-000 |
from US $5.30 |
||
|
5
|
5
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
7
|
7
09180-06289-000 SPACER(6.5X10X11.5)Spacer (6.8x10x11.5) |
09180-06289-000 |
from US $1.68 |
||
|
8
|
8
09320-10008-000
CUSHION
|
09320-10008-000 |
— | ||
| replacement | |||||
|
8
|
8
09320-10075-000 Cushion |
09320-10075-000 |
from US $1.98 |
||
|
9
|
9
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
10
|
10
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
11
|
11
09180-06267-000 SPACER(6.5X9X12.5) |
09180-06267-000 |
from US $5.59 |
||
|
12
|
12
44541-43F00-000 CUSHION,FUEL TANK RR |
44541-43F00-000 |
from US $3.57 |
||
