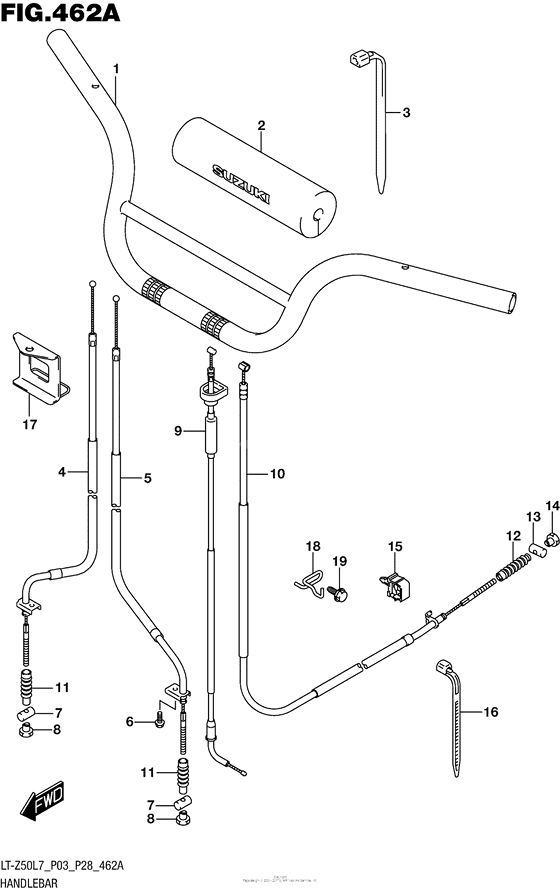

Handlebar Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-43G00-13L HANDLEBAR(SILVER) |
56110-43G00-13L |
from US $68.08 |
||
|
2
|
2
56172-04600-000 PAD,CROSS BAR |
56172-04600-000 |
from US $8.46 |
||
|
3
|
3
09407-18401-000 CLAMP(L:187)Band (l:187) |
09407-18401-000 |
from US $1.92 |
||
|
4
|
4
58110-43G00-000 CABLE,FR BRAKE,R |
58110-43G00-000 |
from US $31.68 |
||
|
5
|
5
58120-43G00-000 CABLE,FR BRAKE,L |
58120-43G00-000 |
from US $31.68 |
||
|
6
|
6
09106-06076-000 BOLT(6X10) |
09106-06076-000 |
from US $5.27 |
||
|
7
|
7
09209-10001-000 PIN,10X19 |
09209-10001-000 |
from US $2.13 |
||
|
8
|
8
09150-05101-000 NUT |
09150-05101-000 |
from US $1.98 |
||
|
9
|
9
58300-43G00-000 Cable assy,throttle |
58300-43G00-000 |
from US $24.93 |
||
|
10
|
10
58510-43G00-000 CABLE,RR BRAKE |
58510-43G00-000 |
from US $46.13 |
||
|
11
|
11
58553-43F00-000 BOOT,BRAKE CABLE |
58553-43F00-000 |
US $20.71 |
||
|
12
|
12
58553-43F10-000 BOOT,FR BRAKE CABLE |
58553-43F10-000 |
US $11.90 |
||
|
13
|
13
09209-10001-000 PIN,10X19 |
09209-10001-000 |
from US $2.13 |
||
|
14
|
14
09150-05101-000 NUT |
09150-05101-000 |
from US $1.98 |
||
|
15
|
15
09403-12412-000 CLAMPClamp, sw lead wire |
09403-12412-000 |
from US $5.08 |
||
|
16-1
|
16-1
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
16-2
|
16-2
09407-12402-000 CLAMP(L:120)Clamp, wiring harness |
09407-12402-000 |
from US $1.98 |
||
|
17
|
17
58620-43F00-000 GUIDE,FR BRAKE CABLE |
58620-43F00-000 |
from US $13.32 |
||
|
18
|
18
58621-43G00-000 GUIDE,RR BRAKE CABLE |
58621-43G00-000 |
US $3.31 |
||
|
19
|
19
09103-06172-000 BOLT(6X12) |
09103-06172-000 |
from US $2.65 |
