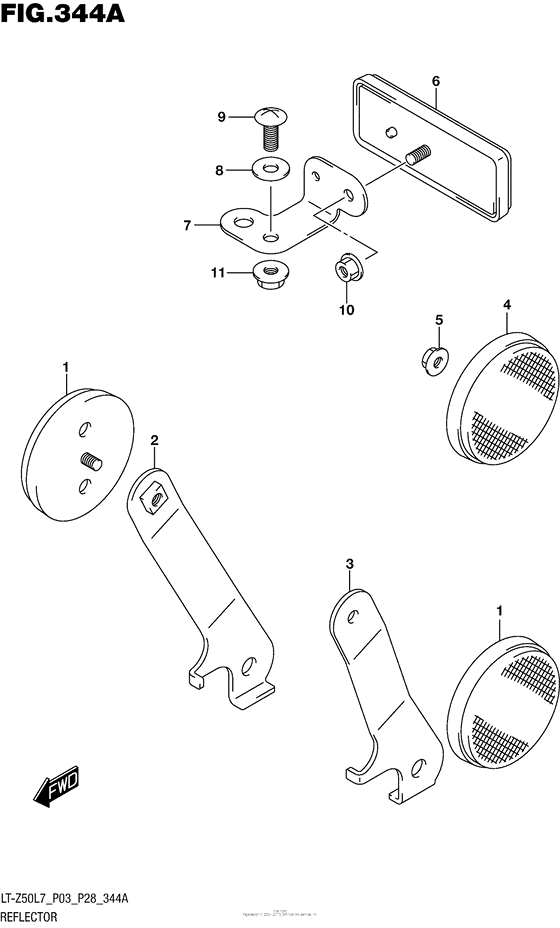

Reflector (Lt-Z50L7 P28) Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-14A11-000 REFLEX REFLECTOR ASSY,FR SIDE |
35950-14A11-000 |
from US $9.58 |
||
|
2
|
2
35956-43F10-000 BRACKET,FR SIDE REFLECTOR,RBracket, fr side, rh |
35956-43F10-000 |
US $5.56 |
||
|
3
|
3
35957-43F10-000 BRACKET,FR SIDE REFLECTOR,LBracket, fr side, lh |
35957-43F10-000 |
US $5.56 |
||
|
4
|
4
35970-14A20-000 REFLECTOR ASSY,RR SIDEReflector assy, side |
35970-14A20-000 |
from US $7.74 |
||
|
5
|
5
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
|
6
|
6
35970-07F01-000 REFLECTOR ASSY,RR |
35970-07F01-000 |
from US $10.42 |
||
|
7
|
7
35974-43G00-000 BRACKET,RR RR |
35974-43G00-000 |
from US $4.64 |
||
|
8
|
8
09160-06153-000 WASHER(6.5X16X1.2) |
09160-06153-000 |
from US $2.24 |
||
|
9
|
9
02142-0616B-000 SCREWScrew, hinge |
02142-0616B-000 |
from US $2.82 |
||
|
10
|
10
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
|
11
|
11
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
