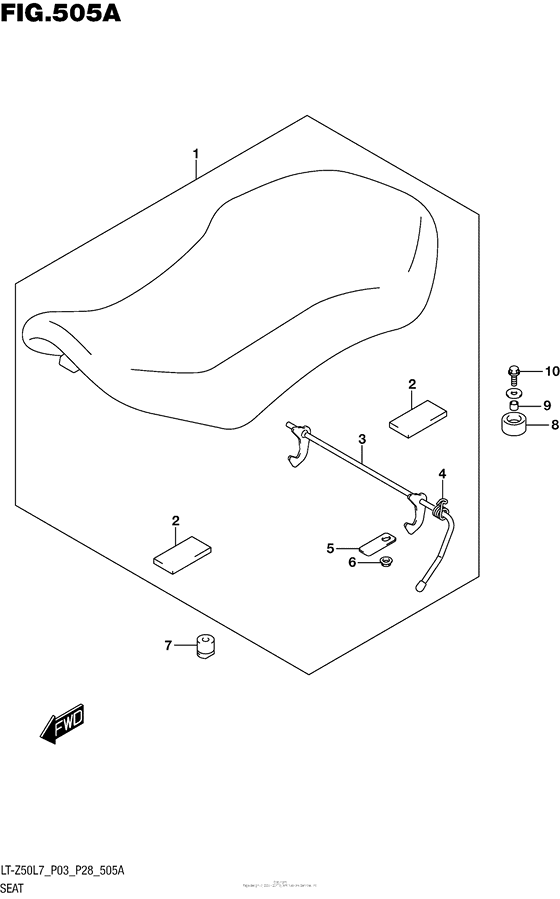

Seat (Lt-Z50L7 P03) Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-43G00-6BY SEAT ASSY |
45100-43G00-6BY |
from US $257.60 |
||
|
2
|
2
45146-43G00-000 CUSHION |
45146-43G00-000 |
US $1.73 |
||
|
3
|
3
45210-43G00-000 CLAMP,SEAT LOCK |
45210-43G00-000 |
US $8.76 |
||
|
4
|
4
45135-43F00-000 SPRING |
45135-43F00-000 |
from US $2.80 |
||
|
5
|
5
45222-43G00-000 PLATE,SEAT LOCK |
45222-43G00-000 |
from US $2.80 |
||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
45141-43G00-000 CUSHION,SEAT MOUNT FRCushion, seat mount front |
45141-43G00-000 |
from US $3.97 |
||
|
8
|
8
45141-09F00-000 CUSHION,MOUNTCushion, seat mount |
45141-09F00-000 |
from US $2.94 |
||
|
9
|
9
09180-06261-000 SPACER(6.5X9X8) |
09180-06261-000 |
from US $1.78 |
||
|
10
|
10
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
