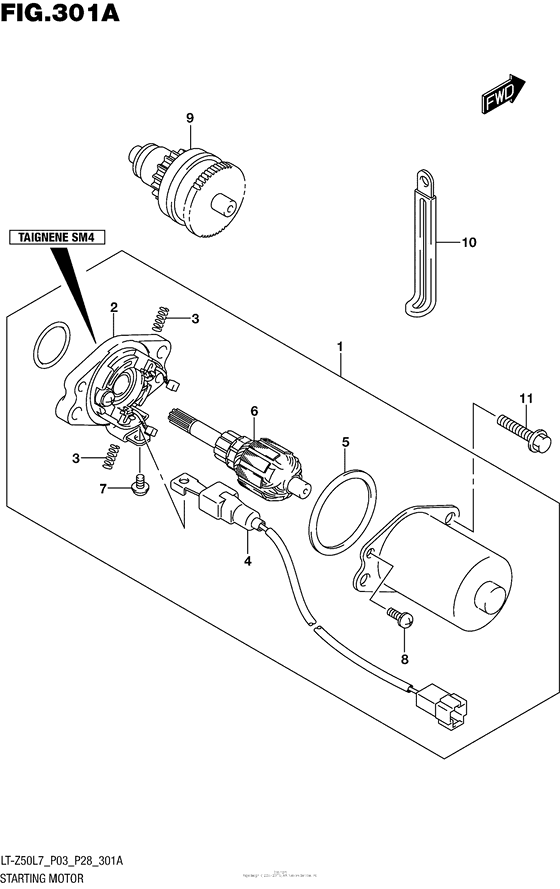

Starting Motor Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-22G11-000
MOTOR ASSY,STARTING
|
31100-22G11-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-22G00-000 MOTOR ASSY,STARTING |
31100-22G00-000 |
from US $209.76 |
||
|
2
|
2
31130-22G10-000
HOLDER ASSY,BRUSH
|
31130-22G10-000 |
— | ||
| replacement | |||||
|
2
|
2
31130-37B01-000 HOLDER ASSY,BRUSH |
31130-37B01-000 |
US $49.31 |
||
|
3
|
3
31135-22G10-000
SPRING,BRUSH
|
31135-22G10-000 |
— | ||
| replacement | |||||
|
3
|
3
31135-47A00-000 SPRING,BRUSH |
31135-47A00-000 |
US $2.13 |
||
|
4
|
4
31142-22G10-000 WIRE,LEAD |
31142-22G10-000 |
from US $35.88 |
||
|
5
|
5
31157-22G10-000
GASKET
|
31157-22G10-000 |
— | ||
| replacement | |||||
|
5
|
5
31157-03A00-000 GASKET |
31157-03A00-000 |
from US $4.38 |
||
|
6
|
6
31311-22G10-000
ARMATURE ASSY
|
31311-22G10-000 |
— | ||
| replacement | |||||
|
6
|
6
31311-37B01-000 ARMATURE ASSYArmature (na) |
31311-37B01-000 |
from US $103.04 |
||
|
7
|
7
02112-3406A-000 SCREW |
02112-3406A-000 |
from US $0.76 |
||
|
8
|
8
02112-3410A-000 SCREW |
02112-3410A-000 |
from US $2.99 |
||
|
9
|
9
31370-22G11-000
PINION ASSY,STARTING
|
31370-22G11-000 |
— | ||
| replacement | |||||
|
9
|
9
31370-22G00-000 PINION ASSY,STARTING MOTOR |
31370-22G00-000 |
from US $82.40 |
||
|
10
|
10
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
10
|
10
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
11
|
11
01547-0625B-000 BOLT |
01547-0625B-000 |
from US $0.91 |
||
