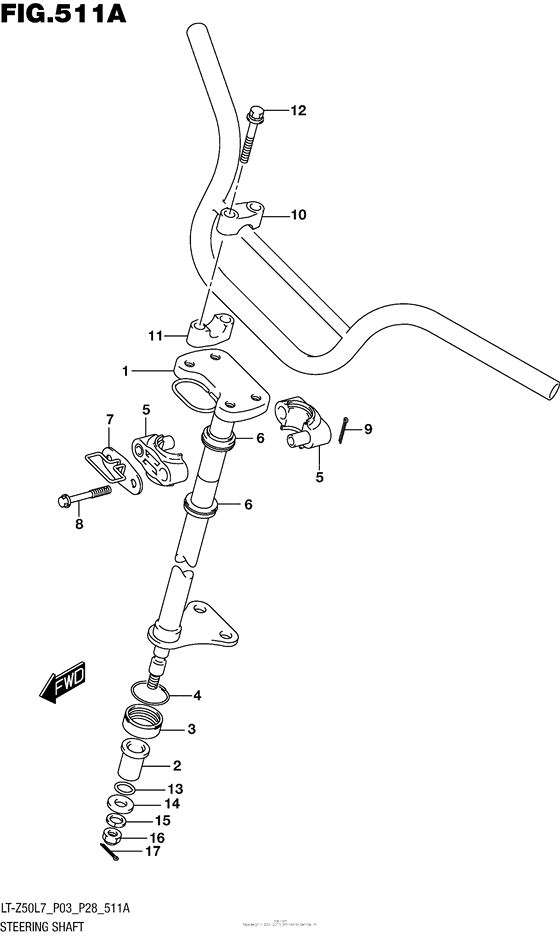

Steering Shaft Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51650-43F00-000 SHAFT,STEERING |
51650-43F00-000 |
from US $97.89 |
||
|
2
|
2
51661-40B00-000 BUSH,STEERING SHAFT LWR |
51661-40B00-000 |
from US $6.69 |
||
|
3
|
3
51662-43FK0-000 SEAL,STEERING SHAFT DUST |
51662-43FK0-000 |
from US $4.31 |
||
|
4
|
4
09380-31002-000 RING,SNAP |
09380-31002-000 |
from US $3.32 |
||
|
5
|
5
51670-18902-000 HOLDER,STEERING SHAFT |
51670-18902-000 |
from US $8.46 |
||
|
6
|
6
51678-18900-000 DUST SEAL,STEERING SHAFT |
51678-18900-000 |
from US $3.97 |
||
|
7
|
7
51680-43F00-000 REINF STEERING HOLDER |
51680-43F00-000 |
US $5.92 |
||
|
8
|
8
09103-08085-000 BOLT(8X60) |
09103-08085-000 |
from US $10.29 |
||
|
9
|
9
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
10
|
10
56211-04200-000 HOLDER,HANDLEBAR |
56211-04200-000 |
from US $8.76 |
||
|
11
|
11
56211-43G00-000 HOLDER,HANDLEBAR |
56211-43G00-000 |
from US $13.06 |
||
|
12
|
12
01550-0845B-000 BOLT |
01550-0845B-000 |
from US $1.06 |
||
|
13
|
13
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
14
|
14
09160-10128-XC0 WASHER(10.5X25X3.2) |
09160-10128-XC0 |
from US $3.35 |
||
|
15
|
15
09162-10010-000 WASHER,LOCKWasher, rod end |
09162-10010-000 |
from US $5.07 |
||
|
16
|
16
08319-2110B-000 NUT |
08319-2110B-000 |
US $14.40 |
||
|
17
|
17
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
