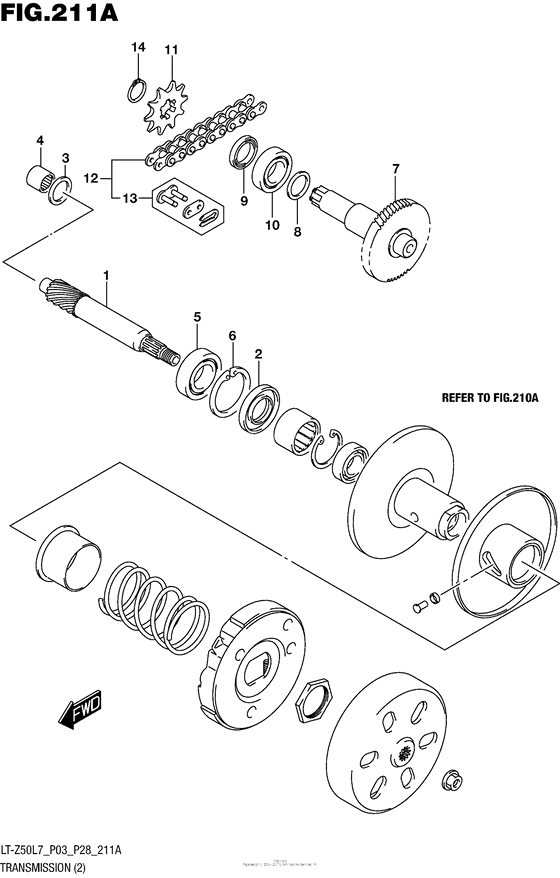

Transmission (2) Diagram Suzuki LT-Z50 QuadSport
- Model code
- LT-Z50L7
- Engine Capacity
- 49
- Year
- 2017
- Sales region
- US/Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24121-22G00-000 SHAFT,COUNTERShaft, counter (nt:11) |
24121-22G00-000 |
from US $53.36 |
||
|
2
|
2
09283-17016-000 SEAL,OIL(17X40X5) |
09283-17016-000 |
from US $5.47 |
||
|
3
|
3
09181-13002-000 SHIM(13X22X0.5) |
09181-13002-000 |
from US $3.86 |
||
|
4
|
4
09263-12024-000 BEARING(12X16X10)Bearing, cl rlse upr |
09263-12024-000 |
from US $6.23 |
||
|
5
|
5
08110-62030-000 BearingBearing, counter shaft, l |
08110-62030-000 |
from US $8.16 |
||
|
6
|
6
08331-41406-000 CIRCLIP |
08331-41406-000 |
from US $1.68 |
||
|
7
|
7
24131-22G10-000 SHAFT,DRIVEShaft, drive (nt:47) |
24131-22G10-000 |
from US $55.57 |
||
|
8
|
8
09181-17139-000 SHIM(17X24X1)Washer (17x24x1.0) |
09181-17139-000 |
from US $4.91 |
||
|
9
|
9
09283-17026-000 SEAL,OIL(17X27X6) |
09283-17026-000 |
from US $4.56 |
||
|
10
|
10
08110-62030-000 BearingBearing, counter shaft, l |
08110-62030-000 |
from US $8.16 |
||
|
11
|
11
27511-43G00-000 SPROCKET,ENGINE |
27511-43G00-000 |
from US $13.77 |
||
|
12
|
12
27600-22G00-082 CHAIN,DRIVE (DID415S) |
27600-22G00-082 |
from US $37.58 |
||
|
13
|
13
27620-22G00-000 JOINT SET,CHAIN |
27620-22G00-000 |
from US $6.16 |
||
|
14
|
14
08331-31169-000 CIRCLIP |
08331-31169-000 |
from US $0.91 |
